Evaluation of the Life Limit of Standard Hardness Block HRC64 at Ambient Temperature

Abstract:

The life limit of the standard hardness block of HRC64 made from JIS-SUJ2 steel was evaluated. The HRC64 specimens were annealed at temperatures ranging from 55 to 200C for about 104 h in maximum. The micro-Vickeres hardness decreased with the annealing time at all temperatures after some incubation periods. Transmission electron microscopy (TEM) showed that the microstructure of the specimen before annealing was composed of primary cementite particles, carbide and martensite matrix. After annealing, fine cementite particles of about few tens of nanometers in size were observed. The decrease in hardness during annealing was caused by the precipitation of the cementite. The life limit keeping the standard hardness value at ambient temperature was estimated to be about 3.5-4 years based on extrapolation of the annealing curves at various temperatures.

You might also be interested in these eBooks

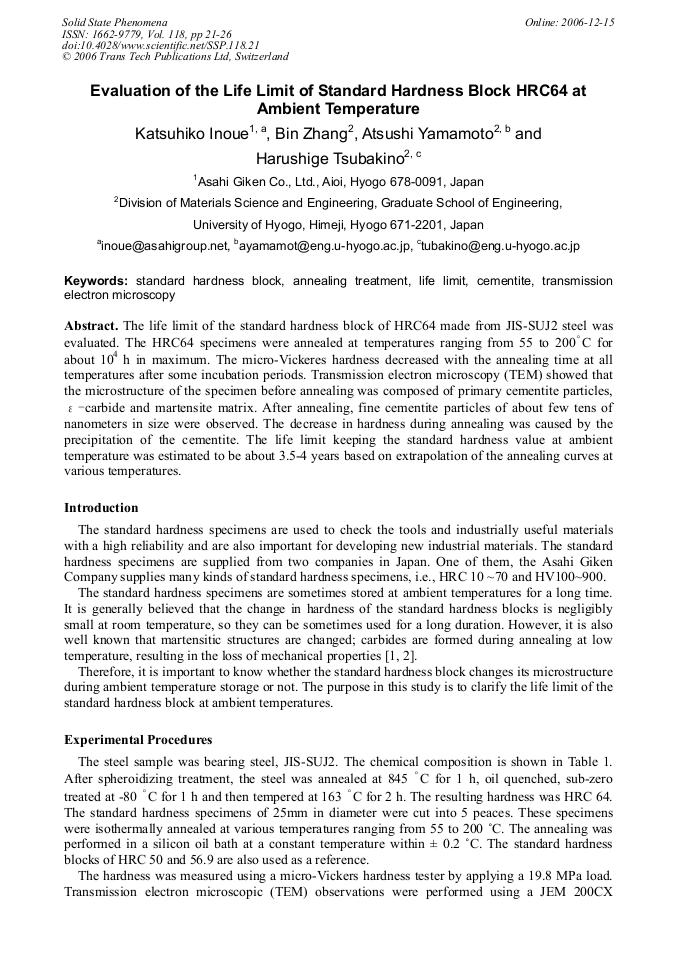

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 118)

Pages:

21-26

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.118.21

Citation:

Cite this paper

Online since:

December 2006

Authors:

Katsuhiko Inoue, Bin Zhang, Atsushi Yamamoto, Harushige Tsubakino

Keywords:

Annealing Treatment, Cementite, Life Limit, Standard Hardness Block, TEM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. Krauss, Phase Transformations in Ferrous Alloys, ed. by A.R. Marder and J.I. Goldstein, Metal. Soc. AIME, (1984), p.101.

Google Scholar

[2] R.W.K. Honeycombe, Steels, Microstructure and Properties, Edward Arnold, (1981), p.140.

Google Scholar

[3] H. Tsubakino and H.I. Aaronson, Metal. Trans. A, Vol. 18A (1987), p. (2047).

Google Scholar

[4] W.D. Callister, Jr, Materials Science and Engineering, John Wiley & Sons, Inc, Third Ed., (1985), p.89.

Google Scholar

[5] R.W. Cahn, Phyical Metallurgy, North-Holland Publishing Co., (1970), p.589.

Google Scholar

[6] Data Book in Metals, Ed. by Jpn. Inst. Metals, Maruzen, Third Ed., (2000), p.20. α' θ twined α.

Google Scholar

[101] α.

Google Scholar

[1] θ (b) (d) (a) (c) Fig. 6 TEM micrographs of HRC64 annealed at 200˚C for 447 h. (a) bright image, (b) dark image indicating the formation of �, (c) SADP and (d) key diagram. 200 nm.

Google Scholar

[7] K.H. Jack, J. Iron Steel Inst., Vol. 169 (1951), p.26.

Google Scholar

[8] Interpretation of Electron Diffraction Patterns, eds. by K.W. Andrews, D.J. Dyson and S.R. Keown, Plenunm Press, New York, (1969), p.151.

Google Scholar
