The Properties of Ti-Doped ZnO Films Before and After Annealing in the Different Atmosphere

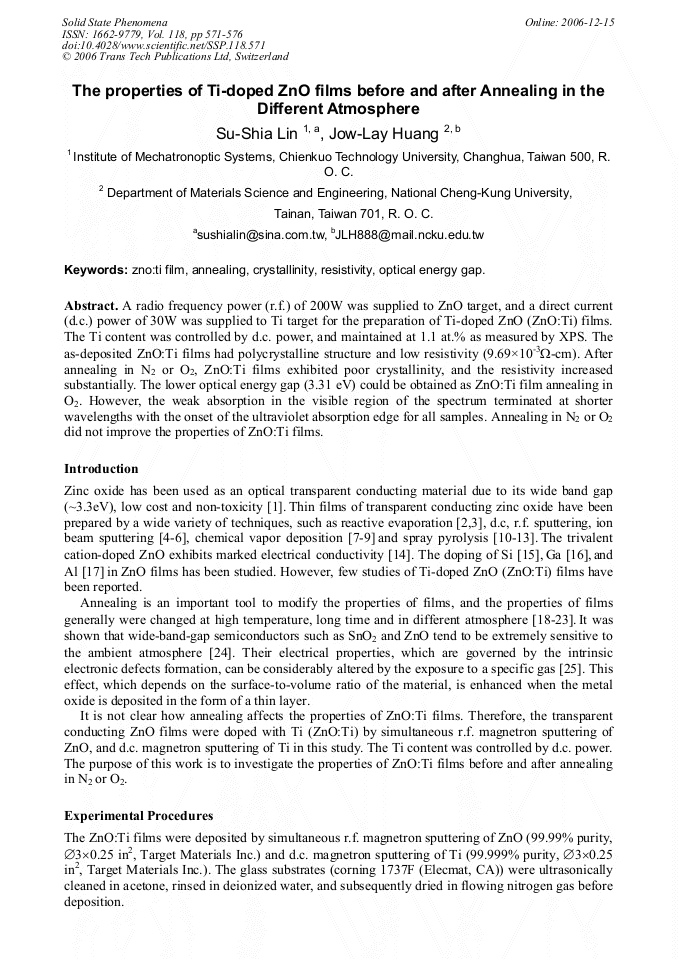

Article Preview

Abstract:

A radio frequency power (r.f.) of 200W was supplied to ZnO target, and a direct current (d.c.) power of 30W was supplied to Ti target for the preparation of Ti-doped ZnO (ZnO:Ti) films. The Ti content was controlled by d.c. power, and maintained at 1.1 at.% as measured by XPS. The as-deposited ZnO:Ti films had polycrystalline structure and low resistivity (9.69×10-3-cm). After annealing in N2 or O2, ZnO:Ti films exhibited poor crystallinity, and the resistivity increased substantially. The lower optical energy gap (3.31 eV) could be obtained as ZnO:Ti film annealing in O2. However, the weak absorption in the visible region of the spectrum terminated at shorter wavelengths with the onset of the ultraviolet absorption edge for all samples. Annealing in N2 or O2 did not improve the properties of ZnO:Ti films.

You might also be interested in these eBooks

Heat Treatment of Materials

Info:

Periodical:

Solid State Phenomena (Volume 118)

Pages:

571-576

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.118.571

Citation:

Cite this paper

Online since:

December 2006

Authors:

Su Shia Lin, Jow Lay Huang

Keywords:

Annealing, Crystallinity, Optical Energy Gap, Resistivity, ZnO:Ti Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2006 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] K. L. Chopra, S. Major and D. K. Pandya, Thin Solid Films 102, 1 (1983).

[2] P. Petrou, R. Singh and D. E. Brodie, Appl. Phys. Lett. 35, 930 (1979).

[3] J. H. Morgan and D. E. Brodie, Can. J. Phys. 60, 1387 (1982).

[4] P. S. Nayar and A. Catalano, Appl. Phys. Lett. 39, 105 (1981).

[5] J. B. Webb, D. F. Williams and M. Buchanan, Appl. Phys. Lett. 39, 640 (1981).

[6] O. Caporaletti, Solid State Commun. 42, 109 (1982).

[7] M. Ristov, R. J. Sinadinovski, I. Grozdanov and M. Mitreski, Thin Solid Films 124, 85(1985).

DOI: 10.1016/0040-6090(87)90249-5

[8] O. F. Khan and P. O'Brien, Thin Solid Films 173, 95 (1989).

[9] A. P. Roth and D. F. Williams, J. Appl. Phys. 52, 6685 (1981).

[10] E. Shanthi, V. Dutt, A. Banerjee and K. L. Chopra, J. Appl. Phys. 51, 6243 (1980).

[11] J. Aranovich, A. Ortiz and R. H. Bube, J. Vac. Sci. Technol. 16, 994 (1979).

[12] C. Eberspacher, A. L. Fahrenbruch and R. H. Bube, Thin Solid Films 136, 1 (1986).

[13] W. S. Lau and S. J. Fonash, J. Electron. Mater. 16, 141 (1978).

[14] G. J. Exarhos, S. K. Sharma, Thin Solid Films 270, 27 (1995).

[15] T. Minami, H. Sato, H. Nanto, and S. Takata, Jpn. J. Appl. Phys. 125, L776 (1986).

[16] B. H. Choi and H. B. Im, Thin Solid Films 193/194, 712 (1990).

[17] G. A. Hirata, J. Mckittrik, T. Cheeks, J. M. Siqueiros, J. A. Diaz, O. Contreras, O. A. Lopez, Thin Solid Films 288, 29 (1996).

DOI: 10.1016/s0040-6090(96)08862-1

[18] D. H. Zhang, D. E. Brodie, Thin Solid Films 238, 95 (1994).

[19] S. A. Studenikin, Nickolay Golego, M. Cocivera, J. Appl. Phys. 87, 2413 (2000).

[20] Y. Igasaki, H. Saito, Thin Solid Films 199, 223 (1991).

[21] F. H. Lu, H. Y. Chen, Thin Solid Films 355-356, 374 (1999).

[22] P. Nunes, D. Costa, E. Fortunato, R. Martins, Vacuum 64, 293 (2002).

[23] A. Moustaghfir, E. Tomasella, S. Ben Amor, M. Jacquet, J. Cellier, T. Sauvage, Surface and Coatings Technology 174-175, 193 (2003).

DOI: 10.1016/s0257-8972(03)00417-1

[24] Z. Szklarski, K. Zakrzewska, Thin Solid Films 174, 269 (1989).

[25] G. N. Advani, A. B. Jordan, J. Electron. Mater. 9, 29 (1980).

[26] T. L. Tansley, D. F. Neely, Thin Solid Films 121, 95 (1984).

[27] Putnis, Introduction to Mineral Sciences, pp.100-106, Cambridge University Press, U.K. (1992).

[28] D. H. Zhang, D. E. Brodie, Thin Solid Films 238, 95 (1994).

[29] D. V. Morgan, Y.H. Aliyu, R.W. Bunce, A. Salehi, Thin Solid Films 312, 268 (1998).

[30] S. Ghosh, A. Sarkar, S. Bhattacharya, S. Chaudhuri, A.K. Pal, J. Crystal Growth 108, 534 (1991).

[31] W. Tang, D. C. Cameron, Thin Solid Films 238, 83 (1994).

[32] I. K. El Zawawi , R. A. Abd Alla , Thin Solid Films 339, 314 (1999).

[33] B. E. Sernelius, K. F. Berggren, Z. C. Jin, I. Hamberg, and C. G. Granqvist, Physical Review B 37, 10244 (1988).

[34] E. Mollwo, in R.G. Breckenridge, B.R. Russell, E.E. Hahn (eds. ), Proc. Photoconductivity Conf., p.509, Wiley, New York (1954).
