Development of Robust Microvavles for Compact Robust Pumps/Hydraulic Actuators

Abstract:

In situ UV-LIGA assembled robust micro check valves with large flow rates (>10 ml/s, displacement related), high-pressure support ability (>10 MPa) and high operational frequencies (>10 kHz) made of nano-structured nickel were presented in this paper. The microvalve consists of an array of 80 single micro valves to achieve the required flow rates. Test results show that the forward flow rate is about 19 ml/s under pressure of 90Psi. The backward flow rate is negligible. The reliability of the valve is ensured by the valve design and nanostructured nickel realized. The tested tensile strength of a nano structured nickel is about 1GPa. The strength of SU-8 is 50MPa, which is more than 50% higher that fabricated with a standard process.

You might also be interested in these eBooks

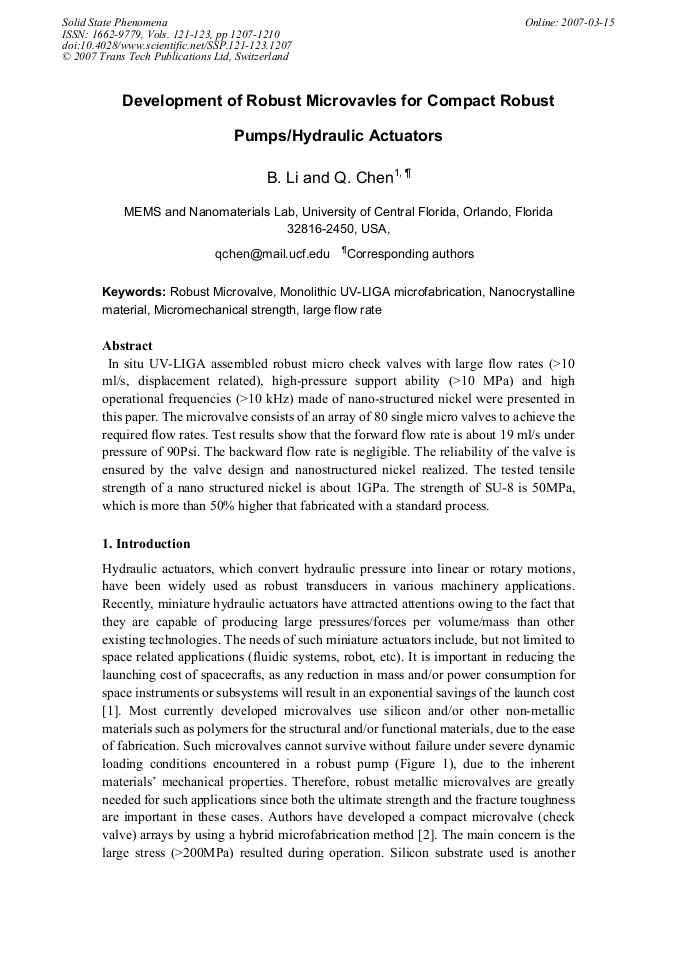

View Preview

Info:

Periodical:

Solid State Phenomena (Volumes 121-123)

Pages:

1207-1210

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.121-123.1207

Citation:

Cite this paper

Online since:

March 2007

Authors:

B. Li, Q. Chen

Keywords:

Large Flow Rate, Micromechanical Strength, Monolithic UV-LIGA Microfabrication, Nanocrystalline Material, Robust Microvalve

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] I. Chakraboty, W.C. Tang, D.P. Bame, T.K. Tang, MEMSD micro-valve for space applications, Sensors and Actuators 83 (2000) 188-193.

DOI: 10.1016/s0924-4247(99)00382-9

Google Scholar

[2] Bo Li and Quanfang Chen, Development of Large Flow Rate, Robust, Passive Micro Check Valves for Compact Piezoelectrically Actuated Pumps, Sensors and Actuators A: Physical, Volume 117, Issue 2, 14 January 2005, Pages 325-330.

DOI: 10.1016/j.sna.2004.06.029

Google Scholar

[3] H. Lorenz, M. Despont, M. Fahrni, N. LaBianca, P. Vettiger, and P. Renaud , SU-8: a low-cost negative resist for MEMS, J. Micromech. Microeng 7, (1997), pp.121-124.

DOI: 10.1088/0960-1317/7/3/010

Google Scholar
