Microstructure and Compression Properties of Al-8Fe-2Mo-2V-1Zr Alloys Produced by Extrusion of Melt-Spun Powders

Taek Kyun Jung; T.J. Sung; Mok Soon Kim; W.Y. Kim

doi:10.4028/www.scientific.net/SSP.124-126.1521

Paper Titles

MC Carbide Decomposition during Thermal Exposure of Polycrystalline Ni-Base Superalloys
p.1505

Properties of Preferred Orientation of TiO₂ Thin Film on Plasma Pretreated Substrate
p.1509

Effect of Heat Treatment on Characterizations of TiCrN Coated Layer by R.F Magnetron Sputtering
p.1513

Microstructure and Mechanical Properties of Mg-Zn-Y Alloys Fabricated by Rapid Solidification and Spark Plasma Sintering Processes
p.1517

Microstructure and Compression Properties of Al-8Fe-2Mo-2V-1Zr Alloys Produced by Extrusion of Melt-Spun Powders
p.1521

Aqueous Dispersion of ZrB₂ Powder - Effect of Surface Corrosion and Dispersant
p.1525

Growth Model of Circumferential Outer Diameter Stress Corrosion Crack in Retired Steam Generator Tube of Kori 1 Nuclear Power Plant
p.1529

Effect of Delta Ferrite on Corrosion Resistance of Type 316L Stainless Steel in Acidic Chloride Solution by Micro-Droplet Cell
p.1533

A Study on Corrosion-Resistant Properties of Unleaded Bi-Containing Automotive Epoxy Primers
p.1537

HomeSolid State PhenomenaSolid State Phenomena Vols. 124-126Microstructure and Compression Properties of...

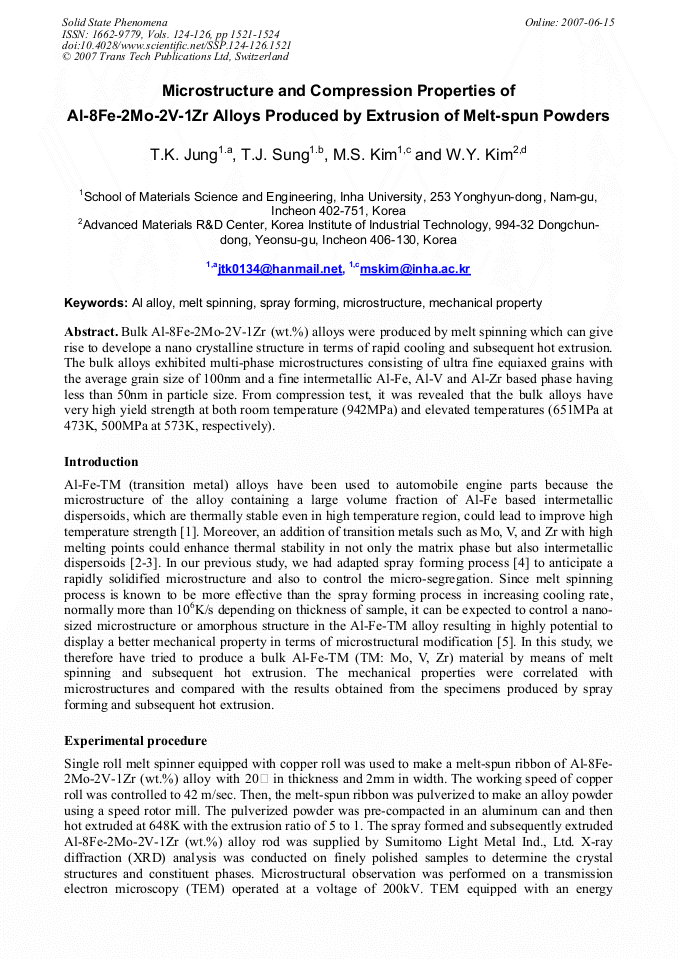

Microstructure and Compression Properties of Al-8Fe-2Mo-2V-1Zr Alloys Produced by Extrusion of Melt-Spun Powders

Abstract:

Bulk Al-8Fe-2Mo-2V-1Zr (wt.%) alloys were produced by melt spinning which can give rise to develope a nano crystalline structure in terms of rapid cooling and subsequent hot extrusion. The bulk alloys exhibited multi-phase microstructures consisting of ultra fine equiaxed grains with the average grain size of 100nm and a fine intermetallic Al-Fe, Al-V and Al-Zr based phase having less than 50nm in particle size. From compression test, it was revealed that the bulk alloys have very high yield strength at both room temperature (942MPa) and elevated temperatures (651MPa at 473K, 500MPa at 573K, respectively).
