Structure of Low Temperature Nitrided/Oxidized Layer Formed on NiTi Shape Memory Alloy

Abstract:

Structure of the nitride-oxide surface layers, formed using glow discharge technique at low temperature (between 200 and 380°C) changing the parameters of the process, was examined applying X-ray diffraction as well as transmission electron microscopy. The phase analysis was supported by results obtained from XPS measurement. Obtained results have shown that low temperature nitriding/oxiding produced the thin layers (18 ÷ 30 nm in thickness), which consist of titanium nitride and oxide phase. Low amount of the nickel-titanium oxide was also identified in the layer produced at higher temperature. Decrease of nitriding/oxidizing temperature below 300oC cause that between nitride-oxide surface layer and NiTi alloy did not create the intermediate layer of Ni3Ti phase. The results were verified and confirmed by observation carried out using high resolution electron microscopy. The corrosion properties of such coatings were tested in the physiological Tyrod’s solution using the cyclic potentiodynamic polarization method.

You might also be interested in these eBooks

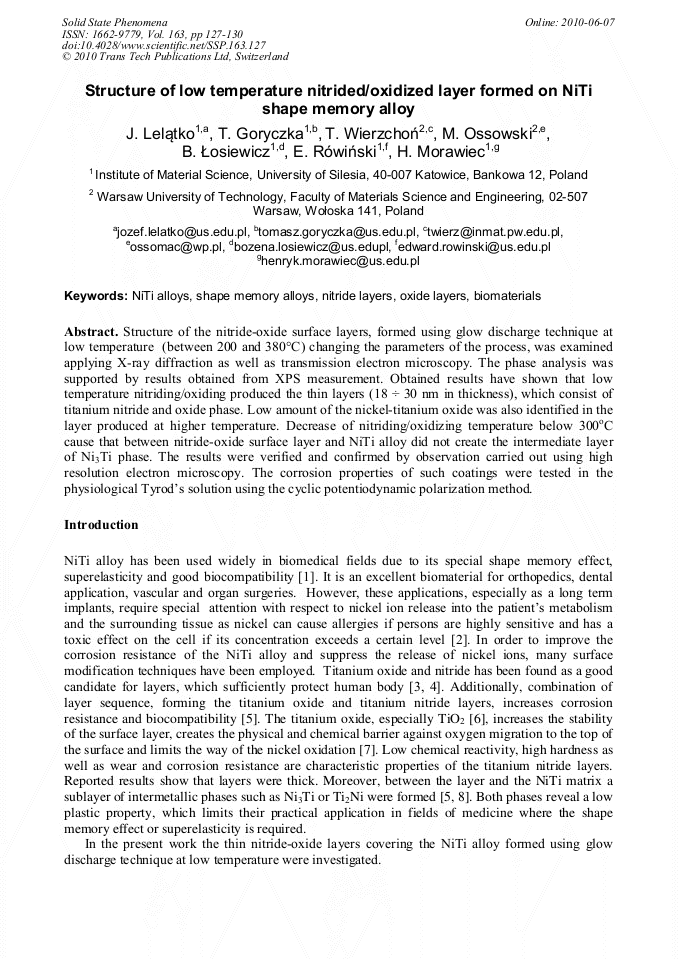

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 163)

Pages:

127-130

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.163.127

Citation:

Cite this paper

Online since:

June 2010

Authors:

Józef Lelątko, Tomasz Goryczka, Tadeusz Wierzchoń, M. Ossowski, Bożena Łosiewicz, Edward Rówiński, Henryk Morawiec

Keywords:

Biomaterial, NiTi Alloy, Nitride Layers, Oxide Layer, Shape Memory Alloy Actuator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C.M. Wayman: J. Met. Vol. 6 (1980), p.129.

Google Scholar

[2] G.C. McKay, R. Mac Macnair, C. MacDonald and M.H. Grant: Biomaterials Vol. 17 (1996), p.1339.

Google Scholar

[3] D. Starosvetsky and I. Gotman: Surf. and Coat. Tech. Vol. 148 (2001), p.268.

Google Scholar

[4] Y. Fu, X. Wu, Y. Wang, B. Li and S. Yang: App. Surf. Sci. Vol. 157 (2000), p.167.

Google Scholar

[5] T. Goryczka, P. Pączkowski, J. Lelątko, T. Wierzchoń and H. Morawiec: Solid State Phenomena Vol. 130 (2007), p.151.

DOI: 10.4028/www.scientific.net/ssp.130.151

Google Scholar

[6] J. Lausmaa, Mattsson, L. Rolander, U. Kasemo: Mat. Res. Soc. Symp. Proc. Vol. 55 (1986), p.351.

Google Scholar

[7] R.D. Barrett, S. Bishara, J. Quinn: Am. J. Orthod. Dentofac. Orthop. Vol. 103 (1993), p.8.

Google Scholar

[8] J. Lelatko, P. Paczkowski, T. Wierzchoń, H. Morawiec: J. Microscopy Vol. 223, (2006), pp.234-50 nm 3 nm a b Ni3Ti NiTi ~ 40 nm.
