The High Cyclic Failure Analysis of Welded Joints of CT Specimens

Rimantas Stonkus; Mindaugas Kazimieras Leonavičius

doi:10.4028/www.scientific.net/SSP.165.183

Paper Titles

The Characteristic of Surface Layers on Austenitic Stainless Steel after Glow-Discharge Nitriding Process
p.165

The Effect of Fabrication Method of Cobalt Base Clad Layer on Air Oxidation
p.169

Cobalt Base Clad Layer Resistance on the Corrosion under Low Sulfur Pressure
p.173

The Influence of Plastic Strain on the Corrosive Properties of Plasma Sprayed Intermetallic NiAl and Ni₃Al Coatings
p.177

The High Cyclic Failure Analysis of Welded Joints of CT Specimens
p.183

Influence of Cavitation Intensity on the Relative Cavitation Resistance of Laser Processed C45 Carbon Steel
p.189

Cavitation Erosion Resistance of Austenitic Microstructure Created by Laser Beam
p.195

Assessment of FSW Welds Made of Aluminum Alloy AW7075-T651
p.201

Magnetic Properties of Co₂O_n (n = 1-9, 12) Nanoparticles
p.207

HomeSolid State PhenomenaSolid State Phenomena Vol. 165The High Cyclic Failure Analysis of Welded Joints...

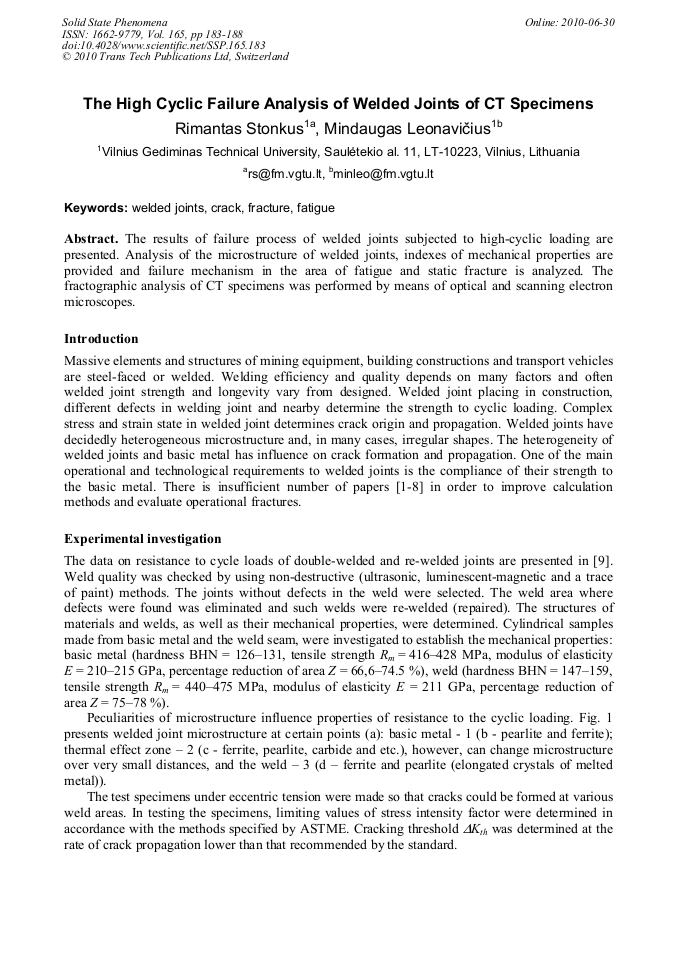

The High Cyclic Failure Analysis of Welded Joints of CT Specimens

Abstract:

The results of failure process of welded joints subjected to high-cyclic loading are presented. Analysis of the microstructure of welded joints, indexes of mechanical properties are provided and failure mechanism in the area of fatigue and static fracture is analyzed. The fractographic analysis of CT specimens was performed by means of optical and scanning electron microscopes.

You might also be interested in these eBooks

Mechatronic Systems and Materials: Materials Production Technologies

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 165)

Pages:

183-188

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.165.183

Citation:

Cite this paper

Online since:

June 2010

Authors:

Rimantas Stonkus, Mindaugas Kazimieras Leonavičius

Keywords:

Crack, Fatigue, Fracture, Weld Joint

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Ravi, V. Balasubramanian, S. Nemat Nasser. Effect of �otch Location on Fatigue Life Prediction of Strength Mismatched HSLA Steel Weldments. J. Mater. Sci. Technol., Vol. 20 No. 2 (2004), pp.129-135.

DOI: 10.1016/j.matdes.2003.09.016

Google Scholar

[2] S.M. Jones, V. Svalbonas: Large-size crushing mills. Mining industry (2003), (in Russian).

Google Scholar

[3] AWS D 1. 1: 2000. An American National Standard. Structural Welding Code - Steel (1999).

Google Scholar

[4] V. A. Vinokurov, S.A. Kurkin, G.A. Nikolajev: Welded structures. Fracture mechanics and fitness for purpose criteria (Mashinostrojenije, Moscow 1996), 253 p. (in Russian).

Google Scholar

[5] V. Panasiuk, V., Savruk, M. P., Jarema, S. J., Makhutov, O. N., Romaniv, O. N., Andreikiv, A. E., et al: Fracture mechanics and strength of materials, Vol. 1-488 p; Vol. 2-620 p; Vol. 3-436 p., Vol. 4-680 p. (Naukova dumka, Kiev, 1988-1990) (in Russian).

Google Scholar

[6] J. L. Otegui, A. Rivas, C. Manfredi, C. Martins: Weld failure in sleeve reinforcements of pipline. Engineering failure analysis No 8 (2001), pp.57-73.

DOI: 10.1016/s1350-6307(99)00049-7

Google Scholar

[7] L.W. Tsay, T.S. Chem, G.Y. Gau, J.R. Yang: Microstructures and fatigue crack growth of EH36 TMPC steel weldment. Int. J. of Fatigue, No 21 (1999), pp.867-864.

DOI: 10.1016/s0142-1123(99)00021-3

Google Scholar

[8] I. Vishniakas: Special features of breaking the welded connections of the ferritic steels. Mechanika Nr. 3(71) ISSN 1392-1207 (Technologija, Kaunas 2008), pp.66-71.

Google Scholar

[9] R. Stonkus, M. Leonavičius, A. Krenevičius: Cracking threshold of the welded joints subjected to high-cyclic loading. Mechanika Nr. 2 (76) ISSN 1392-1207 (Technologija, Kaunas 2009), pp.5-10.

DOI: 10.5755/j01.mech.17.2.325

Google Scholar
