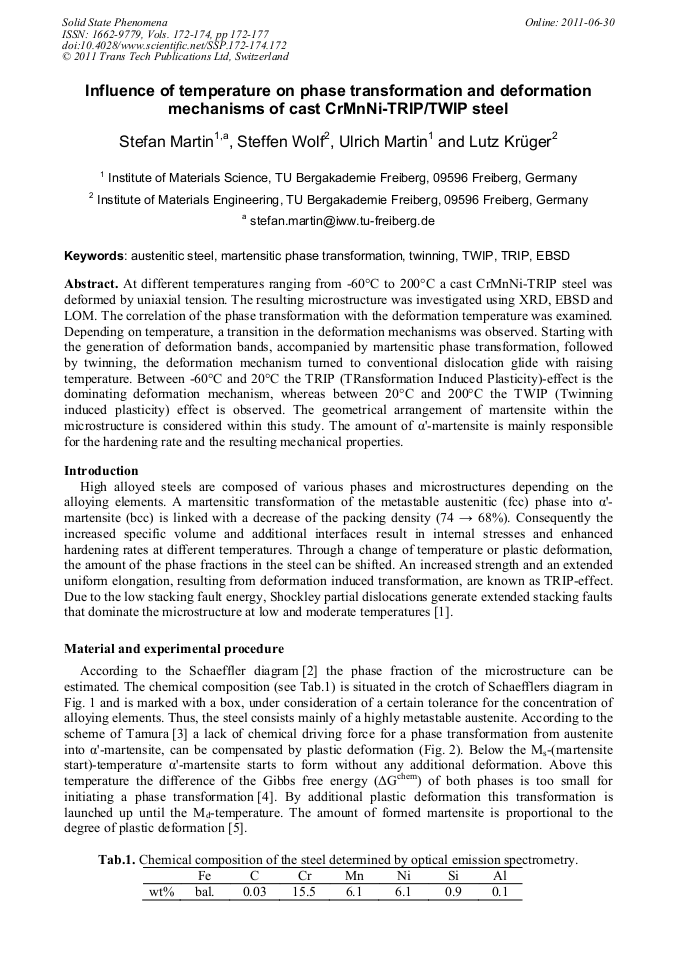

At different temperatures ranging from ‑60°C to 200°C a cast CrMnNi-TRIP steel was deformed by uniaxial tension. The resulting microstructure was investigated using XRD, EBSD and LOM. The correlation of the phase transformation with the deformation temperature was examined. Depending on temperature, a transition in the deformation mechanisms was observed. Starting with the generation of deformation bands, accompanied by martensitic phase transformation, followed by twinning, the deformation mechanism turned to conventional dislocation glide with raising temperature. Between -60°C and 20°C the TRIP (TRansformation Induced Plasticity)-effect is the dominating deformation mechanism, whereas between 20°C and 200°C the TWIP (Twinning induced plasticity) effect is observed. The geometrical arrangement of martensite within the microstructure is considered within this study. The amount of α'-martensite is mainly responsible for the hardening rate and the resulting mechanical properties.
