Isothermal Mechanical Spectroscopy in Equiatomic CuZr Alloy

Abstract:

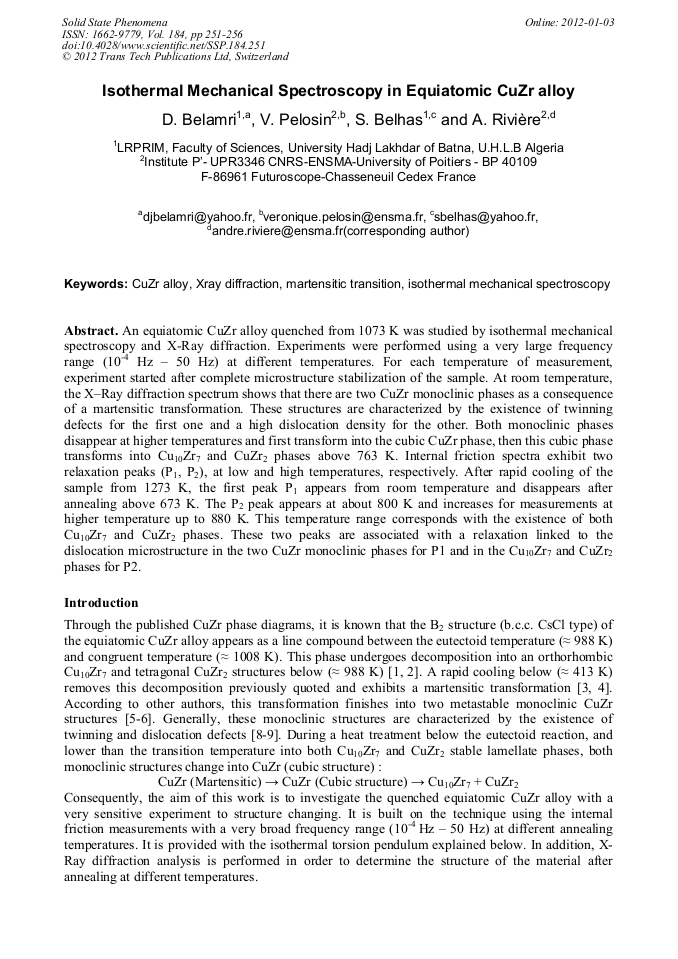

An equiatomic CuZr alloy quenched from 1073 K was studied by isothermal mechanical spectroscopy and X-Ray diffraction. Experiments were performed using a very large frequency range (10^-4 Hz – 50 Hz) at different temperatures. For each temperature of measurement, experiment started after complete microstructure stabilization of the sample. At room temperature, the X–Ray diffraction spectrum shows that there are two CuZr monoclinic phases as a consequence of a martensitic transformation. These structures are characterized by the existence of twinning defects for the first one and a high dislocation density for the other. Both monoclinic phases disappear at higher temperatures and first transform into the cubic CuZr phase, then this cubic phase transforms into Cu₁₀Zr₇ and CuZr₂ phases above 763 K. Internal friction spectra exhibit two relaxation peaks (P₁, P₂), at low and high temperatures, respectively. After rapid cooling of the sample from 1273 K, the first peak P₁ appears from room temperature and disappears after annealing above 673 K. The P₂ peak appears at about 800 K and increases for measurements at higher temperature up to 880 K. This temperature range corresponds with the existence of both Cu₁₀Zr₇ and CuZr₂ phases. These two peaks are associated with a relaxation linked to the dislocation microstructure in the two CuZr monoclinic phases for P1 and in the Cu₁₀Zr₇ and CuZr₂ phases for P2.

• Periodical: Solid State Phenomena (Volume 184)
• Pages: 251-256
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.184.251
• Online since: January 2012
• Authors: D. Belamri, Veronique Pelosin, S. Belhas, Andre Rivière
• Keywords: CuZr Alloy, Isothermal Mechanical Spectroscopy, Martensitic Transition, X-Ray Diffraction (XRD)

References

[1] D. Arias, J. P. Abriata, Bull. Alloy Phase Diagrams, 11 (1990) 452.

[2] K. J. Zeng, M. Hämäläinen and H. L. Lukas. J. Phase Equilibria. 15 (1994) 577.

[3] E. M. Carvalho, I. R. Harris, J. Mater. Sci., 15 (1980) 1224.

[4] A. W. Nicholls, I. R. Harris, J. Mater. Sci. Letters, 5 (1986) 217.

[5] Y.N. Koval, G. S. Firstov, A. V. Kotko, Scripta Met. et Mat., 27 (1992) 1611.

[6] A. V. Zhalko-Titarenko, M. L. Yevlashina, V. N. Antonov, B. Yu. Yavorskii, Yu. N. Koval, G. S. Firstov, Phys. Stat. Sol., (b) 184 (1994) 121.

DOI: 10.1002/pssb.2221840108

[7] D. Schryvers, G.S. Firstov, J.W. Sea, J. Van Humbeeck, Yu.N. Koval, Scripta. Mat., 36 (1997) 1119.

[8] J. W. Seo, D. Schryvers, Acta. Mater., 46 (1998) 1165.

[9] J. W. Seo, D. Schryvers, Acta. Mater., 46 (1998) 1177.

[10] H. M. Kimura, K. Asami, A. Inoue, T. Masumoto, Corrosion Science, 35 (1993) 909.

[11] L. Jastrow, U. Köster, M. Meuris, Mat. Sci. and Eng A 375–377 (2004) 440.

[12] Triwikantoro, D. Toma, M. Meuris, U. Köster, J. Non-Crys. Sol. 250-252 (1999) 719.

[13] W. Kai, T.H. Ho, H.H. Hsieh, Y.R. Chen, D.C. Qiao, F. Jiang, G. Fan, P.K. Liaw, The Minerals, Met. Mat. Society and ASM International (2007).

[14] C.T. Liu, M.F. Chisholm, M.K. Miller, Intermetallics, 10 (2002) 1105.

[15] R.G. Vichev, R.H. Petrov, W. Eckstein, J. Van Humbeeck, B. Blanpain, Applied Surface Science 144–145 (1999) 212.

DOI: 10.1016/s0169-4332(98)00799-5

[16] J. Woirgard, Y. Sarrazin, H. Chaumet, Rev. Sci. Instr., 48 (1977) (1911).

[17] A. Rivière, Low Frequency Techniques in R. Schaller, G. Fantozzi, G. Gremaud (Eds. ), Mechanical Spectroscopy Q-1 2001 with Applications to Materials Science, Trans tech Publication LTD, 2001, p.635.

[18] J. Glimois, P. Forey, J. Feron, C. Becle, J. Less-Common Met., 78 (1981) 45.

DOI: 10.1016/0022-5088(81)90112-0

[19] M. Nevitt, J. Downey, Trans. Met. Soc. AIME, 224 (1962) 195.

[20] S. Belhas, C. Belamri, A. Rivière - Materials Sc. & Eng. - Vol. 521-522 (2009) 98.

[21] G.S. Furstov, J. Van Humbeeck, Yu.N. Koval, Scr. Mater., 50 (2004) 243.
