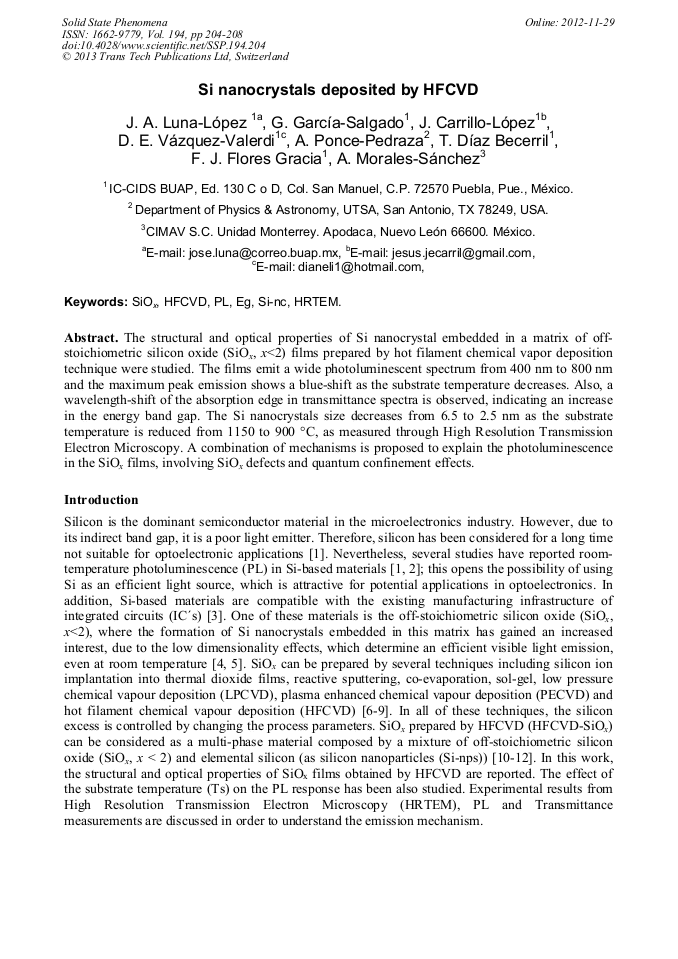

Si Nanocrystals Deposited by HFCVD

Abstract:

The structural and optical properties of Si nanocrystal (Si-nc) embedded in a matrix of off-stoichiometric silicon oxide (SiO_x, x<2) films prepared by hot filament chemical vapor deposition technique were studied. The films emit a wide photoluminescent spectra and the maximum peak emission shows a blue-shift as the substrate temperature (Ts) decreases. Also, a wavelength-shift of the absorption edge in transmittance spectra is observed, indicating an increase in the energy band gap. The Si-nc’s size decreased from 6.5 to 2.5 nm as Ts was reduced from 1150 to 900 °C, as measured through High Resolution Transmission Electron Microscopy analysis. A combination of mechanisms is proposed to explain the photoluminescence in the SiO_x films, which involve SiO_x defects and quantum confinement effects.

• Periodical: Solid State Phenomena (Volume 194)
• Pages: 204-208
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.194.204
• Online since: November 2012
• Authors: José Alberto Luna-López, G. Garcia-Salgado, J. Carrillo-López, Dianeli E. Vázquez-Valerdi, A. Ponce-Pedraza, T. Díaz-Becerril, F.J. Flores Gracia, A. Morales-Sánchez
• Keywords: EG, HFCVD, HRTEM, PL, Si-nc, SiO_x

References

[1] Iacona, F., Franzó, G. y Spinella, Correlation between luminescence and structural properties of Si nanocrystals, J. Appl. Phys., 87 (3), 1295, 2000.

DOI: 10.1063/1.372013

[2] Canham L. T., Journal Silicon quantum wire array fabrication by electrochemical and chemical dissolution of wafers. Appl. Phys. Lett., 57 (10), 1046, 1990.

DOI: 10.1063/1.103561

[3] Edelberg E., Bergh S., Naone R., Hall M and Aydil E., Luminescence from plasma deposited silicon films. J. Appl. Phys. 81 (5), 2410, 1997.

DOI: 10.1063/1.364247

[4] D. Dong et al, Preparation and some properties of chemically vapor-deposited Si-rich Si02 and Si.,Nq films J.Electrochem. Soc., 125, pp.819-823, 1978.

DOI: 10.1149/1.2131555

[5] Y. C. Fang, W. Q. Li, L. J. Qi, L. Y. Li, Y. Y. Zhao, Z. J. Zhang, and M. Lu, Photoluminescence from SiOx thin films: effects of film thickness and annealing temperature, Nanotechnology, 15 (5), 494-500, 2004.

DOI: 10.1088/0957-4484/15/5/016

[6] L. Pavesi, L. Dal Negro, L. Mazzoleni, G. Franzo, and F. Priolo, Optical gain in silicon nanocrystals. Nature, 408, 440, 2000.

DOI: 10.1038/35044012

[7] O. Hanaizumi, K. Ono, and Y. Ogawa, Blue-light emission from sputtered Si: SiO2 films without annealing. Appl. Phys. Lett, 82, 538-540, 2003.

DOI: 10.1063/1.1539302

[8] Kohno, K.; Osaka, Y.; Toyomura, F.; Katayama, H. Jpn. Photoluminescence of Si Microcrystals Embedded in Si02 Glass Films. J. Appl. Phys., 33, 6616-6622, 1994.

DOI: 10.1143/jjap.33.6616

[9] P. G. Pai, S. S. Chao, and Y. Takagi, Infrared spectroscopic study of silicon oxide (SiOx) films produced by plasma enhanced chemical vapour deposition.J. Vac. Sci. Technol., A4, 689, 1986.

[10] J. A. Luna-Lopez, M. Aceves-Mijares, O. Malik, Z. Yu, A. Morales, C. Dominguez and J. Rickards, Compositional and structural characterization of silicon nanoparticles embedded in silicon rich oxide Revista Mexicana de Física, S 53(7), 293, 2007.

DOI: 10.1109/iceee.2006.251881

[11] J. A. Luna López, A. Morales-Sanchez, M. Aceves Mijares, Z. Yu, C. Dominguez, Analysis of surface roughness and its relationship with photoluminescence properties of silicon-rich oxide films. J. Vac. Sci. Technol. A 27(1), 2009.

DOI: 10.1116/1.3032915

[12] J. A. Luna-López, G. García-Salgado, T. Díaz-Becerril, J. Carrillo López, D.E. Vázquez-Valerdi, H. Juárez-Santiesteban, E. Rosendo-Andrés, A. Coyopol, FTIR, AFM, and PL properties of thin SiOx films deposited by HFCVD.Materials Science and Engineering, 174, 88– 92, 2010.

DOI: 10.1016/j.mseb.2010.05.005

[13] Jambois O., Rinnert H., Devaux X. and Vergnat M., Photoluminescence and electroluminescence of size-controlled silicon nanocrystallites embedded in SiO2 thin films J. Appl. Phys. 98, 046105-1, 2005.

DOI: 10.1063/1.2034087

[14] Song H. Z., Bao M. X., Li N. S. and Zhang J. Y., Visible photoluminescence from silicon-ion-implanted SiO2 film and its multiple mechanisms. J. Appl. Phys. 82, 4028, 1997.

[15] C. Delerue, G. Allan, and M. Lannoo, Theoretical aspects of the luminescence of porous silicon. Phys. Rev. B. 48, 11024, 1993.

DOI: 10.1103/physrevb.48.11024

[16] L. N. Dinh, L. L. Chase, M. Baloch, W. J. Siekhaus, and F. Wooten, Optical properties of passivated Si nanocrystals and SiOx nanostructures, Phys. Rev. B, 54, 5029 1996.

[17] T. Shimizu-Iwayama, N. Kurumado, D. E. Hole, and P. D. Townsend, Optical properties of silicon nanoclusters fabricated by ion implantation J. Appl. Phys. 83, 6018, 1998.

DOI: 10.1063/1.367469

[18] Gong-Ru Lin, Chun-Jung Lin, and Chi-Kuan Lin, Oxygen defect and Si nanocrystal dependent white-light and near-infrared electroluminescence of Si-implanted and plasma-enhanced chemical-vapor deposition-grown Si-rich SiO2 J. Appl. Phys. 97, 094306, 2005.

DOI: 10.1063/1.1886274

[19] L.Wang, K Han, M. Tao, Effect of substrate Etching on Electrical Properties of Electrochemical Deposited CuO. J. Electrochem. Soc., 154, D91, 2007.

DOI: 10.1149/1.2404913
