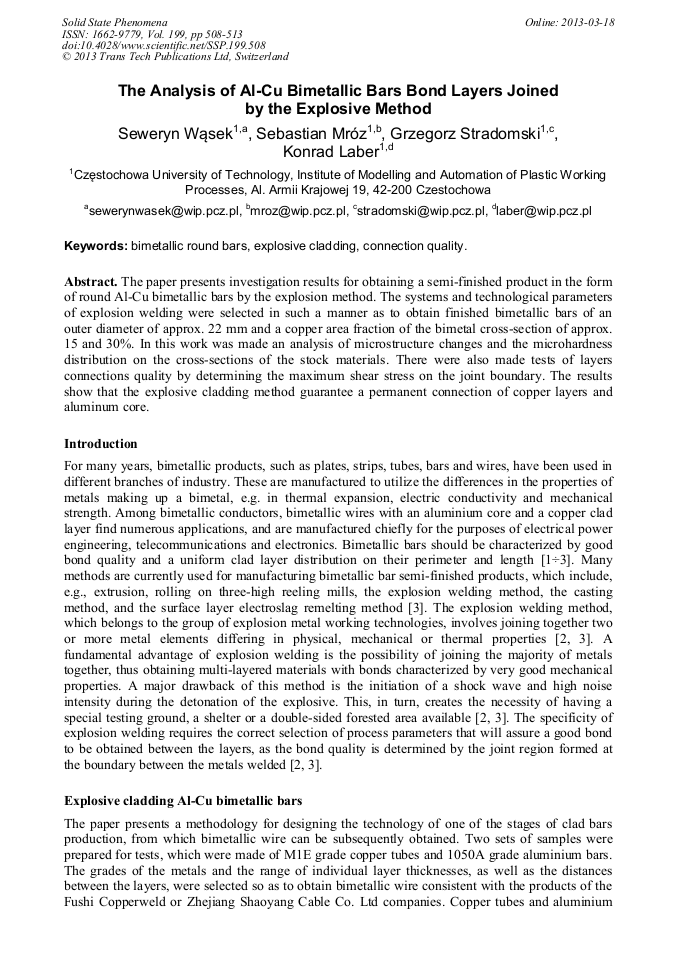

The Analysis of Al-Cu Bimetallic Bars Bond Layers Joined by the Explosive Method

Abstract:

The paper presents investigation results for obtaining a semi-finished product in the form of round Al-Cu bimetallic bars by the explosion method. The systems and technological parameters of explosion welding were selected in such a manner as to obtain finished bimetallic bars of an outer diameter of approx. 22 mm and a copper area fraction of the bimetal cross-section of approx. 15 and 30%. In this work was made an analysis of microstructure changes and the microhardness distribution on the cross-sections of the stock materials. There were also made tests of layers connections quality by determining the maximum shear stress on the joint boundary. The results show that the explosive cladding method guarantee a permanent connection of copper layers and aluminum core.

• Periodical: Solid State Phenomena (Volume 199)
• Pages: 508-513
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.199.508
• Online since: March 2013
• Authors: Seweryn Wąsek, Sebastian Mróz, Grzegorz Stradomski, Konrad Błażej Laber
• Keywords: Bimetallic Round Bars, Connection Quality, Explosive Cladding

References

[1] Dyja H., Maranda A., Trębiński R.: Application of explosive technology in materials engineering. Czestochowa University of Technology, Scientific Reports, WMiIM, Series Metallurgy, No. 20, Czestochowa (2001).

[2] Dyja H., Mróz S., Rydz D.: Technology and modeling of bimetal rolling processes. WIPMiFS Publishing Office 2003, Series Metallurgy, No. 33.

[3] Sawicki S., Mróz S.: Analysis of production processes of bimetallic steel-corossion resistant steel bars. Proceedings of the 7th International Conference New Technologies and Achievements in Metallurgy and Materials Engineering". Czestochowa 2006. Series "Metallurgy, No. 48, pp.495-499.

[4] Dyja H., Mróz S., Stradomski Z.: Properties of joint in the bimetallic rods Cu‐Al and Cu‐steel after explosive cladding and the process of rolling. Metalurgija Metallurgy, 42nd year, vol. 42, br. 3, Zagreb, spranj/rujan, 2003, s. 185÷191.

DOI: 10.1515/amm-2015-0070

[5] Berski, H. Dyja, A. Maranda, J. Nowaczewski, G. Banaszek,: Analysis of quality of bimetallic rod after extrusion process. Journal of Materials Processing Technology, vol.: 177, 2006, pp.582-586.

DOI: 10.1016/j.jmatprotec.2006.04.107

[6] Mróz S., Stradomski G., Szota P.: Rolling process of two layers copper-aluminium alloy bars joined by the explosive welding. Ores and Non-Ferrous Metals Vol. 56, No. 1, 2011, pp.22-24.
