Nanocrystalline/Nanosized Mixed Nickel-Manganese Ferrites Obtained by Mechanical Milling

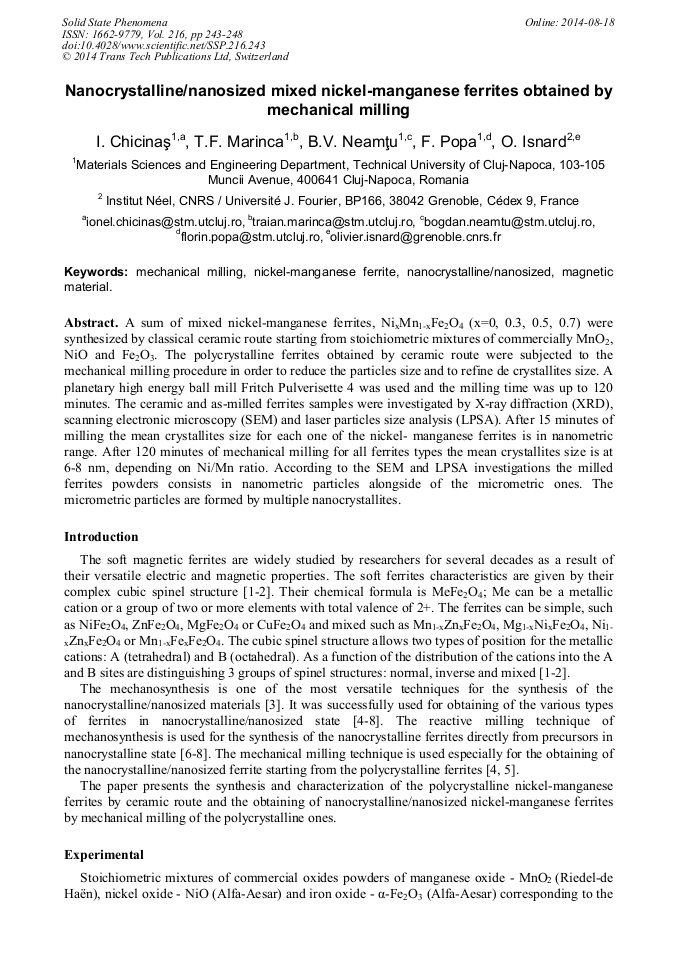

Abstract:

A sum of mixed nickel-manganese ferrites, Ni_xMn_1-xFe₂O₄ (x=0, 0.3, 0.5, 0.7) were synthesized by classical ceramic route starting from stoichiometric mixtures of commercially MnO₂, NiO and Fe₂O₃. The polycrystalline ferrites obtained by ceramic route were subjected to the mechanical milling procedure in order to reduce the particles size and to refine de crystallites size. A planetary high energy ball mill Fritch Pulverisette 4 was used and the milling time was up to 120 minutes. The ceramic and as-milled ferrites samples were investigated by X-ray diffraction (XRD), scanning electronic microscopy (SEM) and laser particles size analysis (LPSA). After 15 minutes of milling the mean crystallites size for each one of the nickel-manganese ferrites is in nanometric range. After 120 minutes of mechanical milling for all ferrites types the mean crystallites size is at 6-8 nm, depending on Ni/Mn ratio. According to the SEM and LPSA investigations the milled ferrites powders consists in nanometric particles alongside of the micrometric ones. The micrometric particles are formed by multiple nanocrystallites.

• Periodical: Solid State Phenomena (Volume 216)
• Pages: 243-248
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.216.243
• Online since: August 2014
• Authors: Ionel Chicinaş*, Traian Florin Marinca, Bogdan Viorel Neamţu, Florin Popa, Olivier Isnard
• Keywords: Magnetic Material, Mechanical Milling, Nanocrystalline/Nanosized, Nickel-Manganese Ferrite

References

[1] Cullity BD, Graham CD, Introduction to Magnetic Materials, New Jersey, 2nd ed., IEEE Press & Wiley, (2009).

[2] Goldman A, Modern Ferrite Technology, 2nd ed., Pittsburgh, Springer, (2006).

[3] I. Chicinaş, Soft magnetic nanocrystalline powders produced by mechanical alloying routes, J. Optoelectron. Adv. Mater. 8 (2006) 439-448.

[4] V. Šepelák, D. Schultze, F. Krumeich, U. Steinike, K.D. Becker, Mechanically induced cation redistribution in magnesium ferrite and its thermal stability, Solid State Ionics 141–142 (2001) 677–682.

DOI: 10.1016/s0167-2738(01)00777-9

[5] G.F. Goya, Handling the particle size and distribution of Fe3O4 nanoparticles through ball milling, Solid State Commun. 130 (2004) 783–787.

DOI: 10.1016/j.ssc.2004.04.012

[6] S. Dasgupta, K.B. Kim, J. Ellrich, J. Eckert, I. Manna, Mechano-chemical synthesis and characterization of microstructure and magnetic properties of nanocrystalline Mn1−xZnxFe2O4, J. Alloys Compd. 424 (2006) 13–20.

DOI: 10.1016/j.jallcom.2005.12.078

[7] M. Sinha, H. Dutta, S.K. Pradhan, X-ray characterization and phase transformation kinetics of ball-mill prepared nanocrystalline Mg–Ni-ferrite at elevated temperatures, Physica E 28 (2005) 43–49.

DOI: 10.1016/j.physe.2005.01.013

[8] T.F. Marinca, I. Chicinaş, O. Isnard, Synthesis, structural and magnetic characterization of nanocrystalline CuFe2O4 as obtained by a combined method reactive milling, heat treatment and ball milling, Ceram. Int. 38 (2012) 1951–(1957).

DOI: 10.1016/j.ceramint.2011.10.026

[9] G.K. Williamson, W.H. Hall, X-ray line broadening from filed aluminium and wolfram, Acta Metall. 1 (1953) 22-31.

DOI: 10.1016/0001-6160(53)90006-6

[10] I. Chicinaş, T.F. Marinca, B.V. Neamţu, F. Popa, O. Isnard, V. Pop, Synthesis, structural and magnetic properties of nanocrystalline/nanosized manganese-nickel ferrite - Mn0. 5Ni0. 5Fe2O4, IEEE T. Magn. – http: /dx. doi. org: 10. 1109/TMAG. 2013. 2285246.

DOI: 10.4028/www.scientific.net/ssp.216.243

[11] C. Suryanarayana, Mechanical alloying and milling, Prog. Mater. Sci. 46 (2001) 1-184.
