Composite Powder and Compacts of Iron/Iron Oxide Type Produced by Mechanosynthesis and Reactive Sintering

Abstract:

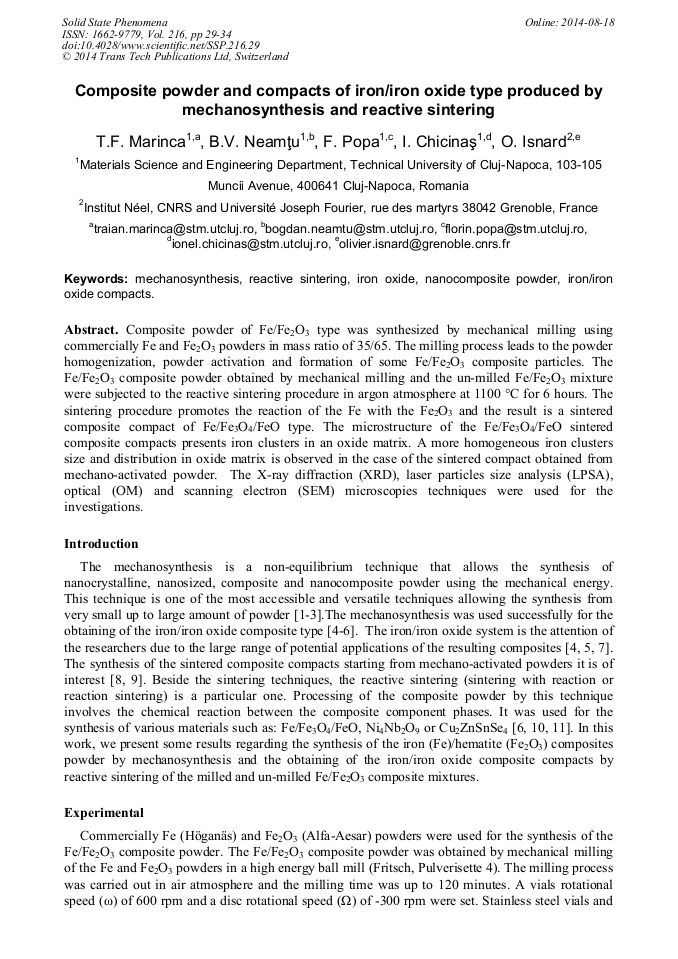

Composite powder of Fe/Fe₂O₃ type was synthesized by mechanical milling using commercially Fe and Fe₂O₃ powders in mass ratio of 35/65. The milling process leads to the powder homogenization, powder activation and formation of some Fe/Fe₂O₃ composite particles. The Fe/Fe₂O₃ composite powder obtained by mechanical milling and the un-milled Fe/Fe₂O₃ mixture were subjected to the reactive sintering procedure in argon atmosphere at 1100 °C for 6 hours. The sintering procedure promotes the reaction of the Fe with the Fe₂O₃ and the result is a sintered composite compact of Fe/Fe₃O₄/FeO type. The microstructure of the Fe/Fe₃O₄/FeO sintered composite compacts presents iron clusters in an oxide matrix. A more homogeneous iron clusters size and distribution in oxide matrix is observed in the case of the sintered compact obtained from mechano-activated powder. The X-ray diffraction (XRD), laser particles size analysis (LPSA), optical (OM) and scanning electron (SEM) microscopies techniques were used for the investigations.

• Periodical: Solid State Phenomena (Volume 216)
• Pages: 29-34
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.216.29
• Online since: August 2014
• Authors: Traian Florin Marinca*, Bogdan V. Neamţu, Florin Popa, Ionel Chicinaş, Olivier Isnard
• Keywords: Iron Oxide, Iron/Iron Oxide Compacts, Mechanosynthesis, Nanocomposite Powder, Reactive Sintering

References

[1] D.L. Zhang, Processing of advanced materials using high-energy mechanical milling, Prog. Mater. Sci. 49 (2004) 537–560.

[2] C. Suryanarayana, Mechanical alloying and milling, Prog. Mater Sci. 46 (2001) 1-184.

[3] I. Chicinaş, Soft magnetic nanocrystalline powders produced by mechanical alloying routes, J. Optoelectron. Adv. Mater. 8 (2006) 439-448.

[4] J. Ding, W.F. Miao, R. Street, P.G. McCormick, Fe3O4/Fe magnetic composite synthesized by mechanical alloying, Scr. Mater. 35 (1996) 1307-1310.

DOI: 10.1016/1359-6462(96)00306-5

[5] M. Mozaffari, M. Gheisari, M. Niyaifar, J. Amighian, Magnetic properties of mechanochemically prepared iron–wüstite (Fe–FeyO) nanocomposites, J. Magn. Magn. Mater. 321 (2009) 2981–2984.

DOI: 10.1016/j.jmmm.2009.04.034

[6] T.F. Marinca, B.V. Neamţu, I. Chicinaş, O. Isnard, Structural and magnetic characteristics of composite compacts of Fe/Fe3O4 type obtained by sintering, IEEE T. Magn. -http: /dx. doi. org: 10. 1109/TMAG. 2013. 2285251.

DOI: 10.1016/j.jallcom.2015.08.249

[7] L. Zhao, H. Yang, S. Li, L. Yu, Y. Cui, X. Zhao, S. Feng, The effect of aging time and calcination temperature on the magnetic properties of α-Fe/Fe3O4 composite, J. Magn. Magn. Mater. 301 (2006) 287–291.

DOI: 10.1016/j.jmmm.2005.07.029

[8] W. Zhang, L. Gao, Y. Lei, B. Yang, J. Li, L. Xiao, Y. Yin, TiAl/B4C composite fabricated by high energy ball milling and hot press sintering processes and its mechanical properties, Mater. Sci. Eng., A A 527 (2010) 7436–7441.

DOI: 10.1016/j.msea.2010.08.041

[9] T.F. Marinca, B.V. Neamţu, F. Popa, V.F. Tarţa, P. Pascuta, A.F. Takacs, I. Chicinaş, Synthesis and characterization of the NiFe2O4/Ni3Fe nanocomposite powder and compacts obtained by mechanical milling and spark plasma sintering, Appl. Surf. Sci., 285P (2013).

DOI: 10.1016/j.apsusc.2013.07.145

[10] Y. Liou, Z. Tsai, K. Fung, C. Liu, Ni4Nb2O9 ceramics prepared by the reaction-sintering process, Ceram. Int. 36 (2010) 1887–1892.

DOI: 10.1016/j.ceramint.2010.03.020

[11] M. Tsega, D. Kuo, Reactive sintering of Cu2ZnSnSe4 pellets at 600 °C with double sintering aids of Sb2S3 and Te, J. Alloys Compd. 580 (2013) 217–222.

DOI: 10.1016/j.jallcom.2013.05.105

[12] H.A. Wriedt, Fe-O (Iron-oxygen) phase diagram, Binary Alloy Phase Diagrams, Second Edition, Ed. T. B. Massalski, 1990, ASM International, Materials Park, Ohio, USA.
