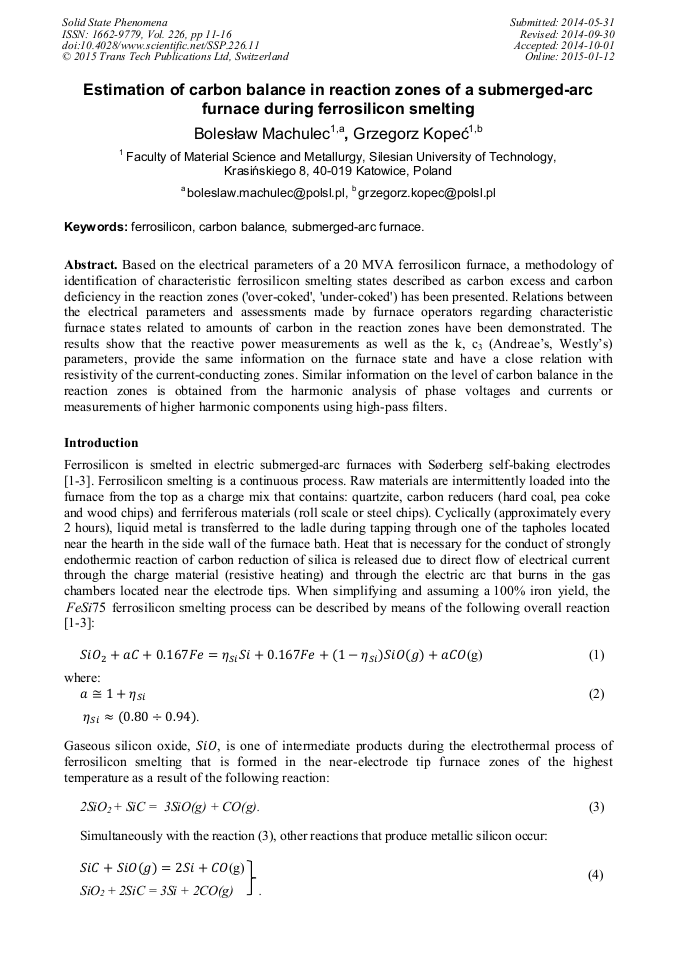

Estimation of Carbon Balance in Reaction Zones of a Submerged-Arc Furnace during Ferrosilicon Smelting

Abstract:

Based on the electrical parameters of a 20 MVA ferrosilicon furnace, a methodology of identification of characteristic ferrosilicon smelting states described as carbon excess and carbon deficiency in the reaction zones ('over-coked', 'under-coked') has been presented. Relations between the electrical parameters and assessments made by furnace operators regarding characteristic furnace states related to amounts of carbon in the reaction zones have been demonstrated. The results show that the reactive power measurements as well as the k, c₃ (Andreae’s, Westly’s) parameters, provide the same information on the furnace state and have a close relation with resistivity of the current-conducting zones. Similar information on the level of carbon balance in the reaction zones is obtained from the harmonic analysis of phase voltages and currents or measurements of higher harmonic components using high-pass filters.

• Periodical: Solid State Phenomena (Volume 226)
• Pages: 11-16
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.226.11
• Online since: January 2015
• Authors: Bolesław Machulec*, Grzegorz Kopeć
• Keywords: Carbon Balance, Ferrosilicon, Submerged-Arc Furnace

References

[1] A. Schei, J. Kr. Tuset, H. Tveit, Production of High Silicon Alloy, Tapir Forlag, Trondheim (1998).

[2] B.F. Lund, Rigorous simulation models for improved process operation. System analysis and on-line estimation applied to a silicon furnace model, dissertation, Department of Engineering Cybernetics, Faculty of Information Technology, Mathematics and Electrical Engineering, Norwegian University of Science and Technology, Trondheim, Norway (2005).

[3] B. Machulec, Teoretyczne podstawy procesu elektrotermicznego wytopu żelazokrzemu oraz krzemu technicznie czystego (in Polish), Ed. Silesian University of Technology, Gliwice (2003).

[4] M. Valderhaug, Modelling and Control of Submerged-Arc Ferrosilicon Furnaces, dissertation, Dep. of Engineering Cybernetics, The Norwegian Institute of Tevchnology, Trondheim, Norway (1992).

[5] J. Westly, Resistance and Heat Distribution in a Submerged-arc Furnance, First International Ferro-Alloys Conference – INFACON 74, Johannesburg, South African Institute of Mining and Metallurgy, (1974).

[6] I.J. Barkeret al., Measurement and Control of Arcing in a Submerged-arc Furnace, INFACON XI, New Delhi (2007).

[7] M. Hering, Podstawy elektrotermii (in Polish), Part I, Ed. WNT, Warszawa (1992).

[8] T. Trejderowski, Wpływ wybranych parametrów elektrycznych pieca na warunki metalurgiczne procesu wytopu żelazokrzemu (in Polish), dissertation, Faculty of Material Science and Metallurgy, Silesian University of Technology, Katowice, Poland (2010).
