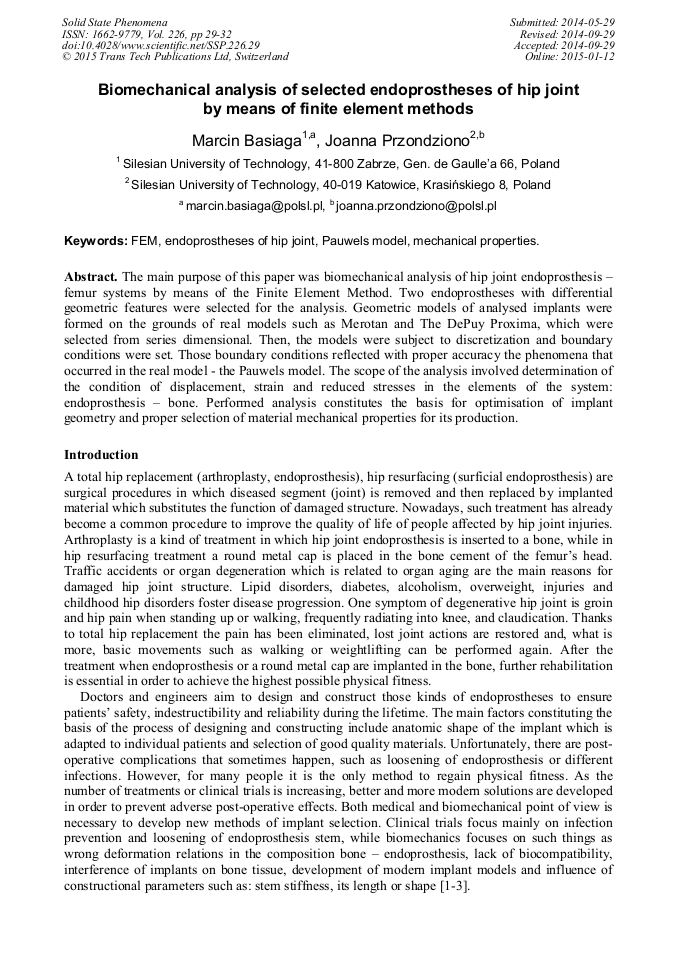

Biomechanical Analysis of Selected Endoprostheses of Hip Joint by Means of Finite Element Methods

Abstract:

The main purpose of this paper was biomechanical analysis of hip joint endoprosthesis – femur systems by means of the Finite Element Method. During the analysis two endoprostheses with differential geometric features were selected. Geometric models of analysed implants were compiled on the grounds of real models like Merotan and The DePuy Proxima which were chosen from series diamensional. Afterwards the models were discretization and boundary conditions were set. Those boundary conditions with right accuracy copied a phenomena which occurred in real models - the Pauwels model. The field of analysis involved determination of the state of displacements, strains and stresses which were cut down in the of endoprosthesis – bone systems. The analysis that was carried out constitute the basics for optimisation of implant geometry and right selection of material’s mechanical properties to its production.

• Periodical: Solid State Phenomena (Volume 226)
• Pages: 29-32
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.226.29
• Online since: January 2015
• Authors: Marcin Basiaga, Joanna Przondziono*
• Keywords: Endoprostheses of Hip Joint, FEM, Mechanical Property, Pauwels Model

References

[1] J. Deszczyński, Endoproteza stawu biodrowego (in Polish), Biuletyn Urzędu Patentowego 26 (2004) 13.

[2] D. Kusz, Biomechaniczne aspekty endoprotezoplastyk stawu biodrowego (in Polish), Inżynieria Materiałowa 19 (1998) 39-44.

[3] C. Macedo, C. Galia, L. Moreira, R. Rosito, F. Macedo, R. Hübler, Characterization of a cementless Ti-6Al-4V femoral stem, Brazilian Journal of Biomedical Engineering 24 (2008) 183-192.

DOI: 10.4322/rbeb.2012.056

[4] D. Kluess, R. Souffrant, W. Mittelmeier, A. Wree, K.P. Schmitz, R. Bader, A convenient approach for finite-element-analyses of orthopaedic implants in bone contact: modelling and experimental validation, Computer Methods and Programs in Biomedicine 95 (2009).

DOI: 10.1016/j.cmpb.2009.01.004

[5] A. Lee, Finite element analysis and its significance in total hip replacement, In: Stillwell WT, editor, The art of total hip arthroplasty, Orlando: Grune & Stratton (1987) 33-39.

[6] P. Prendergast, Finite element models in tissue mechanics and orthopaedic implant design, Clinical Biomechanics 12 (1997) 343-66.

DOI: 10.1016/s0268-0033(97)00018-1

[7] M. Kiel, J. Marciniak, J. Szewczenko, M. Basiaga, W. Wolański, Biomechanical analysis of plate stabilization on cervical part of spine, Archives of Materials Science and Engineering 38 (2009) 41-47.

[8] M. Basiaga, Z. Paszenda, J. Szewczenko, Biomechanical behaviour of surgical drills in simulated conditions of drilling in a bone, Information Technologies in Biomedicine, Springer-Verlag, Berlin Heidelberg 69 (2010) 473-481.

DOI: 10.1007/978-3-642-13105-9_48

[9] J. Marciniak, J. Szewczenko, W. Walke, M. Basiaga, M. Kiel, I. Mańka, Biomechanical analysis of lumbar spine stabilization by means of transpedicular stabilizer, Advances in Intelligent and Soft Computing, Information Technologies in Biomedicine, Springer 47 (2008).

DOI: 10.1007/978-3-540-68168-7_60

[10] W. Walke, J. Marciniak, Z. Paszenda, M. Kaczmarek, J. Cieplak, Biomechanical behaviour of double threaded screw in tibia fixation, Advances in Soft Computing 47 (2008) 521-528.

DOI: 10.1007/978-3-540-68168-7_59

[11] W. Kajzer, A. Krauze; M. Kaczmarek, FEM Analisys of the Expandable Intramedullar Nail, Advances in Intelligent and Soft Computing, Information Technologies in Biomedicine, Springer 47 (2008) 537-544.

DOI: 10.1007/978-3-540-68168-7_61
