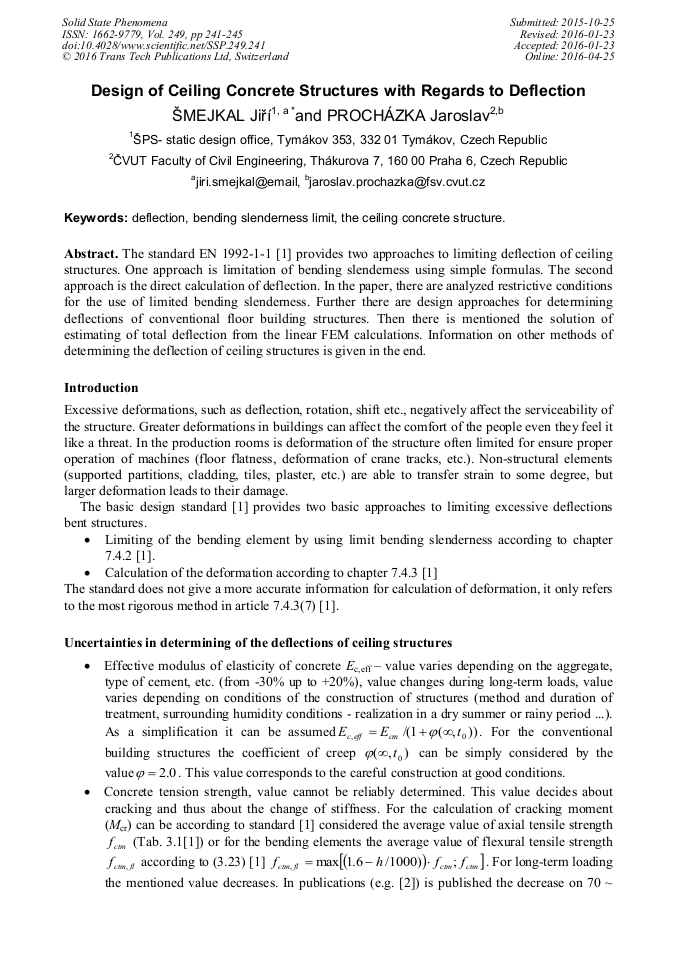

Design of Ceiling Structures with Regards to Deflection

Abstract:

The standard EN 1992-1-1 [1] provides two approaches to limiting deflection of ceiling structures. One approach is limitation of bending slenderness using simple formulas. The second approach is the direct calculation of deflection. In the paper, there are analyzed restrictive conditions for the use of limited bending slenderness. Further there are design approaches for determining deflections of conventional floor building structures. Then there is mentioned the solution of estimating of total deflection from the linear FEM calculations. Information on other methods of determining the deflection of ceiling structures is given in the end.

• Periodical: Solid State Phenomena (Volume 249)
• Pages: 241-245
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.249.241
• Online since: April 2016
• Authors: Jiří Šmejkal*, Jaroslav Procházka
• Keywords: Bending Slenderness Limit, Ceiling Concrete Structure, Deflection

References

[1] EN 1992-1-1 Design of concrete structures – Part 1-1: General rules and rules for buildings ČNI Prague, 2006. (In Czech).

[2] DAfStB 600. Beuth Verlag GmbH Berlin, 2010 (In German).

[3] National Application Document for Germany for EN 1992-1-1(In German).

[4] R Krüger, W.; Mertzsch, O.: Verformungsnachweise – Erweiterte Tafeln zur Begrenzung der Biegeschlankheit, Beitrag in Stahlbetonbau aktuell (Seite G. 19 – G. 38), Praxishandbuch 2003, Bauwerk Verlag GmbH, Berlin 2003 (In German).

[5] ČSN 731201 (2011) ČNI Prague, 2011 (In Czech).
