FEM Investigation of Load Carrying Capacity of Magnetic Vibration Isolating Supports

Abstract:

The load carrying capacity of self-centering permanent magnet based vibration isolating support is analyzed in the article. COMSOL Multiphysics^® modeling software was used for numerical simulation. Results are presented as repulsion force versus support cap displacement graph as well as magnetic flux density distribution graphs. Repulsion force was also measured experimentally. It is established that differences between numerically and experimentally obtained values are only about 2–8%. It is also established that near-zero stiffness of the support is achieved in case of 70 N normal load force.

You might also be interested in these eBooks

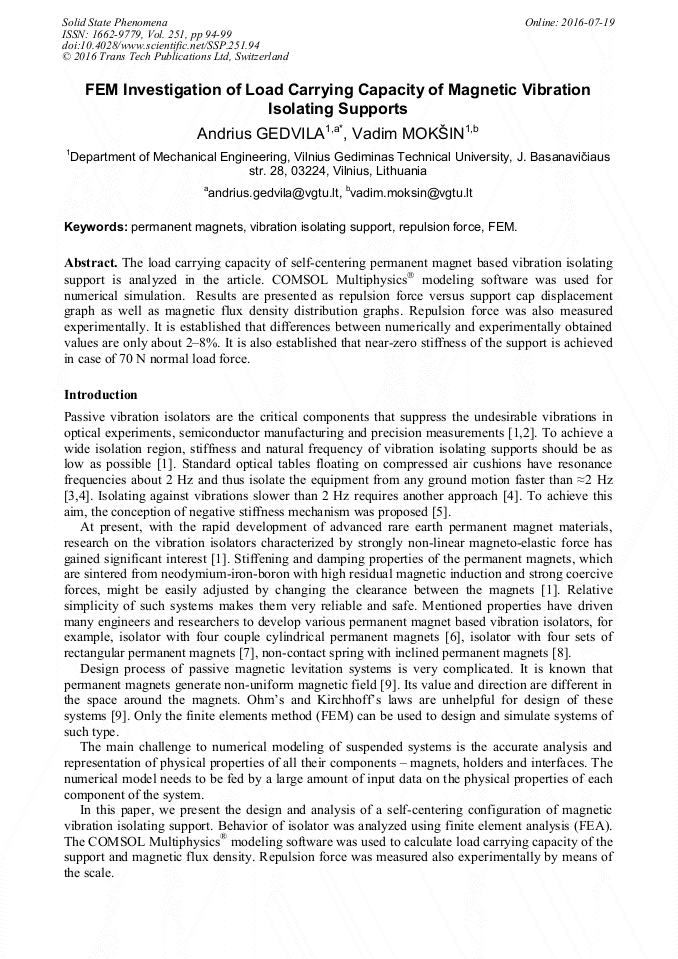

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 251)

Pages:

94-99

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.251.94

Citation:

Cite this paper

Online since:

July 2016

Authors:

Andrius GEDVILA*, Vadim Mokšin

Keywords:

FEM, Permanent Magnets, Repulsion Force, Vibration Isolating Support

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Q. Li, Y. Zhu, D. Xu, J. Hu, W. Min, L. Pang, A negative stiffness vibration isolator using magnetic spring combined with rubber membrane, J. Mech. Sci. Technol. 27 (2013) 813-824.

DOI: 10.1007/s12206-013-0128-5

Google Scholar

[2] A. Kasparaitis, A. Kilikevičius, A. Barakauskas, V. Mokšin, Experimental research of vibrations of angle measurement comparator, J. Vibroeng. 14 (2012) 1760-1765.

Google Scholar

[3] V. Vekteris, A. Kilikevičius, V. Mokšin, A. Gedvila, Investigation of the vibration behaviour of optomechanical convergence system of multiple pump beams, Int. J. Acad. Res. A. 6(1) (2014) 255-259.

DOI: 10.7813/2075-4124.2014/6-1/a.33

Google Scholar

[4] V. Vekteris, A. Kilikevičius, V. Mokšin, A. Gedvila, Investigation of the efficiency of vibro-isolating supports of optical tables, Asian. J. Appl. Sci. Eng. 3(1) (2014) 20-25.

Google Scholar

[5] D.L. Platus, Negative-stiffness-mechanism vibration isolation systems, Proc. SPIE 1619 (1991) 44-54.

Google Scholar

[6] E. Puppin, V. Fratello, Vibration isolation with magnet springs, Rev. Sci. Instrum. 73 (2002) 4034-4036.

DOI: 10.1063/1.1512325

Google Scholar

[7] K.B. Choi, Y.G. Gho, T. Shishi, A. Shimokohbe, Stabilization of one degree-of-freedom control type levitation table with magnet repulsive forces, Mechatronics 13 (2003) 587-603.

DOI: 10.1016/s0957-4158(02)00032-6

Google Scholar

[8] W. Roberson, B. Cazzolato, A. Zander, Theoretical analysis of a non-contact spring with inclined permanent magnets for load-independent resonance frequency, J. Sound Vib. 331 (2012) 1331-1341.

DOI: 10.1016/j.jsv.2011.11.011

Google Scholar

[9] K. Falkowski, Simulation of passive magnetic bearing using COMSOL Multiphysics, Proceedings of the 2011 COMSOL Conference in Stuttgart (2011) 1-7.

Google Scholar
