Ti-Al Membranes for Microfiltration

Abstract:

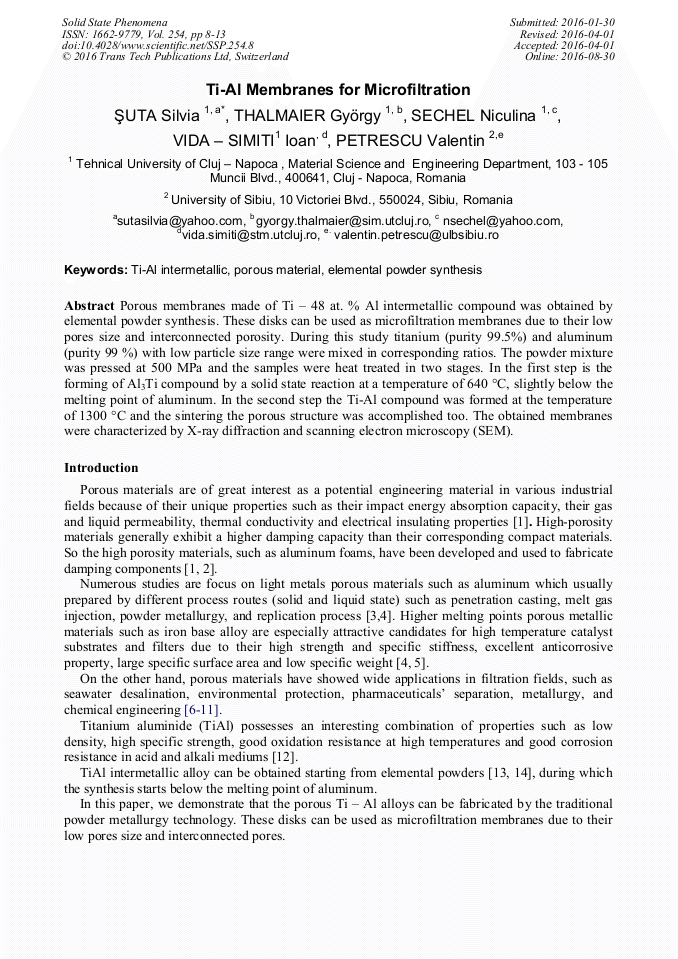

Porous membranes made of Ti – 48 at. % Al intermetallic compound was obtained by elemental powder synthesis. These disks can be used as microfiltration membranes due to their low pores size and interconnected porosity. During this study titanium (purity 99.5%) and aluminum (purity 99 %) with low particle size range were mixed in corresponding ratios. The powder mixture was pressed at 500 MPa and the samples were heat treated in two stages. In the first step is the forming of Al₃Ti compound by a solid state reaction at a temperature of 640 °C, slightly below the melting point of aluminum. In the second step the Ti-Al compound was formed at the temperature of 1300 °C and the sintering the porous structure was accomplished too. The obtained membranes were characterized by X-ray diffraction and scanning electron microscopy (SEM).

• Periodical: Solid State Phenomena (Volume 254)
• Pages: 8-13
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.254.8
• Online since: August 2016
• Authors: Silvia Şuta*, György Thalmaier, Niculina Sechel, Ioan Vida-Simiti, Valentin Petrescu
• Keywords: Elemental Powder Synthesis, Porous Material, Ti-Al Intermetallic

References

[1] K. M. Kulinowski, P. Jiang, H. Vaswani, V. L. Colvin, Porous Metals from Colloidal Templates, Advanced Materials , 12, (2000), 833 - 838.

DOI: 10.1002/(sici)1521-4095(200006)12:11<833::aid-adma833>3.0.co;2-x

[2] Y. He, Y. Jiang, N. Xu, J. Zou, B. Huang, C. T. Liu, P. K. Liaw, Fabrication of Ti–Al Micro/Nanometer-Sized Porous Alloys through the Kirkendall Effect, Advanced Materials, 19, (2007), 2102 – 2106.

DOI: 10.1002/adma.200602398

[3] M.F. Ashby, T. Evans, N.A. Fleck, L.J. Gibson, J.W. Hutchinson, H.N.G. Wadley, Metal Foams: A Design Guide, first ed., Butterworth-Heinemann, Woburn, (2000).

DOI: 10.1016/b978-075067219-1/50001-5

[4] C. Park, S.R. Nutt, Strain rate sensitivity and defects in steel foam, Material Science Engineering A, 323 (2002), 358–366.

DOI: 10.1016/s0921-5093(01)01372-7

[5] Yu.V. Milmana, D.B. Miracleb, S.I. Chugunovaa, I.V. Voskoboinika, N. P Korzhovaa, T. N Legkayaa, e Mechanical behaviour of Al3Ti intermetallic and L12 phases on its basis. Intermetallics, 9 (2001), 839-845.

DOI: 10.1016/s0966-9795(01)00073-5

[6] B. Van der Bruggen, C. Vandecasteele, Distillation vs. membrane filtration: overview of process evolutions in seawater desalination, Desalination 143 (2002), 207 - 218.

DOI: 10.1016/s0011-9164(02)00259-x

[7] L.E. Aririatu, N.C. Ewelike, A low-cost filtration system for the treatment of wastewaters, Environment Protection Engineering, 29 (2003), 17-22.

[8] S. E Letant., B. R., A. W. Hart Van Buuren, L. J. Terminello, Functionalized silicon membranes for selective bio-organism capture. Nat. Mater. 2 (2003) 391–396.

DOI: 10.1038/nmat888

[9] Y. Jiang, Y.H. He, N.P. Xu, J. Zou, B.Y. Huang, C.T. Liu, Effects of the Al content on pore structures of porous Ti - Al alloys, Intermetallics, 16 (2008), 327 – 332.

DOI: 10.1016/j.intermet.2007.11.002

[10] I. Vida – Simiti, High porosity sintered sheets, Journal of Optoelectronics and Advanced Materials 8 (2006), 1479 -1483.

[11] I. Vida - Simiti, N. Jumate, G. Thalmaier, N. Sechel, V. Moldovan, Study of gradual porous metallic membranes obtained by powder sedimentation, Journal of Porous Materials 19 (2012), 21 - 27.

DOI: 10.1007/s10934-010-9442-9

[12] K. Kothari, R. Radhakrishnan, N. M. Wereley, T. S. Sudarshan, Microstructure and mechanical properties of consolidated gamma titanium aluminides, Powder Metallurgy, 50 (2007), 21-27.

DOI: 10.1179/174329007x186471

[13] J. Lapin, TiAl – based alloys: present status and future perspectives, Metal, 5 (2009), 19 -21.

[14] K. Kothari, R. Radhakrishnan, M. Wereley, Advances in gamma titanium aluminides and their manufacturing techniques, Progress in Aerospace Sciences, 55 (2012), 1-16.

DOI: 10.1016/j.paerosci.2012.04.001

[15] Y. Liang, F. Yang, L. Zhang, J. Lin, S. Shang, Z. K Liu, Reaction behavior and pore formation mechanism of TiAl–Nb porous alloys prepared by elemental powder metallurgy, Intermetallics 44 (2014), 1-7.

DOI: 10.1016/j.intermet.2013.08.001
