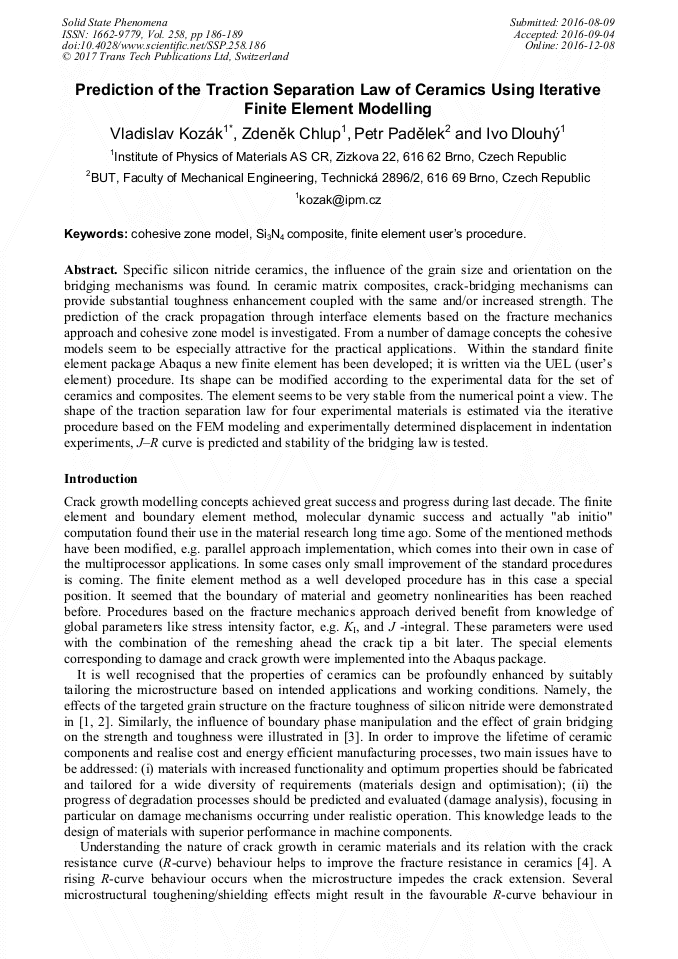

Prediction of the Traction Separation Law of Ceramics Using Iterative Finite Element Modelling

Abstract:

Specific silicon nitride ceramics, the influence of the grain size and orientation on the bridging mechanisms was found. In ceramic matrix composites, crack-bridging mechanisms can provide substantial toughness enhancement coupled with the same and/or increased strength. The prediction of the crack propagation through interface elements based on the fracture mechanics approach and cohesive zone model is investigated. From a number of damage concepts the cohesive models seem to be especially attractive for the practical applications. Within the standard finite element package Abaqus a new finite element has been developed; it is written via the UEL (user’s element) procedure. Its shape can be modified according to the experimental data for the set of ceramics and composites. The element seems to be very stable from the numerical point a view. The shape of the traction separation law for four experimental materials is estimated via the iterative procedure based on the FEM modeling and experimentally determined displacement in indentation experiments, J–R curve is predicted and stability of the bridging law is tested.

• Periodical: Solid State Phenomena (Volume 258)
• Pages: 186-189
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.258.186
• Online since: December 2016
• Authors: Vladislav Kozák*, Zdeněk Chlup, Petr Padělek, Ivo Dlouhý
• Keywords: Cohesive Zone Model, Finite Element User’s Procedure, Si₃N₄ Composite

References

[1] M. Lengauer, R. Danzer: J. of the European Ceramic Society 28 (2008), p.2289–2298.

[2] F.F. Lange: J. of the European Ceramic Society 62 (1979), p.428–430.

[3] M.J. Hoffmann, G. Petzow: Pure and Applied Chemistry 66 (1994), p.1807–1814.

[4] Z. Chlup at al: Key Eng. Materials 465 (2011), pp.455-458.

[5] S.F. Fünfschilling, et al: Acta Materialia 59 (2011), p.3978–3989.

[6] R.B. Greene, S. Gallops, S.F. Fünfschilling, T. Fett, T.J. Hoffmann, J.W. Ager, J.J. Kruzic: J. of the Mechanics and Physics of Solids 60 (2012), p.1462–1477.

DOI: 10.1016/j.jmps.2012.04.007

[7] I. Dlouhy et al: J. of Materials Science, 43 (2008), 12, pp.4022-4030.

[8] M. Kotoul et al: Acta Materialia, 56 (2008), 12, pp.2908-2918.

[9] H.D. Espinosa, P.D. Zavattieri, S.K. Dwivedi: J. of the Mechanics and Physics of Solids 56 (2008), p.3077– 3100.

[10] D. Motammedi, S. Mohammedi: Int. J. of Mechanical Sciences 54 (2012), pp.20-37.

[11] J.W. Foulk, R.M. Cannon, G.C. Johnson, P.A. Klein, R.O. Ritchie: J. of the Mechanics and Physics of Solids 55 (2007), p.719–743.
