Synthesis and Characterization Investigations of Laboratory-Synthesized VB-VB₂-V₃B₄ Reinforced Al-7wt.% Si Composites via Mechanical Alloying and Pressureless Sintering

Abstract:

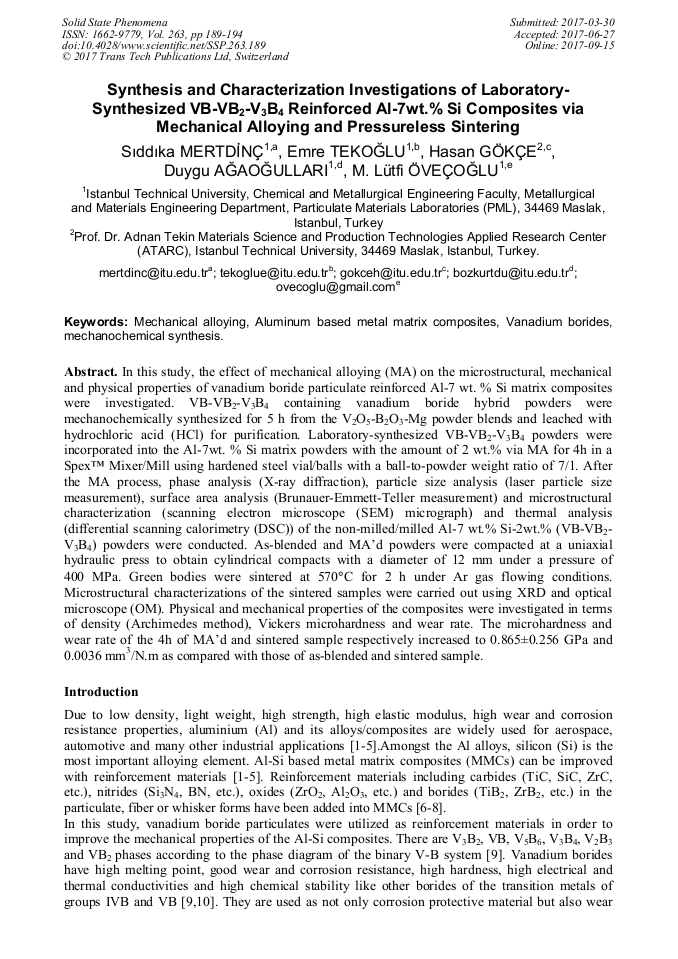

In this study, the effect of mechanical alloying (MA) on the microstructural, mechanical and physical properties of vanadium boride particulate reinforced Al-7 wt. % Si matrix composites were investigated. VB-VB₂-V₃B₄ containing vanadium boride hybrid powders were mechanochemically synthesized for 5 h from the V₂O₅-B₂O₃-Mg powder blends and leached with hydrochloric acid (HCl) for purification. Laboratory-synthesized VB-VB₂-V₃B₄ powders were incorporated into the Al-7wt. % Si matrix powders with the amount of 2 wt.% via MA for 4h in a SpexTM Mixer/Mill using hardened steel vial/balls with a ball-to-powder weight ratio of 7/1. After the MA process, phase analysis (X-ray diffraction), particle size analysis (laser particle size measurement), surface area analysis (Brunauer-Emmett-Teller measurement) and microstructural characterization (scanning electron microscope (SEM) micrograph) and thermal analysis (differential scanning calorimetry (DSC)) of the non-milled/milled Al-7 wt.% Si-2wt.% (VB-VB₂-V₃B₄) powders were conducted. As-blended and MA’d powders were compacted at a uniaxial hydraulic press to obtain cylindrical compacts with a diameter of 12 mm under a pressure of 400 MPa. Green bodies were sintered at 570°C for 2 h under Ar gas flowing conditions. Microstructural characterizations of the sintered samples were carried out using XRD and optical microscope (OM). Physical and mechanical properties of the composites were investigated in terms of density (Archimedes method), Vickers microhardness and wear rate. The microhardness and wear rate of the 4h of MA’d and sintered sample respectively increased to 0.865±0.256 GPa and 0.0036 mm³/N.m as compared with those of as-blended and sintered sample.

• Periodical: Solid State Phenomena (Volume 263)
• Pages: 189-194
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.263.189
• Online since: September 2017
• Authors: Sıddıka Mertdinç*, Emre Tekoğlu, Hasan Gokce, Duygu Agaogullari, Mustafa Lutfi Ovecoglu
• Keywords: Aluminum Based Metal Matrix Composites, Mechanical Alloying, Mechanochemical Synthesis, Vanadium Borides

References

[1] Cai, Z., Zhnag, C., Wang, R., Peng, C., Qui, K., Feng, Y., Preparation of Al–Si alloys by a rapidsolidification and powder metallurgyr oute, Materials and Design, vol. 87, 996–1002, Publication number: 10. 1016/j. matdes. 08. 106 0264-1275, (2015).

DOI: 10.1016/j.matdes.2015.08.106

[2] Nishida, Y., Introductionto Metal Matrix Composites Fabrication and Recycling, Springer, Japan, 1-43, (2013).

[3] Torralba, J.M. Da Costa, C.E. Velasco, F., P/M aluminium matrix composites: an overview, Journal of Materials Processing Technology , vol. 133, 203–206, (2003).

DOI: 10.1016/s0924-0136(02)00234-0

[4] Warmuzek, M., Aluminum-Silicon Casting Alloys Atlas of Microfractographs, ASM International, http: /www. asm international. org/documents, (2004).

[5] Kainer, K., Metal Matrix Composites, WILEY-VCH Verlag GmbH&Co. KgaA, Weinheim, (2006).

[6] Wu, S., Wang, H.Z., T, S., Mechanical And Wear Behavior Of An Al/Si Alloy Metal-Matrix Composite Reinforced With Aluminosilicate Fiber, Composite Science and Technology, vol. 56, pp.1261-1270, (1996).

DOI: 10.1016/s0266-3538(96)00085-1

[7] H. Cui, F. Lu, X. Tang, S. Yao. Reinforcement Behavior in Laser Welding of A356/ TiB2p MMCs, Materials Transactions, vol. 53, pp.1644-1647, (2012).

DOI: 10.2320/matertrans.m2011385

[8] R. Maiti, M., Chakraborty. Synthesis And Characterization Of Molybdenum Aluminide Nanoparticles Reinforced Aluminium Matrix Composites, Journal of Alloys and Compounds, Vol. 458, p.450–456, (2008).

DOI: 10.1016/j.jallcom.2007.04.001

[9] Yeh, C.L., Wang, H.J., Combustion synthesis of vanadium boridesJournal of Alloys and Compounds, vol. 509, 3257–3261, (2011).

DOI: 10.1016/j.jallcom.2010.12.004

[10] S.A. Hassanzadeh-Tabrizian, D. Davoodi, .A.A. Beykzadehb, S. Salahshour, Fast mechanochemical combustion synthesis of nanostructured vanadium boride by a magnesiothermic reaction, Ceramics International, vol. 42, p.1812–1816, (2016).

DOI: 10.1016/j.ceramint.2015.09.144

[11] Suryanarayana, C., Mechanical alloying and milling, Progress in Materials Science, vol. 46, 1–184, (2001).

[12] Goff, A. Modeling and synthesis of a piezoelectric ceramic-reinforced metal matrix composites, M. Sc. Thesis, Virginia Polytechnic Institute and State University, Blacksburg, VA, A.B. D, (2003).

[13] Balcı, Ö., Ağaoğulları, D., Gökçe, H., Duman, İ., Öveçoğlu, M. L, Influence of TiB2 particle size on the microstructure and properties of Al matrix composites prepared via mechanical alloying and pressureless sintering, Journal of Alloys and Compounds, 586, S78–S84, (2014).

DOI: 10.1016/j.jallcom.2013.03.007

[14] Lee, H., Yeo, j., Hong, S., Yon, D., Na, K., The fabrication process and mechanical properties of SiCp Al-Si MMC for automobile air-conditioner compressor pistons, Kjournal of Materials Processing Technology, 113, 202-208, (2001).

DOI: 10.1016/s0924-0136(01)00680-x

[15] Han, Q., Setchi, R., Evans, S., Synthesis and characterisation of advanced ball-milled Al-Al2O3 nanocomposites for selective laser melting, Powder Technology, 297, 183–192, (2016).

DOI: 10.1016/j.powtec.2016.04.015
