Tool Wear of Multi-Layer AlCrWN/AlCrWSiN-Coated Cemented Carbide in Cutting Hardened Sintered Steel

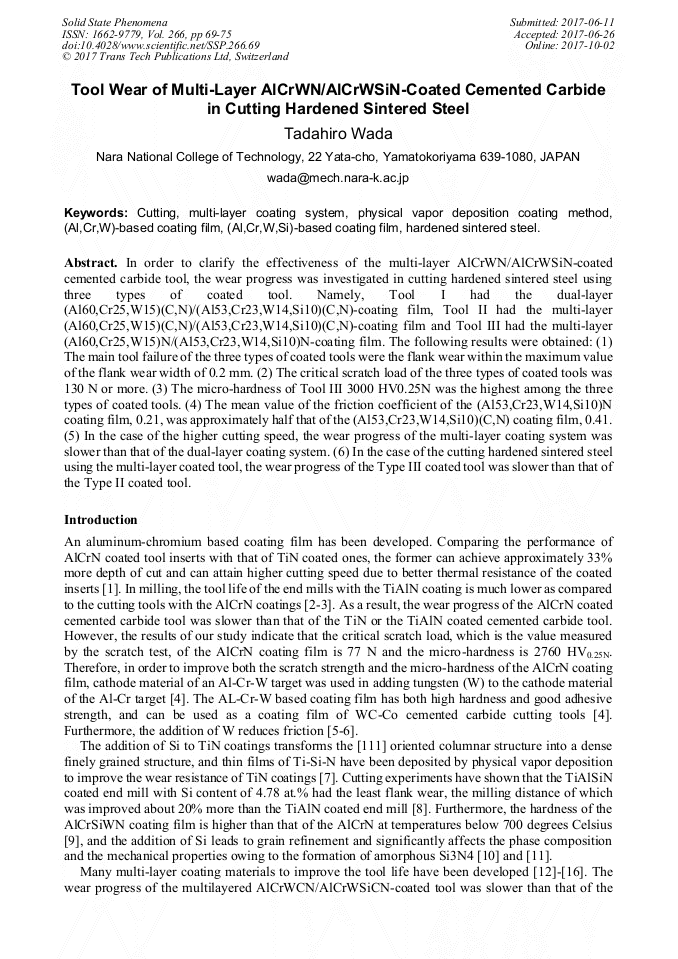

Abstract:

In order to clarify the effectiveness of the multi-layer AlCrWN/AlCrWSiN-coated cemented carbide tool, the wear progress was investigated in cutting hardened sintered steel using three types of coated tool. Namely, Tool I had the dual-layer (Al60,Cr25,W15)(C,N)/(Al53,Cr23,W14,Si10)(C,N)-coating film, Tool II had the multi-layer (Al60,Cr25,W15)(C,N)/(Al53,Cr23,W14,Si10)(C,N)-coating film and Tool III had the multi-layer (Al60,Cr25,W15)N/(Al53,Cr23,W14,Si10)N-coating film. The following results were obtained: (1) The main tool failure of the three types of coated tools were the flank wear within the maximum value of the flank wear width of 0.2 mm. (2) The critical scratch load of the three types of coated tools was 130 N or more. (3) The micro-hardness of Tool III 3000 HV0.25N was the highest among the three types of coated tools. (4) The mean value of the friction coefficient of the (Al53,Cr23,W14,Si10)N coating film, 0.21, was approximately half that of the (Al53,Cr23,W14,Si10)(C,N) coating film, 0.41. (5) In the case of the higher cutting speed, the wear progress of the multi-layer coating system was slower than that of the dual-layer coating system. (6) In the case of the cutting hardened sintered steel using the multi-layer coated tool, the wear progress of the Type III coated tool was slower than that of the Type II coated tool.

• Periodical: Solid State Phenomena (Volume 266)
• Pages: 69-75
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.266.69
• Online since: October 2017
• Authors: Tadahiro Wada*
• Keywords: (Al,Cr,W)-Based Coating Film, (Al,Cr,W,Si)-Based Coating Film, Cutting, Hardened Sintered Steel, Multi-Layer Coating System, Physical Vapor Deposition Coating Method

References

[1] Yueh-Jaw Lin, Ashutosh Agrawal, Yunmei Fang, Wear progressions and tool life enhancement with AlCrN coated inserts in high-speed dry and wet steel lathing, Wear, Volume 264, Issues 3-4(2008)pp.226-234.

DOI: 10.1016/j.wear.2007.03.007

[2] G.S. Fox-Rabinovich, B.D. Beake, J.L. Endrino, S.C. Veldhuis, R. Parkinson, L.S. Shuster, M.S. Migranov, Effect of mechanical properties measured at room and elevated temperatures on the wear resistance of cutting tools with TiAlN and AlCrN coatings, Surface and Coatings Technology, Volume 200, Issues 20-21, 22 May(2006).

DOI: 10.1016/j.surfcoat.2005.08.132

[3] W. Kalss, A. Reiter, V. Derflinger, C. Gey, J.L. Endrino, Modern coatings in high performance cutting applications, International Journal of Refractory Metals and Hard Materials, Volume 24, Issue 5, September(2006)pp.399-404.

DOI: 10.1016/j.ijrmhm.2005.11.005

[4] Tadahiro Wada and Hiroyuki Hanyu, Tool Wear of Aluminum/Chromium/ Tungsten-based-coated Cemented Carbide in Cutting Hardened Steel, Applied Mechanics and Materials Vol. 798 (2015)pp.377-383.

DOI: 10.4028/www.scientific.net/amm.798.377

[5] K. Bobzin, N. Bagcivan, M. Ewering, R.H. Brugnara, S. Theiß, DC-MSIP/HPPMS (Cr, Al, V)N and (Cr, Al, W)N thin films for high-temperature friction reduction, Surface & Coatings Technology, 205(2011)pp.2887-2892.

DOI: 10.1016/j.surfcoat.2010.10.056

[6] Wan-Yu Wu, Chia-Hao Wu, Bo-Hong Xiao, Ting-Xin Yang, Shi-Yi Lin, Ping-Hung Chen, Chi-Lung Chang, Microstructure, mechanical and tribological properties of CrWN films deposited by DC magnetron sputtering, Vacuum, 87(2013)pp.209-212.

DOI: 10.1016/j.vacuum.2012.01.026

[7] M. Diserens, J. Patscheider, F. Levy, Improving the properties of titanium nitride by incorporation of silicon, Surface and Coatings Technology 108-109(1998)pp.241-246.

DOI: 10.1016/s0257-8972(98)00560-x

[8] Donghai Yu, Chengyong Wang, Xiaoling Cheng, Fenglin Zhang, Microstructure and properties of TiAlSiN coatings prepared by hybrid PVD technology, Thin Solid Films, 517(2009)pp.4950-4955.

DOI: 10.1016/j.tsf.2009.03.091

[9] Yu-ping Feng, Li Zhang, Rong-xian Ke, Qing-lei Wan, ZheWanga, Zhi-hong Lu, Thermal stability and oxidation behavior of AlTiN, AlCrN and AlCrSiWN coatings, Int. Journal of Refractory Metals and Hard Materials, Vol. 43 March(2014)pp.241-249.

DOI: 10.1016/j.ijrmhm.2013.11.018

[10] Shihong Zhang, Lei Wang, Qimin Wang, Mingxi Li, A superhard CrAlSiN superlattice coating deposited by multi-arc ion plating: I. Microstructure and mechanical properties, Surface & Coatings Technology, 214(2013)pp.160-167.

DOI: 10.1016/j.surfcoat.2012.05.144

[11] Lihui Zhu, Mingmei Hu, Wangyang Ni, Yixiong Liu, High temperature oxidation behavior of Ti0. 5Al0. 5N coating and Ti0. 5Al0. 4Si0. 1N coating, Vacuum, 86(2012)pp.1795-1799.

DOI: 10.1016/j.vacuum.2012.04.013

[12] J.H. Hsieh, C. Liang, C.H. Yu, W. Wu, Deposition and characterization of TiAlN and multi-layered TiN/TiAlN coatings using unbalanced magnetron sputtering, Surface and Coatings Technology, 108-109(1998)pp.132-137.

DOI: 10.1016/s0257-8972(98)00684-7

[13] A.A. Vereschaka, S.N. Grigoriev, A.S. Vereschaka, A. Yu. Popov and A. D. Batako, Nano-scale multilayered composite coatings for cutting tools operating under heavy cutting conditions, Procedia CIRP, 14(2014)pp.239-244.

DOI: 10.1016/j.procir.2014.03.070

[14] Tsao Chung-Chen, Hocheng Hong, Comparison of the tool life of tungsten carbides coated by multi-layer TiCN and TiAlCN for end mills using the Taguchi method, Journal of Materials Processing Technology, Volume 123, Issue 1(2002)pp.1-4.

DOI: 10.1016/s0924-0136(01)01152-9

[15] M. Nouari, A. Ginting, Wear characteristics and performance of multi-layer CVD-coated alloyed carbide tool in dry end milling of titanium alloy, Surface & Coatings Technology, 200(2006)pp.5663-5676.

DOI: 10.1016/j.surfcoat.2005.07.063

[16] Q. Yang, R. McKellar, Nanolayered CrAlTiN and multilayered CrAlTiN-AlTiN coatings for solid particle erosion protection, Tribology International, 83(2015)pp.12-20.

DOI: 10.1016/j.triboint.2014.11.002

[17] Tadahiro Wada and Hiroyuki Hanyu, Tool Wear of Aluminum/Chromium/ Tungsten/Silicon-Based-Coated Cemented Carbide Tools in Cutting of Hardened Steel, International Journal of Engineering and Technology, Vol. 8, No. 6(2016)pp.406-409.

DOI: 10.7763/ijet.2016.v8.922
