The Influence of Process Parameters on Structure of Ceramic Coatings Deposited by PS-PVD Method

Marek Goral; Tadeusz Kubaszek

doi:10.4028/www.scientific.net/SSP.267.243

Paper Titles

Influence of Air Plasma Spraying Process Parameters on Ceramic Layer in Thermal Barrier Coatings
p.207

Evaluation of Residual Stresses in PVD Coatings by Means of Strip Substrate Length Variation and Curvature Method of Plate Substrate
p.212

Wear Rate of Nanocrystalline Diamond Coating under High Temperature Sliding Conditions
p.219

Comparative Study of Adhesive Wear for CoCr, TiC-NiMo, WC-Co as Potential FSW Tool Materials
p.224

Dependance of Wear of Cu-Cr-S Alloy on Hardness and Electrical Conductivity in Sliding Electrical Contact
p.229

Development of Impact Energy Distribution of Various Abrasives during Cyclic Impact/Abrasion Testing
p.234

The Influence of Process Parameters on Structure of Ceramic Coatings Deposited by PS-PVD Method
p.243

Non-Destructive Testing of Joints of Antifriction Parts Crimped by Pulsed Magnetic Deformation
p.248

Anti-Irradiation and Wear Resistance of Polyimide Composites
p.253

HomeSolid State PhenomenaSolid State Phenomena Vol. 267The Influence of Process Parameters on Structure...

The Influence of Process Parameters on Structure of Ceramic Coatings Deposited by PS-PVD Method

Abstract:

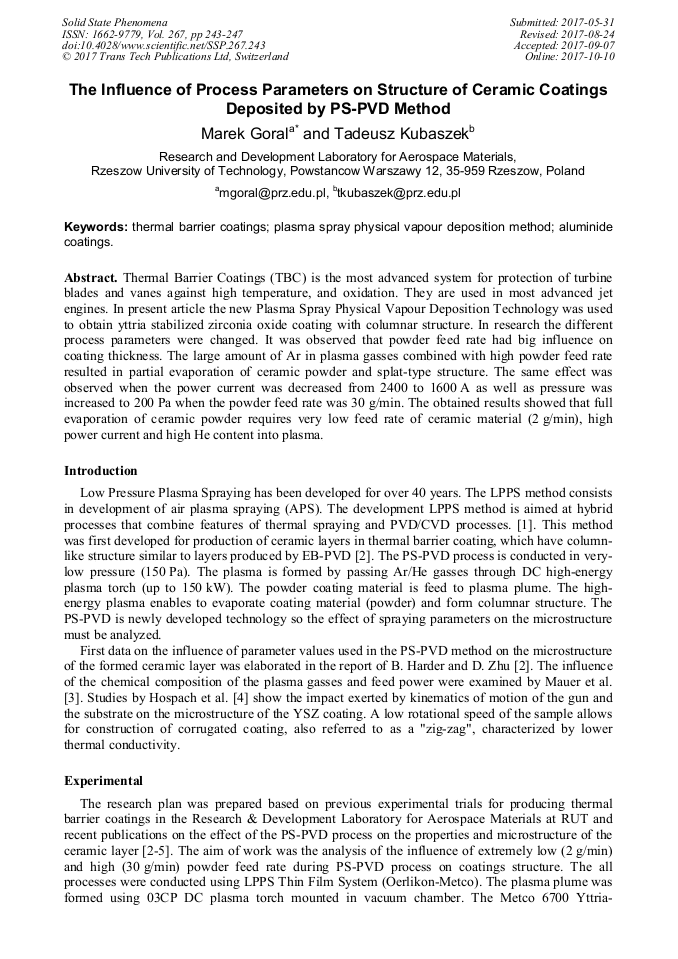

Thermal Barrier Coatings (TBC) is the most advanced system for protection of turbine blades and vanes against high temperature, and oxidation. They are used in most advanced jet engines. In present article the new Plasma Spray Physical Vapour Deposition Technology was used to obtain yttria stabilized zirconia oxide coating with columnar structure. In research the different process parameters were changed. It was observed that powder feed rate had big influence on coating thickness. The large amount of Ar in plasma gasses combined with high powder feed rate resulted in partial evaporation of ceramic powder and splat-type structure. The same effect was observed when the power current was decreased form 2400 to 1600 A as well as pressure was increased to 200 Pa when the powder feed rate was 30 g/min. The obtained results showed that full evaporation of ceramic powder requires very low feed rate of ceramic material (2 g/min), high power current and high He content into plasma.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 267)

Pages:

243-247

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.267.243

Citation:

Cite this paper

Online since:

October 2017

Authors:

Marek Goral*, Tadeusz Kubaszek

Keywords:

Aluminide Coatings, Plasma Spray Physical Vapour Deposition Method, Thermal Barrier Coatings (TBC)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] K. Von Niessen, M. Gindrat, A. Refke, Vapor phase deposition using plasma spray-pvd, J. Therm. Spray Techn. 19(1-2) (2010) 502-509.

DOI: 10.1007/s11666-009-9428-9

Google Scholar

[2] B.J. Harder, D. Zhu, Plasma Spray Physical Vapour Deposition (PS-PVD) of ceramics for protective coatings, NASA Technical Report, Glenn Research Center, (2011).

Google Scholar

[3] G. Mauer, A. Hospach, R. Vaßen, Process development and coating characteristics of plasma spray-PVD, Surface and Coatings Technology, 220 (2013) 219-224.

DOI: 10.1016/j.surfcoat.2012.08.067

Google Scholar

[4] A. Hospach, G. Mauer, R. Vaßen, D. Stöver, Characteristics of ceramic coatings made by thin film low pressure plasma spraying (LPPS-TF) J. Therm. Spray Techn. 21 (2012) 435-440.

DOI: 10.1007/s11666-012-9748-z

Google Scholar
