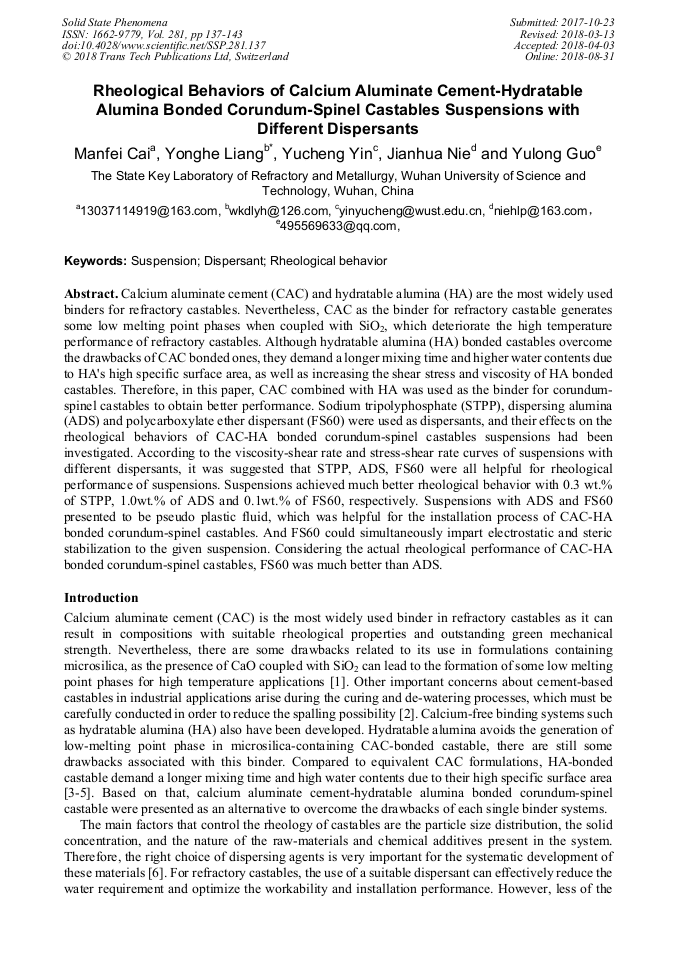

Rheological Behaviors of Calcium Aluminate Cement-Hydratable Alumina Bonded Corundum-Spinel Castables Suspensions with Different Dispersants

Abstract:

Calcium aluminate cement (CAC) and hydratable alumina (HA) are the most widely used binders for refractory castables. Nevertheless, CAC as the binder for refractory castable generates some low melting point phases when coupled with SiO₂, which deteriorate the high temperature performance of refractory castables. Although hydratable alumina (HA) bonded castables overcome the drawbacks of CAC bonded ones, they demand a longer mixing time and higher water contents due to HA's high specific surface area, as well as increasing the shear stress and viscosity of HA bonded castables. Therefore, in this paper, CAC combined with HA was used as the binder for corundum- spinel castables to obtain better performance. Sodium tripolyphosphate (STPP), dispersing alumina (ADS) and polycarboxylate ether dispersant (FS60) were used as dispersants, and their effects on the rheological behaviors of CAC-HA bonded corundum-spinel castables suspensions had been investigated. According to the viscosity-shear rate and stress-shear rate curves of suspensions with different dispersants, it was suggested that STPP, ADS, FS60 were all helpful for rheological performance of suspensions. Suspensions achieved much better rheological behavior with 0.3 wt.% of STPP, 1.0wt.% of ADS and 0.1wt.% of FS60, respectively. Suspensions with ADS and FS60 presented to be pseudo plastic fluid, which was helpful for the installation process of CAC-HA bonded corundum-spinel castables. And FS60 could simultaneously impart electrostatic and steric stabilization to the given suspension. Considering the actual rheological performance of CAC-HA bonded corundum-spinel castables, FS60 was much better than ADS.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 137-143
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.137
• Online since: August 2018
• Authors: Man Fei Cai, Yong He Liang*, Yu Cheng Yin, Jian Hua Nie, Yu Long Guo
• Keywords: Dispersant, Rheological Behavior, Suspension

References

[1] N.Traon, J.Schnieder, A.V. Weinberg, C.Thierry, Influence of andalusite, Al2O3-ZrO2-SiO2 and Al2O3-ZrO2 addition on elastic and mechanical properties of high alumina castables, Interceram International Ceramic Review, 63.6(2014):290-294.

DOI: 10.1007/bf03401073

[2] T.M. Souza, A.P. Luz, T.Santos Jr, D.C. Gimenes, M.M. Miglioli, A.M. Correa, V.C. Pandolfelli, Phosphate chemical binder as an anti-hydration additive for Al2O33MgO refractory castables, Ceramics International, 40.1(2014):1503-1512.

DOI: 10.1016/j.ceramint.2013.07.035

[3] M.Nouri-Khezrabad, M.A.L. Braulio, V.C. Pandolfelli， F.Golestani-Fard， H.R. Rezaie, Nano-bonded refractory castables, Ceramics International, 39.4(2013):3479-3497.

DOI: 10.1016/j.ceramint.2012.11.028

[4] G.Puerta-Falla, M.Balonis, G.L. Saout, G.Falzone, C Zhang, Elucidating the role of the aluminous source on limestone reactivity in cementitious materials, Journal of the American Ceramic Society 98.12(2016):4076-4089.

DOI: 10.1111/jace.13806

[5] M.A.L. Braulio, M.Rigaud, A.Buhr, C.Parr, V.C. Pandolfelli, Spinel-containing alumina-based refractory castables, Ceramics International, 37.6(2011):1705-1724.

DOI: 10.1016/j.ceramint.2011.03.049

[6] A.D.V. Souza, C.C. Arruda, L.Fernandes, M.L.P. Antunes, P.K. Kiyohara, Characterization of aluminum hydroxide (Al(OH)3) for use as a porogenic agent in castable ceramics, Journal of the European Ceramic Society, 35.2(2015):803-812.

DOI: 10.1016/j.jeurceramsoc.2014.09.010

[7] A.R. Studart, W Zhong, V.C. Pandolfelli, Rheological design of zero-cement self-flow castables. American Ceramic Society Bulletin, 78.5(1999), 65-72.

[8] J.A. Lewis, Colloidal processing of ceramics, Journal of the American Ceramic Society, 83.10(2000):2341-2359.

[9] H.Hommer. Polycarboxylate ether dispersants: interaction with microsilica containing low-cement castables. In proceedings of the UNITECR'09, (2009):1-4.
