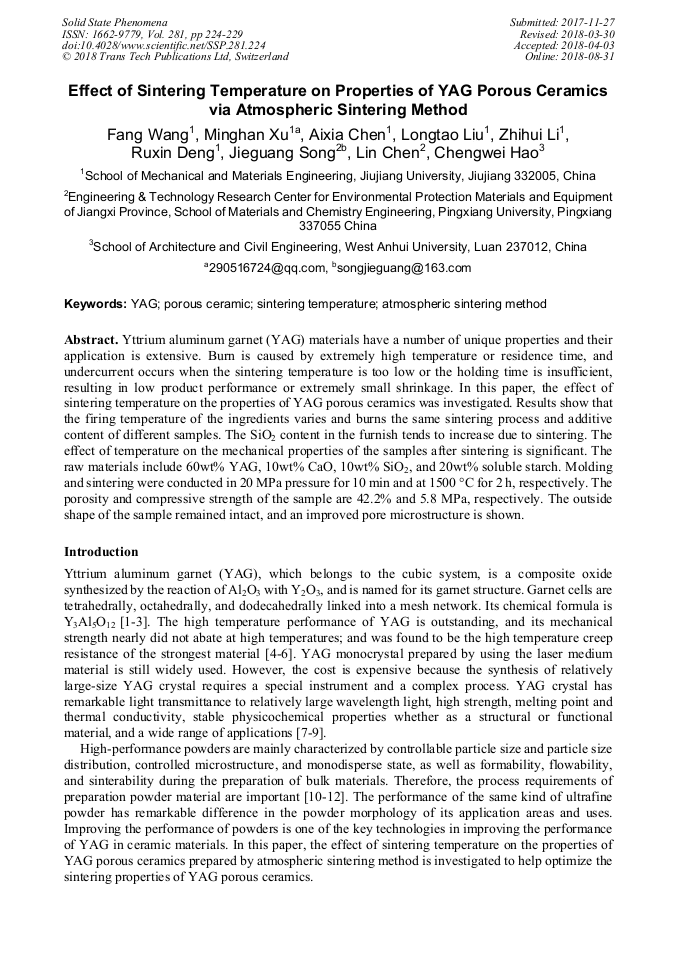

Effect of Sintering Temperature on Properties of YAG Porous Ceramics via Atmospheric Sintering Method

Abstract:

YAG materials have a number of unique properties, the application is very extensive, the burn is due to the temperature is too high or the residence time at high temperatures is caused. The undercurrent is the sintering temperature is too low or the holding time is not enough, resulting in product performance is too low or too small shrinkage. In this paper, the effect of sintering temperature on properties of YAG porous ceramics was investigated. The results showed that the firing temperature of the ingredients will be different and cause the same sintering process and sintering additives content of different samples burned. The increase in the content of SiO₂ in the furnish with the sintering aid tends to occur. the effect of temperature on the mechanical properties of the samples after sintering was significant, so the raw materials include 60wt%YAG, 10wt% CaO, 10wt% SiO₂ and 20wt% soluble starch, the molding process in 20MPa pressure 10min, the sintering at 1500°C for 2h, the sample porosity is 42.2%, the compressive strength is 5.8MPa, the outside shape is keep intact and the better pore microstructure is shown.

• Periodical: Solid State Phenomena (Volume 281)
• Pages: 224-229
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.281.224
• Online since: August 2018
• Authors: Fang Wang, Ming Han Xu*, Ai Xia Chen, Long Tao Liu, Zhi Hui Li, Ru Xin Deng, Jie Guang Song, Lin Chen, Cheng Wei Hao
• Keywords: Atmospheric Sintering Method, Porous Ceramic, Sintering Temperature, YAG

References

[1] J. Kraxner, J. Chovanec, K. Haladejova, I. Petrikova, D. Galusek, Hollow polycrystalline YAG microspheres by flame synthesis, Mater. Letts. 204 (2017) 181-183.

DOI: 10.1016/j.matlet.2017.05.108

[2] R. Marder, C. Estournes, G. Chevallier, Spark and plasma in spark plasma sintering of rigid ceramic nanoparticles:A model system of YAG, J. Eur. Ceram. Soc. 35 (2015) 211-218.

DOI: 10.1016/j.jeurceramsoc.2014.08.001

[3] V. Amarantov, N.M. Khamaletdinova, R.P Yavetskiy, Colloid chemical properties of binary sols as precursors for YAG optical ceramics, Ceram. Int. 42 (2016) 17571-17580.

DOI: 10.1016/j.ceramint.2016.08.071

[4] S. Hu, C. Lu, X. Liu, Z Xu, Optical temperature sensing based on the luminescence from YAG:Pr transparent ceramics, Optic. Mater. 60 (2016) 394-397.

DOI: 10.1016/j.optmat.2016.08.026

[5] A. Katz, E. Barraud, S. Lemonnier, E. Sorrel, A. Leriche, Role of LiF additive on spark plasma sintered transparent YAG ceramics, Ceram. Int. 43 (2017) 15626-15634.

DOI: 10.1016/j.ceramint.2017.08.119

[6] H.M. Wang, Z.Y. Huang, J.S. Jiang, Unique mechanical properties of nano-grained YAG transparent ceramics compared with coarse-grained partners, Mater. Design. 105 (2016) 9-15.

DOI: 10.1016/j.matdes.2016.04.094

[7] A. Poulia, P.M. Sakkas, D.G. Kanellopoulou, G. Sourkouni, C. Legros, Chr. Argirusis, Preparation of metal–ceramic composites by sonochemical synthesis of metallic nano-particles and in-situ decoration on ceramic powders, Ultrason. Sonochem. 31 (2016).

DOI: 10.1016/j.ultsonch.2016.01.031

[8] J.H Xu, K. Bandyopadhyay, D. Jung, Experimental investigation on the correlation between nano-fluid characteristics and thermal properties of Al2O3 nano-particles dispersed in ethylene glycol-water mixture, Int. J. Heat Mass Trans. 94 (2016).

DOI: 10.1016/j.ijheatmasstransfer.2015.11.056

[9] J.Y. Xu, B.L. Zou, S.Y. Tao, M.X. Zhang, X.Q. Cao, Fabrication and properties of Al2O3-TiB2-TiC/Al metal matrix composite coatings by atmospheric plasma spraying of SHS powders, J.Alloy. Compd. 672 (2016) 251-259.

DOI: 10.1016/j.jallcom.2016.02.116

[10] J.G. Song, F. Wang, M.H. Xu, Effect of synthesis conditions on the particle size and morphology of YAG powder, J. Ceram. Process. Res. 13 (2012) 154-157.

[11] T.Y. Zhou, L. Zhang, S. Wei, L.X. Wang, Q.T. Zhang, MgO assisted densification of highly transparent YAG ceramics and their microstructural evolution, J. Eur. Ceram. Soc. 38 (2018) 687-693.

DOI: 10.1016/j.jeurceramsoc.2017.09.017

[12] G.Q. Xie, D.V.L. Luzgin, F. Wakai, H. Kimura, A. Inoue, Microstructure and properties of ceramic particulate reinforced metallic glassy matrix composites fabricated by spark plasma sintering, Mater. Sci. Eng. B 148 (2008) 77-81.

DOI: 10.1016/j.mseb.2007.09.027

[13] M. Rahmani, O. Mirzaee, M. Tajally, M. Reza, L. Estarki, The effects of pH and excess Al3+ content on the microstructure and phase evolution of YAG polycrystals, Ceram. Int. 43 (2017)12563-12571.

DOI: 10.1016/j.ceramint.2017.06.131

[14] X.H. Su, J. Zhou, G. Bai, J. Zhang, P. Zhao, Low temperature synthesis and characterization of YAG nanopowders by polyacrylamide gel method, Ceram. Int. 42 (2016) 17497-17502.

DOI: 10.1016/j.ceramint.2016.08.058

[15] S. Bera, C.D. Nie, M.G. Soskind, Y. Li, E.G. Johnson, Growth and lasing of single crystal YAG fibers with different Ho3+ concentrations, Optic. Mater. 75 (2018) 44-48.

DOI: 10.1016/j.optmat.2017.09.048

[16] M.S. Asl, A.S. Namini, A. Motallebzadeh, M. Azadbeh, Effects of sintering temperature on microstructure and mechanical properties of spark plasma sintered titanium, Mater. Chem. Phys. 203 (2018) 266-273.

DOI: 10.1016/j.matchemphys.2017.09.069

[17] M.H. Xu, J.G Song, D.M. Du, F. Wang, Y.L Li, G.C Ji, F. Chen, The mechanism of controlling pore microstructure for YAG porous ceramics, Key Eng. Mater. 680 (2016) 216-219.

DOI: 10.4028/www.scientific.net/kem.680.216
