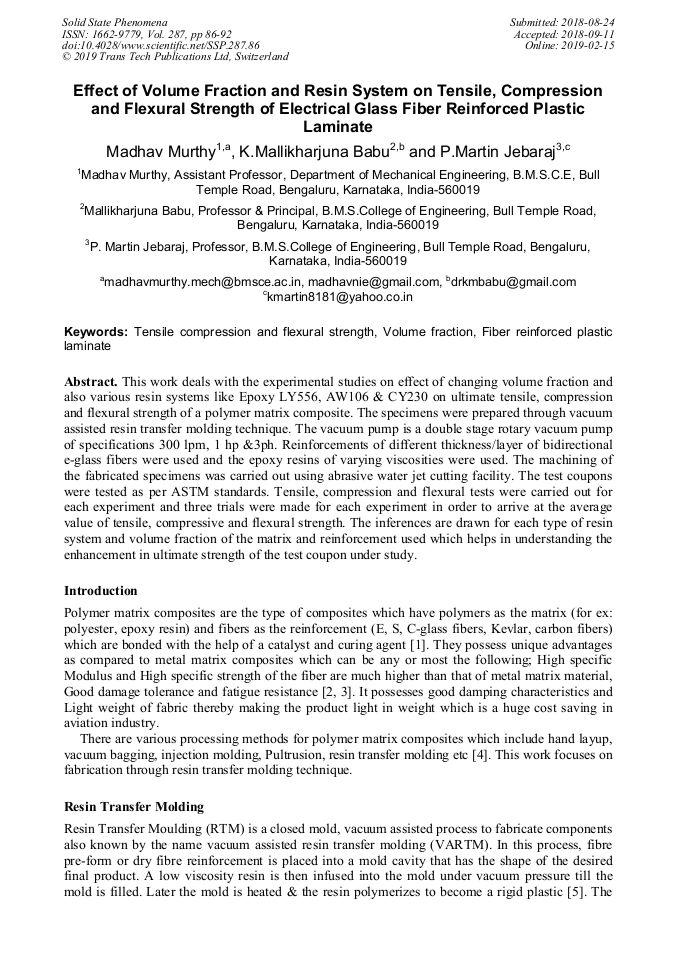

Effect of Volume Fraction and Resin System on Tensile, Compression and Flexural Strength of Electrical Glass Fiber Reinforced Plastic Laminate

Abstract:

This work deals with the experimental studies on effect of changing volume fraction and also various resin systems like Epoxy LY556, AW106 & CY230 on ultimate tensile, compression and flexural strength of a polymer matrix composite. The specimens were prepared through vacuum assisted resin transfer molding technique. The vacuum pump is a double stage rotary vacuum pump of specifications 300 lpm, 1 hp &3ph. Reinforcements of different thickness/layer of bidirectional e-glass fibers were used and the epoxy resins of varying viscosities were used. The machining of the fabricated specimens was carried out using abrasive water jet cutting facility. The test coupons were tested as per ASTM standards. Tensile, compression and flexural tests were carried out for each experiment and three trials were made for each experiment in order to arrive at the average value of tensile, compressive and flexural strength. The inferences are drawn for each type of resin system and volume fraction of the matrix and reinforcement used which helps in understanding the enhancement in ultimate strength of the test coupon under study.

• Periodical: Solid State Phenomena (Volume 287)
• Pages: 86-92
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.287.86
• Online since: February 2019
• Authors: Madhav Murthy*, K.Mallikharjuna Babu, Martin Jebraj
• Keywords: Fiber Reinforced Plastic Laminate, Flexural Strength, Tensile Compression, Volume Fraction

References

[1] P. K. Mallick, Fibre-Reinforced Composite – Material Manufacturing & Design, III Edition, CRC Press, Taylor & Francis Group, NY, (2007).

[2] Dr.V.P Raghupathy, Mechanics of Composite Materials, Subhas Publications(2009) pp.1-95.

[3] Madhujit Mukhopadhyay, Composite Materials & Structures, Universities Press Private Ltd(2009), pp.1-43.

[4] Suresh G. Advani & Kuang-Ting Hsiao, Manufacturing Techniques for Polymer Matrix Composites (PMCs), I Edition, Woodhead Publications Ltd., 2012 pp.1-4.

DOI: 10.1533/9780857096258.1.1

[5] Kevin Potter, Resin Transfer Molding, Chapman & Hall Publications, First edition 1997 pp.1-24.

[6] A. Goren, C. Atas, Manufacturing of polymer matrix composites using vacuum assisted resin infusion molding, Archives of Materials Science and Engineering, Volume 34 Issue 2 December 2008, Pages 117-120.

[7] Madhav Murthy, K. Mallikharjuna Babu, P. Martin Jebaraj, Design and Fabrication of a Leak Proof Vacuum Assisted Resin Transfer Mold for manufacturing Fiber Reinforced Plastic Laminate using Product Design Approach, International Conference for Phoenixes on Emerging Current Trends in Engineering and Management (PECTEAM 2018)- Advances in Engineering Research (AER), volume 142.

DOI: 10.2991/pecteam-18.2018.45

[8] Murat Danisman, Goker Tuncol, Alper Kaynar, E. Murat Sozer Monitoring of resin flow in the resin transfer molding (RTM) process using point-voltage sensors, Composites Science and Technology 67 (2007) 367–379.

DOI: 10.1016/j.compscitech.2006.09.011

[9] E. Ruiz, V. Achim , S. Soukane , F. Trochu , J. Bre´ard, Optimization of injection flow rate to minimize micro/macro-voids formation in resin transfer molded composites, Composites Science and Technology 66 (2006) 475–486.

DOI: 10.1016/j.compscitech.2005.06.013

[10] Jean Sébastien Leclerc, Edu Ruiz, Porosity reduction using optimized flow velocity in Resin Transfer Molding, Composites: Part A 39 (2008) 1859–1868.

DOI: 10.1016/j.compositesa.2008.09.008

[11] Ali Al Omari, Effect of vacuum level on the vacuum assisted resin transfer molding process,, Master Degree Thesis of Applied science at Concordia University, Montreal, Quebec Canada, (1999).

[12] Moon Koo Kang, Jae Joon Jung, Woo Il Lee, Analysis of resin transfer moulding process with controlled multiple gates resin injection, Composites: Part A 31 (2000) 407–422.

DOI: 10.1016/s1359-835x(99)00086-x

[13] M. Akif Yalcinkaya a,b, E. Murat Sozer a, M. Cengiz Altan, Fabrication of high quality composite laminates by pressurized and heated-VARTM, Composites: Part A 102 (2017) 336–346.

DOI: 10.1016/j.compositesa.2017.08.017

[14] Jing Li, Chuck Zhang, Richard Liang, Ben Wang Statistical characterization and robust design of RTM processes, Composites: Applied science and Manufacturing Part A 36 (2005) 564–580.

DOI: 10.1016/j.compositesa.2004.10.001

[15] TsutaoKatayama, Tomohide Omiya, Itaru Amano, Tatsuya Tanaka, Kouji Kuroda, A study on the characteristics of glass fibre reinforced thermoplastics by transfer moulding, Composite Structures, Volume 32, Issues 1–4, 1995, Pages 531-539.

DOI: 10.1016/0263-8223(95)00037-2
