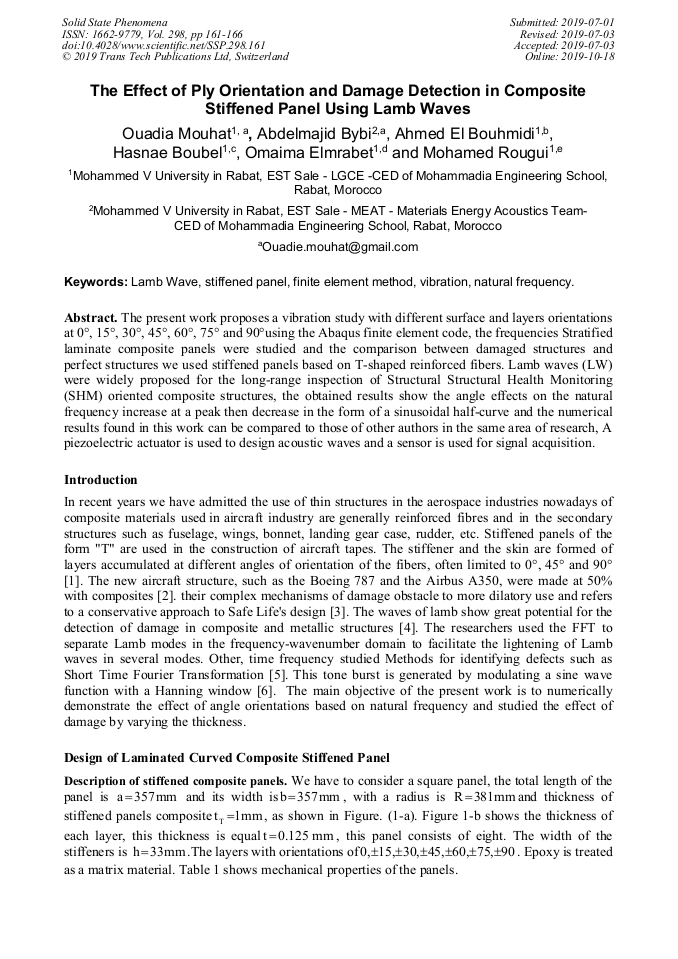

The Effect of Ply Orientation and Damage Detection in Composite Stiffened Panel Using Lamb Waves

Abstract:

The present work proposes a vibration study with different surface and layers orientations at 0°, 15°, 30°, 45°, 60°, 75° and 90°using the Abaqus finite element code, the frequencies Stratified laminate composite panels were studied and the comparison between damaged structures and perfect structures we used stiffened panels based on T-shaped reinforced fibers. Lamb waves (LW) were widely proposed for the long-range inspection of Structural Structural Health Monitoring (SHM) oriented composite structures, the obtained results show the angle effects on the natural frequency increase at a peak then decrease in the form of a sinusoidal half-curve and the numerical results found in this work can be compared to those of other authors in the same area of ​​research, A piezoelectric actuator is used to design acoustic waves and a sensor is used for signal acquisition.

• Periodical: Solid State Phenomena (Volume 298)
• Pages: 161-166
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.298.161
• Online since: October 2019
• Authors: Ouadia Mouhat*, Abdelmajid Bybi, Ahmed El Bouhmidi, Hasnae Boubel, Omaima Elmrabet, Mohamed Rougui
• Keywords: Finite Element Method, Lamb Wave, Natural Frequency, Stiffened Panel, Vibration

References

[1] D.Liu V.V. Toropov, M.Zhou, D.Barton, Optimization of blended composite wing panels using smeared stiffness technique and lamination parameters, In Proceedings of the 51st AIAA Structures, Structural Dynamics, and Materials Conference, Orlando, Florida, April (2010).

DOI: 10.2514/6.2010-3079

[2] W.J. Staszewski, S. Mahzan, R.Traynor,Health monitoring of aerospace composite structures – Active and passive approach,J. Composites Science and Technology.69 (2009) 1678-1685.

DOI: 10.1016/j.compscitech.2008.09.034

[3] Z. Tian, L.Yu, and C.Leckey, Guided wave propagation study on laminated composite by frequency-wavenumber technique, Report, NASA Langley Research Center, (2015).

[4] Su, Zhongqing, Ye, Lin, Lu, Ye, Guided Lamb waves for identification of damage in composite Structures: A review. J. sound and vibration. 295 (2006) 753-780.

DOI: 10.1016/j.jsv.2006.01.020

[5] K.Yoon Y.Kim, E.Hun, Effectiveness of the continuous wavelet transform in the analysis of some dispersive elastic waves. The Journal of the Acoustical Society of America, 110 (2001) 86-94.

DOI: 10.1121/1.1378348

[6] M.D. Rogge, and C.A.C. Leckey, Characterization of impact damage in composite laminates Using guided wave field imaging and local wave number domain analysis. J.ultrasonics, 53 (2013) 1217-1226.

DOI: 10.1016/j.ultras.2012.12.015
