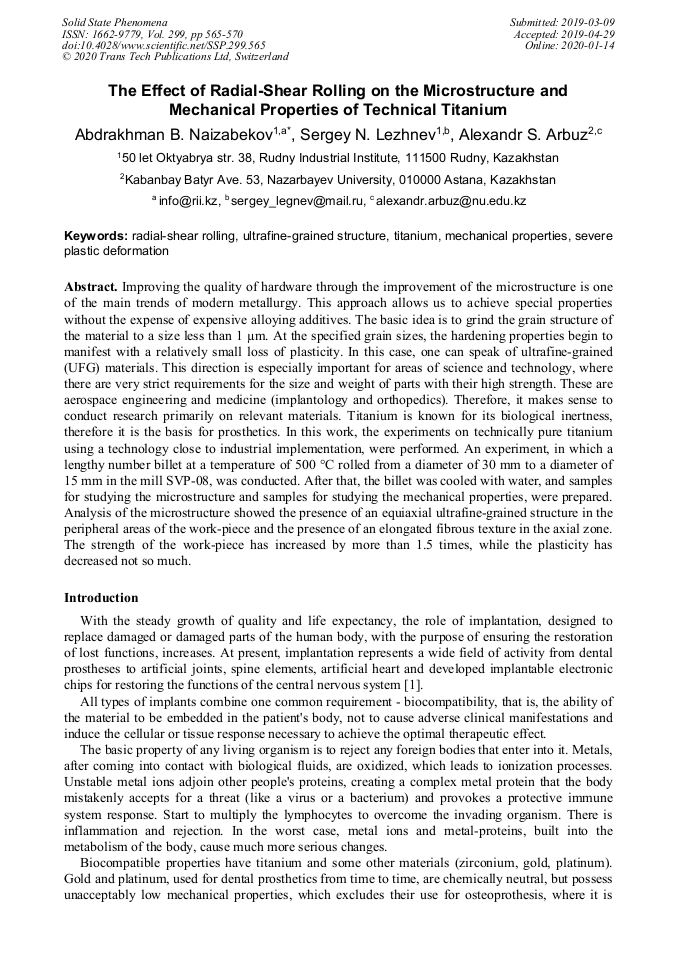

The Effect of Radial-Shear Rolling on the Microstructure and Mechanical Properties of Technical Titanium

Abstract:

Improving the quality of hardware through the improvement of the microstructure is one of the main trends of modern metallurgy. This approach allows us to achieve special properties without the expense of expensive alloying additives. The basic idea is to grind the grain structure of the material to a size less than 1 μm. At the specified grain sizes, the hardening properties begin to manifest with a relatively small loss of plasticity. In this case, one can speak of ultrafine-grained (UFG) materials. This direction is especially important for areas of science and technology, where there are very strict requirements for the size and weight of parts with their high strength. These are aerospace engineering and medicine (implantology and orthopedics). Therefore, it makes sense to conduct research primarily on relevant materials. Titanium is known for its biological inertness, therefore it is the basis for prosthetics. In this work, the experiments on technically pure titanium using a technology close to industrial implementation, were performed. An experiment, in which a lengthy number billet at a temperature of 500 °C rolled from a diameter of 30 mm to a diameter of 15 mm in the mill SVP-08, was conducted. After that, the billet was cooled with water, and samples for studying the microstructure and samples for studying the mechanical properties, were prepared. Analysis of the microstructure showed the presence of an equiaxial ultrafine-grained structure in the peripheral areas of the work-piece and the presence of an elongated fibrous texture in the axial zone. The strength of the work-piece has increased by more than 1.5 times, while the plasticity has decreased not so much.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 565-570
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.565
• Online since: January 2020
• Authors: A. B. Naizabekov*, Sergey N. Lezhnev, Alexandr S. Arbuz
• Keywords: Mechanical Properties, Radial-Shear Rolling, Severe Plastic Deformation, Titanium, Ultrafine-Grained Structure

References

[1] M Navarro, A. Michiardi, O Castaño and J.A Planell, Biomaterials in orthopaedics, J. R. Soc. Interface 5 (2008) 1137-1158.

DOI: 10.1098/rsif.2008.0151

[2] D. Olmedo, M. B. Guglielmotti, R. L. Carbini, An experimental study of the dissemination of Titanium and Zirconium in body, Journal of materials science: Materials in medicine, 13 (2002) 793-796.

[3] H. Matsuno, A.Yokoyama, F. Watari, M. Uo, T. Kawasaki, Biocompatibility and osteogenesis of refractory metal implants, titanium, hafnium, niobium, tantalum and rhenium, Biomaterials, 22 (2001) 1253-1262.

DOI: 10.1016/s0142-9612(00)00275-1

[4] Y. H. Jeong, K. OkLee, H. G. Kim, Correlation between microstructure and corrosion behavior of Zr–Nb binary alloy, Journal of Nuclear Materials, 302 (2002) 9-19.

DOI: 10.1016/s0022-3115(02)00703-1

[5] I.C. Clarke, M. Manaka, D.D. Green, MS, P. William S., G. Pezzotti, Y.-H. Kim, M. Ries, N. Sugano, L. Sedel, C. Delauney, B. Ben Nissan, T. Donaldson, G.A. Gustafson, Current Status of Zirconia Used in Total Hip Implants, J Bone Joint Surg Am. 85-4 (2003) 73-84.

DOI: 10.2106/00004623-200300004-00009

[6] R.Z. Valiev, R.K. Islamgaliev, I.V. Alexandrov, Bulk nanostructured materials from severe plastic deformation, Progress in Materials Science, 45-2 (2000) 103-189.

DOI: 10.1016/s0079-6425(99)00007-9

[7] T. G. Langdon, The characteristics of grain refinement in materials processed by severe plastic deformation, Rev. Adv. Mater. Sci., 13 (2000) 6-14.

[8] C. Xu, Z. Horita, T.G. Langdon, The evolution of homogeneity in processing by high-pressure torsion, Acta Materialia, 55-1(2007) 203-212.

DOI: 10.1016/j.actamat.2006.07.029

[9] A. Naizabekov, S. Lezhnev, K. Tsay, A.Arbuz, Effect of cross rolling on the microstructure of steel, Nanocon 2015, 7th International Conference on Nanomaterials - Research & Application, Brno, Czech Republic, EU, (2015).

[10] A. Balyanov, J. Kutnyakova, N.A. Amirkhanova, V.V. Stolyarov, R.Z. Valiev, X.Z. Liao, Y.H. Zhao, Y.B. Jiang, H.F. Xu, T.C. Lowe, Y.T. Zhu, Corrosion resistance of ultra fine-grained Ti, Scripta Materialia, 51 (2004) 225–229.

DOI: 10.1016/j.scriptamat.2004.04.011

[11] C.S. Meredith, A.S. Khan, Texture evolution and anisotropy in the thermo-mechanical response of UFG Ti processed via equal channel angular pressing, International Journal of Plasticity, 30–31 (2012) 202–217.

DOI: 10.1016/j.ijplas.2011.10.006

[12] G.I. Raab, R.Z. Valiev, D.V. Gunderov, T.C. Lowe, A. Misra, Y.T. Zhu, Long-length Ultrafine-grained Titanium Rods produced by ECAP-Conform, Materials Science Forum, 584-586 (2008) 80-85.

DOI: 10.4028/www.scientific.net/msf.584-586.80

[13] R.Z. Valiev, T.G. Langdon, Principles of equal-channel angular pressing as a processing tool for grain refinement, Progress in Materials Science, 51 (2006) 881–981.

DOI: 10.1016/j.pmatsci.2006.02.003

[14] H. Dyja, A. Kawałek, A. Galkin, K. Ozhmegov, S. Sawicki, Physical modelling of the multi-pass forging of zirconium alloy blanks, Proceedings of 23rd International Conference on Metallurgy and Materials, METAL 2014; Brno; Czech Republic, (2014) 402-406.

DOI: 10.2478/amm-2014-0157

[15] R. Skoblik, D. Rydz, G. Stradomski, Analysis of asymmetrical rolling process of multilayer plates, Solid State Phenomena, 165 (2010) 348-352.

DOI: 10.4028/www.scientific.net/ssp.165.348

[16] M. Knapiński, H. Dyja, A. Kawałek, M. Kwapisz, B. Koczurkiewicz, Physical simulations of the controlled rolling process of plate X100 with accelerated cooling, Solid State Phenomena, 199 (2013) 484-489.

DOI: 10.4028/www.scientific.net/ssp.199.484

[17] N.V. Lopatin, G.A. Salishchev, S.P. Galkin, Mathematical modeling of radial-shear rolling of the VT6 titanium alloy under conditions of formation of a globular structure, Russian Journal of Non-Ferrous Metals, 52-5 (2011) 442-447.

DOI: 10.3103/s1067821211050075

[18] S.P. Galkin, Radial shear rolling as an optimal technology for lean production, Steel in Translation, 44-1 (2014) 61-64.

DOI: 10.3103/s0967091214010069

[19] H. Dyja, A. Kawalek, K. Ozhmegov, S. Sawicki, K. Laber, Physical modelling of the zirconium alloy tube pilger rolling process, Proceedings of 26th International Conference on Metallurgy and Materials, METAL 2017; Brno; Czech Republic, (2017) 1701-1707.

[20] S.P. Galkin R.F. Patent №2293619 (2007).

[21] S. Dobatkin, S. Galkin, Y. Estrin, V. Serebryany, M. Diez, N. Martynenko, E. Lukyanova, V. Perezhogin, Grain refinement, texture, and mechanical properties of a magnesium alloy after radial-shear rolling, Journal of Alloys and Compounds 774, 5 (2019) 969-979.

DOI: 10.1016/j.jallcom.2018.09.065
