Structure and Phase Composition of Ni-Al-Co-Mе-Based Alloy Containing Rhenium and Ruthenium

Article Preview

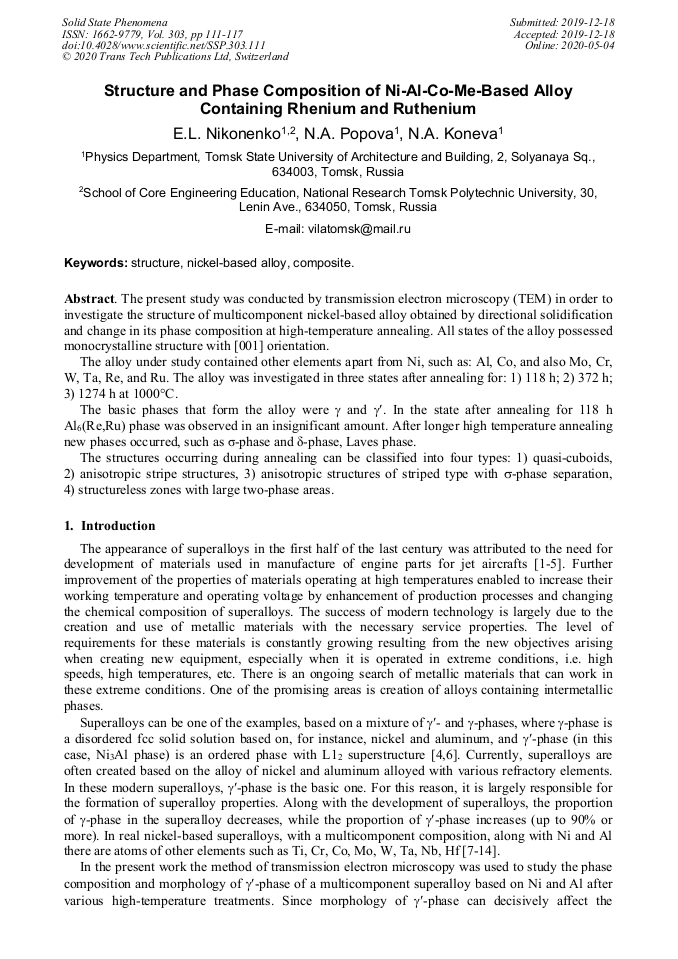

Abstract:

The present study was conducted by transmission electron microscopy (TEM) in order to investigate the structure of multicomponent nickel-based alloy obtained by directional solidification and change in its phase composition at high-temperature annealing. All states of the alloy possessed monocrystalline structure with [001] orientation. The alloy under study contained other elements apart from Ni, such as: Al, Co, and also Mo, Cr, W, Ta, Re, and Ru. The alloy was investigated in three states after annealing for: 1) 118 h; 2) 372 h; 3) 1274 h at 1000°С. The basic phases that form the alloy were γ and γ′. In the state after annealing for 118 h Al6(Re,Ru) phase was observed in an insignificant amount. After longer high temperature annealing new phases occurred, such as σ-phase and δ-phase, Laves phase. The structures occurring during annealing can be classified into four types: 1) quasi-cuboids, 2) anisotropic stripe structures, 3) anisotropic structures of striped type with σ-phase separation, 4) structureless zones with large two-phase areas.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volume 303)

Pages:

111-117

Citation:

Online since:

May 2020

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2020 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Kolobov Y, Kablov E, Kozlov E et all 2008 Structure and properties of intermetallic materials with nanophase strengthening (Мoscow: Izd dom MISiS) p.328.

Google Scholar

[2] Kozlov E, Smirnov A, Nikonenko E, Popova N and Koneva N 2016 Phase morphology and transformation at thermal treatment of Ni-Al-Cr-based and Ni-Al-Co-based superalloys. Scale-level and concentration effects (Moscow: Innovational Engineering) p.175.

DOI: 10.1063/1.4937823

Google Scholar

[3] Pollock T M 2016 Nat. Mater. 15 809-815.

Google Scholar

[4] Reed R C 2008 The Superalloys: Fundamentals and Applications (Cambridge University Press).

Google Scholar

[5] Caron P and Khan T 1999 Aero. Sci. Technol. 3 513-523.

Google Scholar

[6] Pollock T M and Tin S 2006 J. Propul. Power 22 361-374.

Google Scholar

[7] Lee C S 1971 Precipitation-Hardening Characteristics of Ternary CobaltAluminum-X Alloys (TheUniversity of Arizona).

Google Scholar

[8] Sato J, Omori T, Oikawa K, Ohnuma I, Kainuma R and Ishida K 2006 Science 312 90-91.

DOI: 10.1126/science.1121738

Google Scholar

[9] Suzuki A, Inui H, Pollock T M 2015 Annu. Rev. Mater. Res. 45 345-368.

Google Scholar

[10] Makineni S K, Nithin B and Chattopadhyay K 2015 Scripta Mater. 98 36-39.

Google Scholar

[11] Reed R C, Tao T and Warnken 2009 Acta Mater. 57 5898-5913.

Google Scholar

[12] Suzuki A 2000 Annual Review of Materials Research 737-746.

Google Scholar

[13] Kawagishi K, Harada H, Sato A, Sato A and Kobayashi T 2006 JOM 58 43-46.

Google Scholar

[14] Erickson G L 1995 JOM 47 36-39.

Google Scholar

[15] Hirsh P B, Howie A., Nicholson R B, Pashley D W and Whelan M J 1968 Electron microscopy of thin crystals (Wiley, Moscow) 574 p.

Google Scholar

[16] Diagrams of Binary Metallic Systems 2000 (Directory Vol 1-3) ed N P Lyakishev (Moscow: Mechanical Engineering).

Google Scholar

[17] Sims C T, Stoloff N S and Hagel W C 1986 Superalloys II (Wiley New York).

Google Scholar

[18] Durand-Charre M 1997 The Microstructure of Superalloys (Amsterdam: Gordon and Breach).

Google Scholar

[19] Booth-Morrison C, Mao Z, Noebe R Seidman D.N., 2008 Appl. Phys. Lett. 93 033103.

Google Scholar

[20] Oni A A, Broderick S R, Rajan K and LeBeau J M 2016 Intermetallics 73 72–78.

Google Scholar

[21] Amouyal Y, Mao Z, Booth-Morrison C and Seidman D N 2009 Appl. Phys. Lett. 94 041917.

Google Scholar

[22] Zhou Y, Mao Z, Booth-Morrison C and Seidman D N 2008 Appl. Phys. Lett. 93 171905.

Google Scholar

[23] Tu Y, Mao Z and Seidman D N 2012 Appl. Phys. Lett. 101 121910.

Google Scholar

[24] Jiang C and Gleeson B 2006 Scr. Mater. 55 433–436.

Google Scholar

[25] Wu Q. and Li S 2012 Comput. Mater. Sci. 53 436–443.

Google Scholar

[26] Chaudhari M, Singh A, Gopal P, Nag S, Viswanathan G B, Tiley J, Banerjee R and Du J 2012 Phil. Mag. Lett. 92 495–506.

Google Scholar

[27] Eriş R, Mekhrabov A O and Akdeniz M V 2017 Philos. Mag. 97 (29) 2615–2631.

Google Scholar

[28] Zhao W, Sun Z and Gong S 2015 Intermetallics 65 75–80.

Google Scholar

[29] Miller M K, Jayaram R, Lin L S and Cetel A D 1994 Appl. Surf. Sci. 76 172–176.

Google Scholar

[30] Meher S, Rojhirunsakool T, Nandwana P, Tiley J and Banerjee R 2015 Ultramicroscopy 159 272–277.

DOI: 10.1016/j.ultramic.2015.04.015

Google Scholar

[31] Liu S.H, Liu C.P, Liu W.Q., Zhang X.N, Yan P. and Wang C.Y. 2016 Philos. Mag. 96 2204-2218.

Google Scholar
