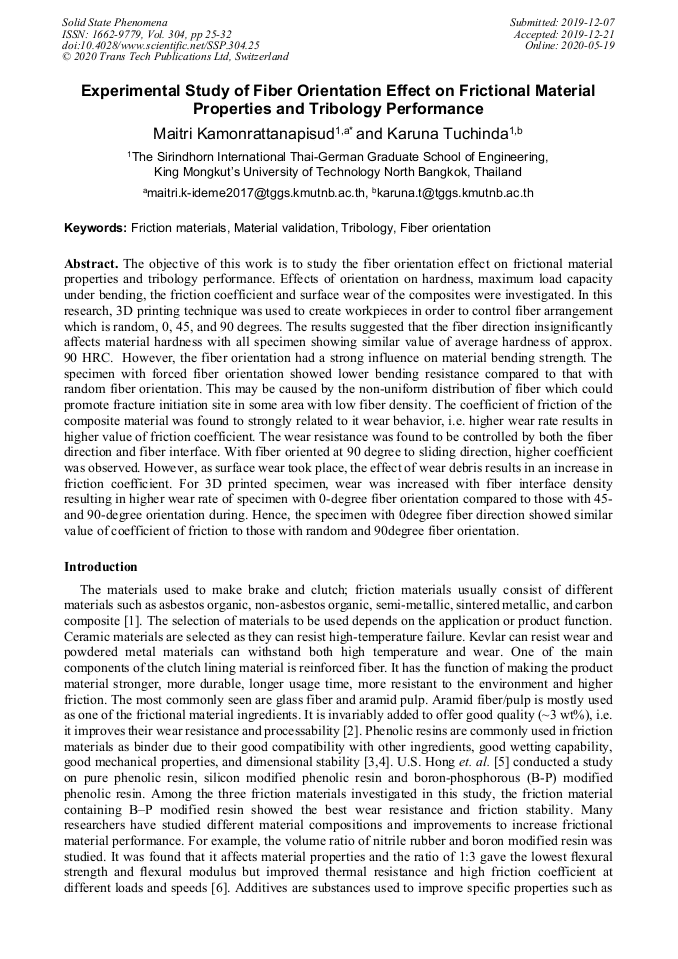

Experimental Study of Fiber Orientation Effect on Frictional Material Properties and Tribology Performance

Abstract:

The objective of this work is to study the fiber orientation effect on frictional material properties and tribology performance. Effects of orientation on hardness, maximum load capacity under bending, the friction coefficient and surface wear of the composites were investigated. In this research, 3D printing technique was used to create workpieces in order to control fiber arrangement which is random, 0, 45, and 90 degrees. The results suggested that the fiber direction insignificantly affects material hardness with all specimen showing similar value of average hardness of approx. 90 HRC. However, the fiber orientation had a strong influence on material bending strength. The specimen with forced fiber orientation showed lower bending resistance compared to that with random fiber orientation. This may be caused by the non-uniform distribution of fiber which could promote fracture initiation site in some area with low fiber density. The coefficient of friction of the composite material was found to strongly related to it wear behavior, i.e. higher wear rate results in higher value of friction coefficient. The wear resistance was found to be controlled by both the fiber direction and fiber interface. With fiber oriented at 90 degree to sliding direction, higher coefficient was observed. However, as surface wear took place, the effect of wear debris results in an increase in friction coefficient. For 3D printed specimen, wear was increased with fiber interface density resulting in higher wear rate of specimen with 0-degree fiber orientation compared to those with 45-and 90-degree orientation during. Hence, the specimen with 0 degree fiber direction showed similar value of coefficient of friction to those with random and 90 degree fiber orientation.

• Periodical: Solid State Phenomena (Volume 304)
• Pages: 25-32
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.304.25
• Online since: May 2020
• Authors: Maitri Kamonrattanapisud*, Karuna Tuchinda
• Keywords: Fiber Orientation, Friction Materials, Material Validation, Tribology

References

[1] H. Jang, Brake Friction Materials, Encyclopedia of Tribology, (2013) 263–273.

[2] N. Aranganathan, V. Mahale, J. Bijwe, Effects of aramid fiber concentration on the friction and wear characteristics of non-asbestos organic friction composites using standardized braking tests, Wear 354-355 (2016) 69-77.

DOI: 10.1016/j.wear.2016.03.002

[3] PV. Gurunath, J. Bijwe, Friction and wear studies on brake-pad materials based on newly developed resin. Wear 263 (2007) 1212-1219.

DOI: 10.1016/j.wear.2006.12.050

[4] J. Kajohnchaiyagual, C. Jubsilp, I. Dueramae, S. Rimdusit, Thermal and mechanical properties enhancement obtained in highly filled alumina-polybenzoxazine composites, Polym Compos 35 (2014) 2269–2279.

DOI: 10.1002/pc.22892

[5] U.S. Hong, S.L. Jung, K.H. Cho, M.H. Cho, S.J. Kim, H. Jang, Wear mechanism of multiphase friction materials with different phenolic resin matrices, Wear 266 (2009) 739-744.

DOI: 10.1016/j.wear.2008.08.008

[6] P. Cai, Y. Wang, T. Wang, Q. Wang, Effect of resins on thermal, mechanical and tribological properties of friction materials, Tribology International 87 (2015) 1-10.

DOI: 10.1016/j.triboint.2015.02.007

[7] D. Chan and G.W. Stachowiak, 2004, Review of automotive brake friction materials, D13103 IMech E, Proc.Instn Mech. Engrs Vol.218, Part D: J. Automobile Engineering, 2004, pp.933-945.

[8] P. Painter, P. Opaprakasit, M. Sobkowiak and A. Scaroni, Phenolic resins as models for the structure of coal, Energy Institute Penn State University Park, PA 16802, pp.597-600.

[9] P. Cai, Y. Wang, T. Wang, Q. Wang, Improving tribological behaviors of friction material by mullite, Tribology International 93 (2016) 282–288.

DOI: 10.1016/j.triboint.2015.09.039

[10] W. Lertwassanaa, T. Parnklanga, P. Moraa, C. Jubsilpc, S. Rimdusit, High performance aramid pulp/carbon fiber-reinforced polybenzoxazine composites as friction materials, Composites PartB 177 (2019) 107280.

DOI: 10.1016/j.compositesb.2019.107280

[11] G. Richard and J. Gould, TH Patent 24801 (1997).

[12] T. Ikeda and others, TH Patent 143248 (2016).
