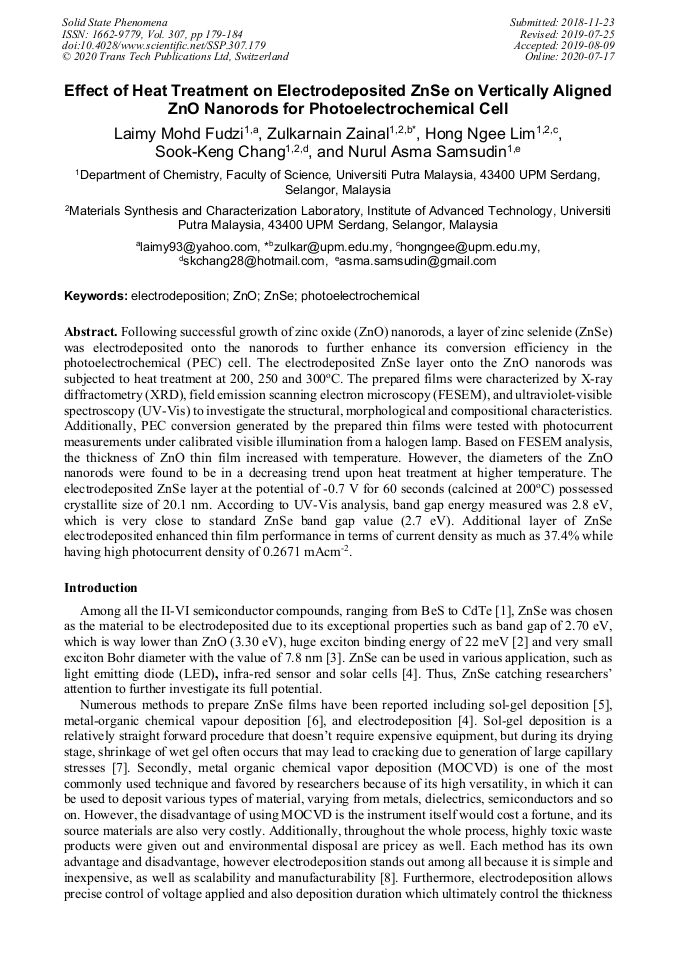

Effect of Heat Treatment on Electrodeposited ZnSe on Vertically Aligned ZnO Nanorods for Photoelectrochemical Cell

Abstract:

Following successful growth of zinc oxide (ZnO) nanorods, a layer of zinc selenide (ZnSe) was electrodeposited onto the nanorods to further enhance its conversion efficiency in the photoelectrochemical (PEC) cell. The electrodeposited ZnSe layer onto the ZnO nanorods was subjected to heat treatment at 200, 250 and 300°C. The prepared films were characterized by X-ray diffractometry (XRD), field emission scanning electron microscopy (FESEM), and ultraviolet-visible spectroscopy (UV-Vis) to investigate the structural, morphological and compositional characteristics. Additionally, PEC conversion generated by the prepared thin films were tested with photocurrent measurements under calibrated visible illumination from a halogen lamp. Based on FESEM analysis, the thickness of ZnO thin film increased with temperature. However, the diameters of the ZnO nanorods were found to be in a decreasing trend upon heat treatment at higher temperature. The electrodeposited ZnSe layer at the potential of -0.7 V for 60 seconds (calcined at 200°C) possessed crystallite size of 20.1 nm. According to UV-Vis analysis, band gap energy measured was 2.8 eV, which is very close to standard ZnSe band gap value (2.7 eV). Additional layer of ZnSe electrodeposited enhanced thin film performance in terms of current density as much as 37.4% while having high photocurrent density of 0.2671 mAcm^-2.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 307)

Pages:

179-184

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.307.179

Citation:

Cite this paper

Online since:

July 2020

Authors:

Laimy Mohd Fudzi, Zulkarnain Zainal*, Hong Ngee Lim, Sook Keng Chang, Asma Samsudin

Keywords:

Electrodeposition, Photoelectrochemical, ZnO, ZnSe

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] I. Hernández-Calderón, Epitaxial growth of thin films and quantum structures of II–VI visible-bandgap semiconductors, Molecular Beam Epitaxy. (2013) 311-346.

DOI: 10.1016/b978-0-12-387839-7.00014-2

Google Scholar

[2] S.S. Florence, M. Umadevi, R. John, and D.L. Arockiasamy, Synthesis of gallic acid capped ZnSe transparent nanorods, Materials Letters. 115 (2014) 34-37.

DOI: 10.1016/j.matlet.2013.10.028

Google Scholar

[3] P.T. Chin, J.W. Stouwdam, and R.A. Janssen, Highly luminescent ultranarrow Mn doped ZnSe nanowires, Nano letters. 9.2 (2009) 745-750.

DOI: 10.1021/nl8033015

Google Scholar

[4] V. Dhanasekaran, T. Mahalingam, J.K. Rhee and J.P. Chu, Structural and optical properties of electrosynthesized ZnSe thin films, Optik-International Journal for Light and Electron Optics. 124(3) (2013) 55-260.

DOI: 10.1016/j.ijleo.2011.11.063

Google Scholar

[5] H. Hao, X. Yao and M. Wang, Preparation and optical characteristics of ZnSe nanocrystals doped glass by sol–gel in situ crystallization method, Optical Materials. 29(5) (2007) 573-577.

DOI: 10.1016/j.optmat.2005.09.082

Google Scholar

[6] X.T. Zhang, K.M. Ip, Z. Liu, Y.P. Leung, Q. Li and S.K. Hark, Structure and photoluminescence of ZnSe nanoribbons grown by metal organic chemical vapor deposition, Applied physics letters. 84(14) (2004) 2641-2643.

DOI: 10.1063/1.1695096

Google Scholar

[7] C.B. Carter and M.G. Norton, Sols, gels, and organic chemistry, Ceramic Materials, Springer, New York, NY (2013) 411-422.

DOI: 10.1007/978-1-4614-3523-5_22

Google Scholar

[8] I.M. Dharmadasa and J. Haigh, Strengths and advantages of electrodeposition as a semiconductor growth technique for applications in macroelectronic devices, Journal of the Electrochemical Society. 153.1 (2006) G47-G52.

DOI: 10.1149/1.2128120

Google Scholar

[9] A. Salem, E. Saion, N.M. Al-Hada, H.M. Kamari, A.H. Shaari and S. Radiman, Simple synthesis of ZnSe nanoparticles by thermal treatment and their characterization, Results in Physics. 7 (2017) 1175-1180.

DOI: 10.1016/j.rinp.2017.03.011

Google Scholar

[10] P. Chen, L. Gu and X. Cao, From single ZnO multipods to heterostructured ZnO/ZnS, ZnO/ZnSe, ZnO/Bi 2 S 3 and ZnO/Cu 2 S multipods: controlled synthesis and tunable optical and photoelectrochemical properties, CrystEngComm. 12.11 (2010) 3950-3958.

DOI: 10.1039/c001615b

Google Scholar

[11] L.M. Fudzi, Z. Zainal, H.N. Lim, S.K. Chang, A.M. Holi, M. Sarif, M. and M. Ali, Effect of Temperature and Growth Time on Vertically Aligned ZnO Nanorods by Simplified Hydrothermal Technique for Photoelectrochemical Cells, Materials. 11(5) (2018).

DOI: 10.3390/ma11050704

Google Scholar
