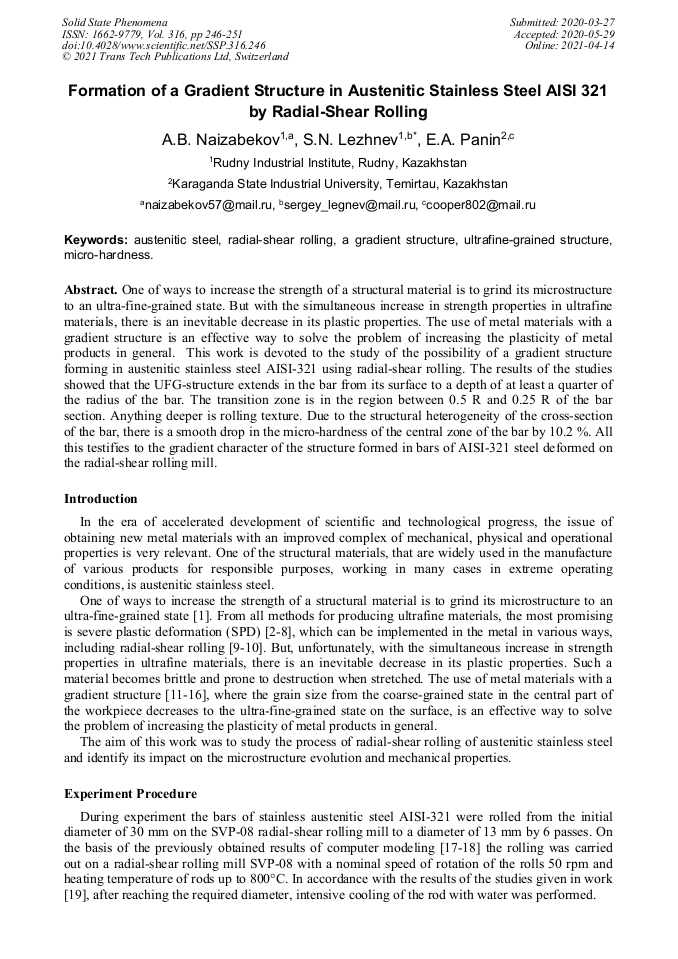

Formation of a Gradient Structure in Austenitic Stainless Steel AISI 321 by Radial-Shear Rolling

Abstract:

One of ways to increase the strength of a structural material is to grind its microstructure to an ultra-fine-grained state. But with the simultaneous increase in strength properties in ultrafine materials, there is an inevitable decrease in its plastic properties. The use of metal materials with a gradient structure is an effective way to solve the problem of increasing the plasticity of metal products in general. This work is devoted to the study of the possibility of a gradient structure forming in austenitic stainless steel AISI-321 using radial-shear rolling. The results of the studies showed that the UFG-structure extends in the bar from its surface to a depth of at least a quarter of the radius of the bar. The transition zone is in the region between 0.5 R and 0.25 R of the bar section. Anything deeper is rolling texture. Due to the structural heterogeneity of the cross-section of the bar, there is a smooth drop in the micro-hardness of the central zone of the bar by 10.2 %. All this testifies to the gradient character of the structure formed in bars of AISI-321 steel deformed on the radial-shear rolling mill.

• Periodical: Solid State Phenomena (Volume 316)
• Pages: 246-251
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.316.246
• Online since: April 2021
• Authors: Abdrakhman B. Naizabekov, Sergey N. Lezhnev*, Evgeniy Panin
• Keywords: Austenitic Steel, Gradient Structure, Micro-Hardness, Radial-Shear Rolling, Ultrafine-Grained Structure

References

[1] C.C. Koch, I.A. Ovid'ko, S. Seal, S. Veprek, Structural nanocrystalline materials: Fundamentals and applications, Cambridge, Cambridge University Press, (2007).

[2] P. Verleysen, H. Lanjewar, Dynamic high pressure torsion: A novel technique for dynamic severe plastic deformation, Journal of Materials Processing Technology, 276 (2020) 116393.

DOI: 10.1016/j.jmatprotec.2019.116393

[3] P. Wang, T. Yin, S. Qu On the grain size dependent working hardening behaviors of severe plastic deformation processed metals, Scripta Materialia, 178 (2020) 171-175.

DOI: 10.1016/j.scriptamat.2019.11.028

[4] Y. Qi, A. Kosinova, A.R. Kilmametov, B.B. Straumal, E. Rabkin, Stabilization of ultrafine-grained microstructure in high-purity copper by gas-filled pores produced by severe plastic deformation, Scripta Materialia, 178 (2020) 29-33.

DOI: 10.1016/j.scriptamat.2019.10.050

[5] G.K. Manjunath, G.V. Preetham Kumar, K. Udaya Bhat, Evolution of Tribological Properties of Cast Al–10Zn–2Mg Alloy Subjected to Severe Plastic Deformation, Lecture Notes in Mechanical Engineering, 2020 165-175.

DOI: 10.1007/978-981-13-8767-8_13

[6] S. Kadiyan, B.S. Dehiya, Effects of severe plastic deformation by ECAP on the microstructure and mechanical properties of a commercial copper alloy, Materials Research Express, 6(1) (2019) 16570.

DOI: 10.1088/2053-1591/ab4a44

[7] E. Rabkin, V. Skripnyuk, Y. Estrin, Ultrafine-Grained Magnesium Alloys for Hydrogen Storage Obtained by Severe Plastic Deformation, Frontiers in Materials, 6 (2019) 240.

DOI: 10.3389/fmats.2019.00240

[8] Y. Yin, W. Jia, S. Li, C. Mao, Y. Ying, X. Mao, Y. Zhao, Mechanical Behavior of Nanostructured Metallic Materials Prepared by Severe Plastic Deformation, Materials China, 38(10) (2019) 1030-1036.

[9] V. Sheremetyev, A. Kudryashova, V. Cheverikin, A. Korotitskiy, S. Galkin, S. Prokoshkin, V. Brailovski, Hot radial shear rolling and rotary forging of metastable beta Ti-18Zr-14Nb (at. %) alloy for bone implants: Microstructure, texture and functional properties, Journal of Alloys and Compounds, 800 (2019) 320-326.

DOI: 10.1016/j.jallcom.2019.06.041

[10] B.V. Karpov, P.V. Patrin, S.P. Galkin, E.A. Kharitonov, I.B. Karpov, Radial-Shear Rolling of Titanium Alloy VT-8 Bars with Controlled Structure for Small Diameter Ingots (≤200 mm), Metallurgist, 61(9-10) (2018) 884-890.

DOI: 10.1007/s11015-018-0581-6

[11] X. Yan, X. Meng, L. Luo, Y. Jing, G. Yi, J. Lu, Y. Liu, Mechanical behaviour of AZ31 magnesium alloy with the laminate and gradient structure, Philosophical Magazine, 99(24) (2019) 3059-3077.

DOI: 10.1080/14786435.2019.1660009

[12] Y. Gong, J. Gu, S. Ni, H. Wu, M. Song, A good combination of strength and ductility of ultra-coarse-grained Cu-Al alloy with coarse-grained surface layer via pre-torsional treatment, Micron, 129 (2020) 102783.

DOI: 10.1016/j.micron.2019.102783

[13] M. Jamalian, D.P. Field, Gradient microstructure and enhanced mechanical performance of magnesium alloy by severe impact loading, Journal of Materials Science and Technology, 36 (2020) 45-49.

DOI: 10.1016/j.jmst.2019.06.013

[14] G.I. Raab, L.A. Simonova, G.N. Aleshin, Tailoring the gradient ultrafine-grained structure in low-carbon steel during drawing with shear, Metalurgija, 55(2) (2016) 177–180.

[15] T.H. Fang, W.L. Li, N.R. Tao, K. Lu Revealing Extraordinary Intrinsic Tensile Plasticity in Gradient Nano-Grained Copper, Science, 331(6024) (2011) 1587–1590.

DOI: 10.1126/science.1200177

[16] G.I. Raab, I.S. Kodirov, G.N. Aleshin, A.G. Raab, N.K. Tsenev, Influence of special features of the gradient structure formation during severe plastic deformation of alloys with different types of a crystalline lattice, Vestnik of Nosov Magnitogorsk State Technical University, 17(1) (2019) 64–75.

DOI: 10.18503/1995-2732-2019-17-1-64-75

[17] A. Nayzabekov, S. Lezhnev, E. Panin, A. Arbuz, T. Koinov, Simulation of radial-shear rolling of austenitic stainless steel AISI-321, Journal of Chemical Technology and Metallurgy, 54(5) (2019) 1086-1094.

DOI: 10.37904/metal.2019.685

[18] A.B. Naizabekov, S.N. Lezhnev, E.A. Panin, A.S. Arbuz, Computer simulation of microstructure evolution in radial shear rolling using Simufact Forming software and the material database Matilda, XIX International scientific conference New technologies and achievements in metallurgy, material engineering, production engineering and physics,, Częstochowa, 2018 31-34.

DOI: 10.4028/www.scientific.net/kem.716.614

[19] R.A. Andrievsky, Nanomaterials based on metal in extreme conditions. Textbook, M.: Knowledge Laboratory, (2016).

[20] A. Naizabekov, A. Arbuz, S. Lezhnev, E. Panin, I. Volokitina, The development and testing of a new method of qualitative analysis of the microstructure quality, for example of steel AISI 321 subjected to radial shear rolling, Physica Scripta, 94(10) (2019) 105702.

DOI: 10.1088/1402-4896/ab1e6e
