Interrelation of CCM (Steel Billet Continuous Casting Machine) Tube Steel Casting Parameters and Hot-Rolled Plate Quality

Article Preview

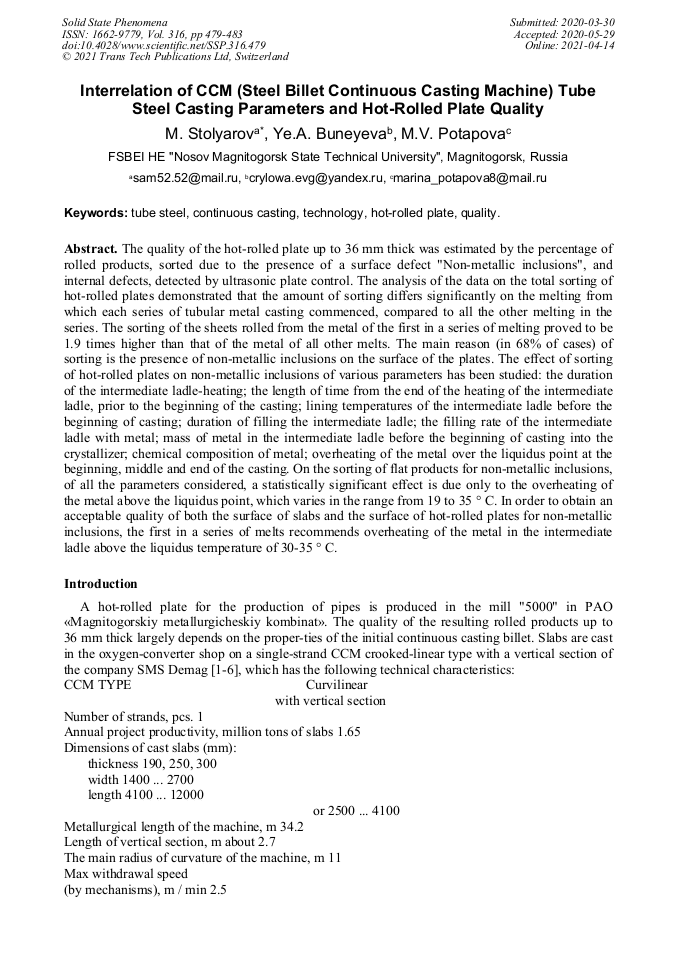

Abstract:

The quality of the hot-rolled plate up to 36 mm thick was estimated by the percentage of rolled products, sorted due to the presence of a surface defect "Non-metallic inclusions", and internal defects, detected by ultrasonic plate control. The analysis of the data on the total sorting of hot-rolled plates demonstrated that the amount of sorting differs significantly on the melting from which each series of tubular metal casting commenced, compared to all the other melting in the series. The sorting of the sheets rolled from the metal of the first in a series of melting proved to be 1.9 times higher than that of the metal of all other melts. The main reason (in 68% of cases) of sorting is the presence of non-metallic inclusions on the surface of the plates. The effect of sorting of hot-rolled plates on non-metallic inclusions of various parameters has been studied: the duration of the intermediate ladle-heating; the length of time from the end of the heating of the intermediate ladle, prior to the beginning of the casting; lining temperatures of the intermediate ladle before the beginning of casting; duration of filling the intermediate ladle; the filling rate of the intermediate ladle with metal; mass of metal in the intermediate ladle before the beginning of casting into the crystallizer; chemical composition of metal; overheating of the metal over the liquidus point at the beginning, middle and end of the casting. On the sorting of flat products for non-metallic inclusions, of all the parameters considered, a statistically significant effect is due only to the overheating of the metal above the liquidus point, which varies in the range from 19 to 35 ° C. In order to obtain an acceptable quality of both the surface of slabs and the surface of hot-rolled plates for non-metallic inclusions, the first in a series of melts recommends overheating of the metal in the intermediate ladle above the liquidus temperature of 30-35 ° C.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volume 316)

Pages:

479-483

Citation:

Online since:

April 2021

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2021 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Brian G. Thomas, Lifeng Zhang. Mathematical modeling of fluid flow in continuous casting. ISIJ International, 41(10) (2001) 1181-1193.

DOI: 10.2355/isijinternational.41.1181

Google Scholar

[2] E. Loth. Numerical approaches for motion of dispersed particles, droplets and bubbles. Progress in Energy and Combustion Science, 26(3) (2000) 161-223.

DOI: 10.1016/s0360-1285(99)00013-1

Google Scholar

[3] X. Huang, Brian G. Thomas, F. M. Najjar. Modeling superheat removal during continuous casting of steel slabs. Metallurgical Transactions B, 23(3) (1992) 339-356.

DOI: 10.1007/bf02656290

Google Scholar

[4] M. R. R. I. Shamsi, S. K. Ajmani. Three dimensional turbulent fluid flow and heat transfer mathematical model for the analysis of a continuous slab caster. ISIJ International, 47(3) (2007) 433-442.

DOI: 10.2355/isijinternational.47.433

Google Scholar

[5] Zakaria Y. Ahmad, TequilaA L. Harris. The effect of solidification on the casting window after bubble entrainment. Journal of Coatings Technology and Research, 11(1) (2014) 89-93.

DOI: 10.1007/s11998-013-9502-6

Google Scholar

[6] Lifeng Zhang, Jun Aoki, Brian G. Thomas. Inclusion removal by bubble flotation in a continuous casting mold. Metallurgical and Materials Trans-actions B, 37(3) (2006) 361-379.

DOI: 10.1007/s11663-006-0021-z

Google Scholar

[7] Q. Han, J. D. Hunt. Particle pushing: critical flow rate required to put par-ticles into motion. Journal of Crystal Growth, 152(3) (1995) 221-227.

DOI: 10.1016/0022-0248(95)00085-2

Google Scholar

[8] D. Shangguan, S. Ahuja, D. M. Stefanescu. Analytical model for the inter-action between an insoluble particle and an advancing solid/liquid interface. Metall. Trans. A, 23 (1992) 669-680.

DOI: 10.1007/bf02801184

Google Scholar

[9] D. R. Uhlmann, B. Chalmers, K. A. Jackson. Interaction between particles and a solid-liquid interface. Journal of Applied Physics, 35(10) (1964) 2986-2993.

DOI: 10.1063/1.1713142

Google Scholar

[10] D. M. Stefanescu, B. K. Dhindaw, S. A. Kacar, A. Moitra. Behavior of ce-ramic particles at the solid-liquid metal interface in metal matrix compo-sites. Metallurgical Transactions A, 19 (1988) 2847-2855.

DOI: 10.1007/bf02645819

Google Scholar

[11] V.A. Bigeev, A.H. Valiakhetov, B. Yener, A.N. Fedyanin, Experience of steel manufacturing in a high-power EAF with a high consumption of a sol-id iron, Vestnik of Nosov Magnitogorsk State Technical University,1 (45) (2014) 15-18.

Google Scholar
