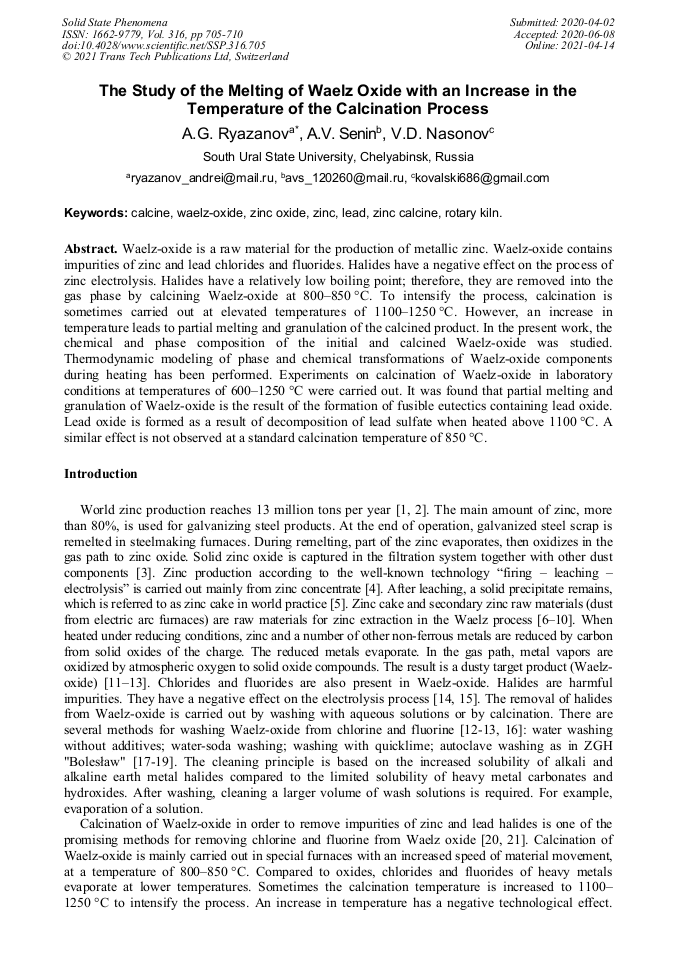

The Study of the Melting of Waelz Oxide with an Increase in the Temperature of the Calcination Process

Abstract:

Waelz-oxide is a raw material for the production of metallic zinc. Waelz-oxide contains impurities of zinc and lead chlorides and fluorides. Halides have a negative effect on the process of zinc electrolysis. Halides have a relatively low boiling point; therefore, they are removed into the gas phase by calcining Waelz-oxide at 800–850 °С. To intensify the process, calcination is sometimes carried out at elevated temperatures of 1100–1250 °С. However, an increase in temperature leads to partial melting and granulation of the calcined product. In the present work, the chemical and phase composition of the initial and calcined Waelz-oxide was studied. Thermodynamic modeling of phase and chemical transformations of Waelz-oxide components during heating has been performed. Experiments on calcination of Waelz-oxide in laboratory conditions at temperatures of 600–1250 °C were carried out. It was found that partial melting and granulation of Waelz-oxide is the result of the formation of fusible eutectics containing lead oxide. Lead oxide is formed as a result of decomposition of lead sulfate when heated above 1100 °C. A similar effect is not observed at a standard calcination temperature of 850 °C.

• Periodical: Solid State Phenomena (Volume 316)
• Pages: 705-710
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.316.705
• Online since: April 2021
• Authors: A.G. Ryazanov*, A.V. Senin, V.D. Nasonov
• Keywords: Calcine, Lead, Rotary Kiln, Waelz-Oxide, Zinc, Zinc Calcine, Zinc Oxide

References

[1] Information on https://www.ugmk.com/analytics/surveys_major_markets/tsink/.

[2] O.V. Tokar, The World zinc market: the problem of deficit and development prospects, mineral resources of Russia, Economics and Management 4 (2015) 63-67.

[3] A.G. Ryazanov, A.V. Senin, O.V. Khmeleva, Zinc ferrite decomposition by sodium carbonate and calcium oxide at roasting of steelmaking dust, Materials Science Forum 946 (2019) 474-479.

DOI: 10.4028/www.scientific.net/msf.946.474

[4] A. P. Snurnikov, Zinc Hydrometallurgy, Metallurgy, Moscow, (1981).

[5] A.J. Monhemius, The iron eleрhant: a brief history of hydrometallurgists' struggles with element no. 26, in: XXVIII International Mineral Processing Congress Proceedings, Published by the Canadian Institute of Mining Metallurgy and Petroleum, Toronto, 2016, pp.1-14.

[6] A.M. Panshin, L.I. Leontiev, P.A. Kozlov, V.G. Dubanov, A.V. Zatonsky, D.A. Ivakin, Technology of dust processing of electric arc furnaces of OJSC Severstal in the Welz complex of JSC CZP, Ecology and Industry of Russia 11 (2012) 4-6.

[7] J.L. Roth, R. Frieden, T. Hansmann, J. Monai, M. Solvi, PRIMUS a new process for recycling byproducts and producing virgin iron, Rev. Metall. 98 11 (2001) 987–996.

DOI: 10.1051/metal:2001140

[8] J. Antrekowitsch, H. Antrekowitsch, Hydrometallurgically recovering zinc from electric arc furnace dusts, JOM 53 12 (2001) 26-28.

DOI: 10.1007/s11837-001-0008-9

[9] C.A. Pickles, Thermodynamic analysis of the selective carbothermic reduction of electric arc furnace dust, J. Hazard. Mater. 150 2 (2008) 265-278.

DOI: 10.1016/j.jhazmat.2007.04.097

[10] C.C. Wu, F.C. Chang, W.S. Chen, M.S. Tsai, and Y.N. Wang, Reduction behavior of zinc ferrite in EAF-dust recycling with CO gas as a reducing agent, J. Environ. Manage. 143 (2014) 208-213.

DOI: 10.1016/j.jenvman.2014.04.005

[11] L.A. Kazanbaev, Indium. Receiving Technology, Publishing House Ore and Metals,, (2004).

[12] L.A. Kazanbaev, P.A. Kozlov, V.L. Kubasov, A.V. Kolesnikov, Zinc Hydrometallurgy (Purification of Solutions and Electrolysis), Publishing House Ore and Metals,, (2006).

[13] L.A. Kazanbaev, Development of an improved technology for the processing of zinc production cakes with indium extraction, State Research Institute of Non-Ferrous Metals, Moscow, (2000).

[14] P. Andrianne, J. Scoyer, R. Winand, Zinc electrowinning – a comparison of adherence-reducing pretreatments for aluminium cathode blanks, Hydrometallurgy 6 1-2 (1980) 159-169.

DOI: 10.1016/0304-386x(80)90015-8

[15] M. Buarzaiga, An investigation of the failure mechanisms of aluminum cathodes in zinc electrowinning cells, Diss. University of British Columbia, (1999).

[16] S.E. Klein, P.A. Kozlov, S.S. Naboychenko, Extraction of Zinc from Ore Raw Materials, Publishing House of Ural State Technical University-UPI, Yekaterinburg, (2009).

[17] Z. Śmieszek, J. Czernecki, T. Sak, P. Madej, Metallurgy of non-ferrous metals in Poland, J. of Chemical Technology and Metallurgy 52 2 (2017) 221-234.

[18] A. Selke, L. Stencel, M. Fatyga, B. Pieczonka, Ł. Zięba, working experience on the new wox washing and leaching plant at ZGH Boleslaw SA, Poland, in: M.A. Meyers et al. (Eds.), Proceedings of the 3rd Pan American Materials Congress, Springer, Cham, 2017, pp.661-668.

DOI: 10.1007/978-3-319-52132-9_66

[19] J. Nyberg, Challenges for non-ferrous industry – less waste and recovering more metals, J. World of Metallurgy 72 3 (2019) 158-166.

[20] A.M. Panshin, P.A. Kozlov, A.V. Zatonsky, O.V. Gizatulin, D.A. Ivakin, Creation of Waelz oxide calcination technology using a large-sized tube furnace, Non-ferrous metals 5 (2010) 45-48.

[21] A.M. Panshin, P.A. Kozlov, A.V. Zatonsky, D.A. Ivakin, L.I. Leontiev, V.G. Dubanov, Technology for the processing of dust from electric arc furnaces of Severstal OJSC in the Waelz complex of CZP OJSC, Ecology and Industry of Russia 11 (2012) 4-6.

[22] B.G. Trusov, TERRA system software for the simulation of phase and chemical equilibria at high temperatures, in: Proceedings of the 3rd Int. Symposium Combustion and Plasma Chemistry,, Almaty, 2005, pp.52-57.

[23] A.M. Degtyarev, D.A. Ivakin, Yu.P. Shumilin, S.P. Mayorov, Development of Waelz oxide calcination technology in a tubular rotary kiln, Non-ferrous metals 5 (2015) 31-35.

[24] Information on https://www.linn-high-therm.de/.
