Heat-Resistant Al-Alloys with Quasicrystalline and L12- Precipitates

Article Preview

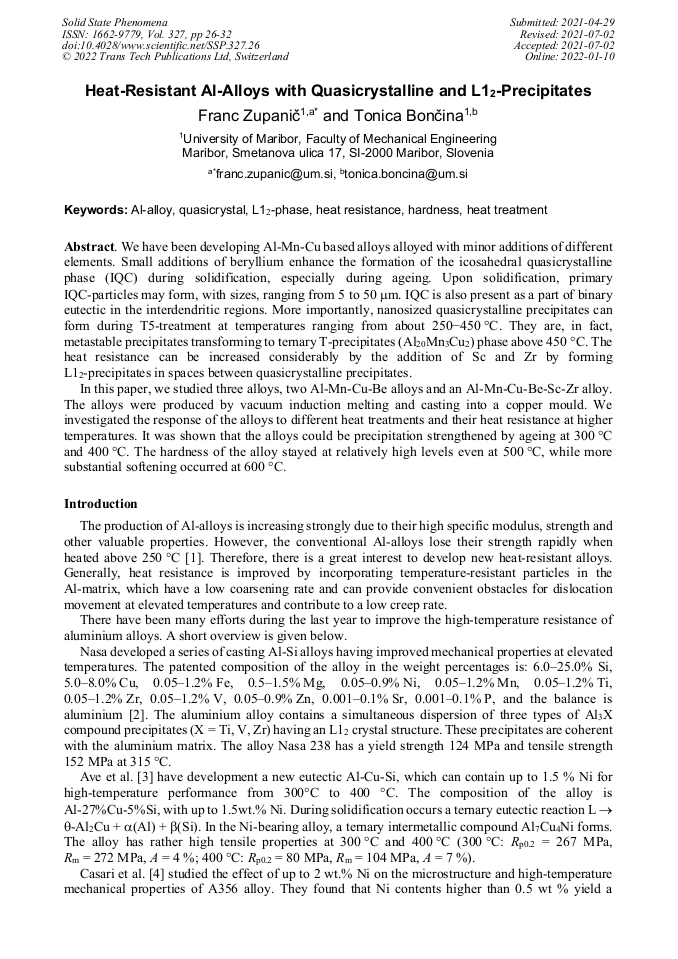

Abstract:

We have been developing Al-Mn-Cu based alloys alloyed with minor additions of different elements. Small additions of beryllium enhance the formation of the icosahedral quasicrystalline phase (IQC) during solidification, especially during ageing. Upon solidification, primary IQC-particles may form, with sizes, ranging from 5 to 50 μm. IQC is also present as a part of binary eutectic in the interdendritic regions. More importantly, nanosized quasicrystalline precipitates can form during T5-treatment at temperatures ranging from about 250−450 °C. They are, in fact, metastable precipitates transforming to ternary T-precipitates (Al20Mn3Cu2) phase above 450 °C. The heat resistance can be increased considerably by the addition of Sc and Zr by forming L12-precipitates in spaces between quasicrystalline precipitates. In this paper, we studied three alloys, two Al-Mn-Cu-Be alloys and an Al-Mn-Cu-Be-Sc-Zr alloy. The alloys were produced by vacuum induction melting and casting into a copper mould. We investigated the response of the alloys to different heat treatments and their heat resistance at higher temperatures. It was shown that the alloys could be precipitation strengthened by ageing at 300 °C and 400 °C. The hardness of the alloy stayed at relatively high levels even at 500 °C, while more substantial softening occurred at 600 °C.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volume 327)

Pages:

26-32

Citation:

Online since:

January 2022

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2022 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J. G. Kaufman, Properties of aluminium alloys – Tensile, creep and fatigue data at high and low temperatures. ASM international, Metals Park, (1999).

Google Scholar

[2] J. A. Lee, P.-S. Chen, High strength aluminum alloy for high temperature applications US Patent 6,918,970, (2005).

Google Scholar

[3] S. A. Awe, S. Seifeddine, A. E. W. Jarfors, Y. C. Lee, A. K. Dahle, Development of new Al-Cu-Si alloys for high temperature performance, Advanced Materials Letters, 8 (2017) 695-701.

DOI: 10.5185/amlett.2017.1471

Google Scholar

[4] D. Casari, F. Poli, M. Merlin, M. T. Di Giovanni, Li, Y.; Di Sabatino, M., Effect of Ni additions on A356 alloy's microstructure and high-temperature mechanical properties, La Metallurgia Italiana 108 (2016) 37-40.

DOI: 10.3390/met8040224

Google Scholar

[5] T. Bogdanoff. Dahle, A. K.; Seifeddine, S., Effect of Co and Ni additon on the microstructure and mechanical properties at room and elevated temperature of an Al-7%Si alloy, Int. J. Met. 12 (2018) 434-440.

DOI: 10.1007/s40962-017-0178-z

Google Scholar

[6] C. Y. Jeong, Effect of Alloying Elements on High Temperature Mechanical Properties for Piston Alloy, Materials Transactions, 53 (2012) 234-239.

DOI: 10.2320/matertrans.m2011259

Google Scholar

[7] N. Takata, M. Ishihara, A. Suzuki, M. Kobashi, Microstructure and strength of a novel heat-resistant aluminum alloy strengthened by T-Al6Mg11Zn11 phase at elevated temperatures, Materials Science and Engineering, A 739 (2019) 62-70.

DOI: 10.1016/j.msea.2018.10.034

Google Scholar

[8] E. Balducci, L. Ceschini, S. Messieri, S. Wenner, R. Holmestad, Thermal stability of the lightweight 2099 Al-Cu-Li alloy: Tensile tests and microstructural investigations after overaging, Mater. Des. 119 (2017), 119, 54-64.

DOI: 10.1016/j.matdes.2017.01.058

Google Scholar

[9] M. Vorel, S. Hinsch, M. Konopka, M. Scheerer, AlMgSc alloy 5028 status of maturation. In 7TH EUROPEAN CONFERENCE FOR AERONAUTICS AND SPACE SCIENCES (EUCASS), Milan, Italy, (2017).

Google Scholar

[10] S. M. Dar, H. Liao, A. Xu, A., Effect of Cu and Mn content on solidification microstructure, T-phase formation and mechanical property of AlCuMn alloys. J. Alloy. Compd. 774 (2019) 758-767.

DOI: 10.1016/j.jallcom.2018.09.362

Google Scholar

[11] N. A. Belov, A. N. Alabin, I. A. Matveeva, Optimisation of phase composition of Al-Cu-Mn-Zr-Sc alloys for rolled products without requirement for solution treatment and quenching, J. Alloy. Compd. 583 (2014) 206-213.

DOI: 10.1016/j.jallcom.2013.08.202

Google Scholar

[12] F. Zupanič, D. Wang, C. Gspan, T. Bončina, Precipitates in a quasicrystal-strengthened Al–Mn–Be–Cu alloy, Mater. Charact. 106 (2015) 93-99.

DOI: 10.1016/j.matchar.2015.05.013

Google Scholar

[13] S. Huo, B. Mais, Characteristics of heat resistant nanoquasicrystalline PM aluminum materials. Metal Powder Report, 72 (2017) 45-50.

DOI: 10.1016/j.mprp.2016.07.003

Google Scholar

[14] Q. Yan, D. Fu, X. Deng, H. Zhang, Z. Chen, Tensile deformation behavior of spray-deposited FVS0812 heat-resistant aluminum alloy sheet at elevated temperatures, Mater. Charact. 58 (2007) 575-579.

DOI: 10.1016/j.matchar.2006.06.024

Google Scholar

[15] T. Bončina, M. Albu, F. Zupanič, Ageing of Al-Mn-Cu-Be Alloys for Stimulating Precipitation of Icosahedral Quasicrystals, Metals 10 (2020), 937.

DOI: 10.3390/met10070937

Google Scholar

[16] F. Zupanič, C. Gspan, J. Burja, T. Bončina, Quasicrystalline and L12 precipitates in a microalloyed Al-Mn-Cu alloy, Materials Today Communications 22 (2020) 100809.

DOI: 10.1016/j.mtcomm.2019.100809

Google Scholar
