Assessment of Microstructural and Mechanical Properties of 420 Stainless Steel Fabricated by Laser Powder Bed Fusion

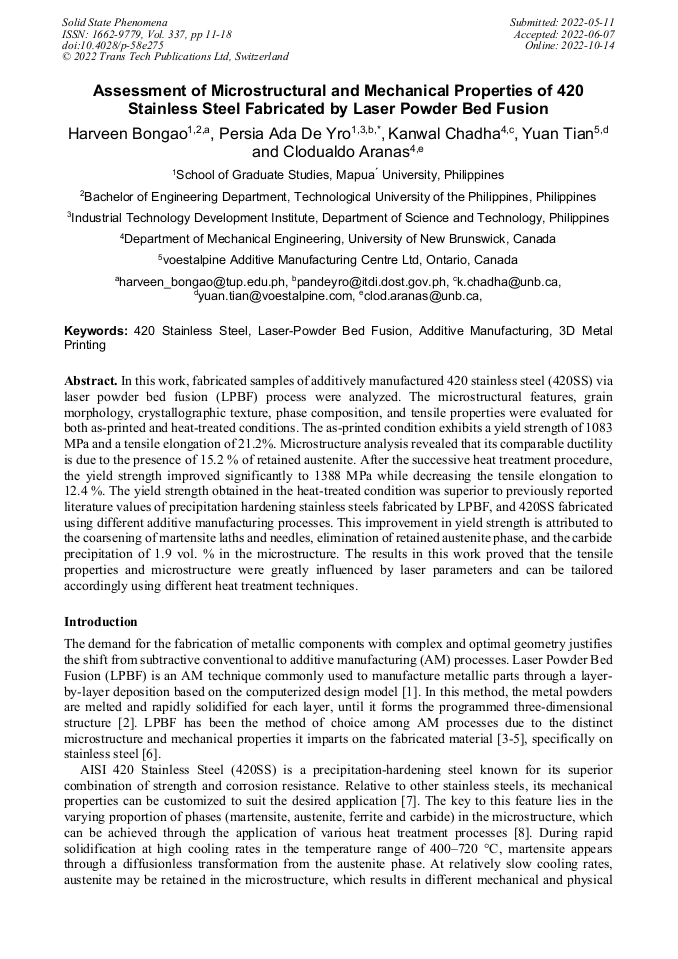

Article Preview

Abstract:

In this work, fabricated samples of additively manufactured 420 stainless steel (420SS) via laser powder bed fusion (LPBF) process were analyzed. The microstructural features, grain morphology, crystallographic texture, phase composition, and tensile properties were evaluated for both as-printed and heat-treated conditions. The as-printed condition exhibits a yield strength of 1083 MPa and a tensile elongation of 21.2%. Microstructure analysis revealed that its comparable ductility is due to the presence of 15.2 % of retained austenite. After the successive heat treatment procedure, the yield strength improved significantly to 1388 MPa while decreasing the tensile elongation to 12.4 %. The yield strength obtained in the heat-treated condition was superior to previously reported literature values of precipitation hardening stainless steels fabricated by LPBF, and 420SS fabricated using different additive manufacturing processes. This improvement in yield strength is attributed to the coarsening of martensite laths and needles, elimination of retained austenite phase, and the carbide precipitation of 1.9 vol. % in the microstructure. The results in this work proved that the tensile properties and microstructure were greatly influenced by laser parameters and can be tailored accordingly using different heat treatment techniques.

You might also be interested in these eBooks

Materials Science, Manufacturing and Civil Engineering

Solid State Technologies and Modern Production

Info:

Periodical:

Solid State Phenomena (Volume 337)

Pages:

11-18

DOI:

https://doi.org/10.4028/p-58e275

Citation:

Cite this paper

Online since:

October 2022

Authors:

Harveen Bongao, Persia Ada N. De Yro*, Kanwal Chadha, Yuan Tian, Clodualdo Aranas Jr.

Keywords:

3D Metal Printing, 420 Stainless Steel, Additive Manufacturing, Laser-Powder Bed Fusion

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2022 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] W.E. Frazier, Metal additive manufacturing: a review,, J. Mater. Eng. Perform., 1917–1928, (2014).

[2] K. Chadha, Y. Tian, P. Bocher, J.G. Spray, C. Aranas, Jr. Microstructure Evolution, Mechanical Properties and Deformation Behavior of an Additively Manufactured Maraging Steel,. Materials, 13, 2380, (2020).

DOI: 10.3390/ma13102380

[3] Y. Tian, R. Palad, C. Aranas Jr., Microstructural evolution and mechanical properties of a newly designed steel fabricated by laser powder bed fusion,, Addit. Manuf. 36, 101495, (2020).

DOI: 10.1016/j.addma.2020.101495

[4] R. Palad, Y. Tian, K. Chadha, S. Rodrigues, C. Aranas Jr., Microstructural features of novel corrosion-resistant maraging steel manufactured by laser powder bed fusion,, Mater. Lett. 275, 128026, (2020).

DOI: 10.1016/j.matlet.2020.128026

[5] S.H. Kim, G.H. Shin, B.K. Kim, K.T. Kim, D.Y. Yang, C. Aranas Jr., J.P. Choi, J.H. Yu, Thermo-mechanical improvement of Inconel 718 using ex situ boron nitride-reinforced composites processed by laser powder bed fusion,, Sci. Rep. 7, 14359, (2017).

DOI: 10.1038/s41598-017-14713-1

[6] H. Irrinki, M. Dexter, B. Barmore, R. Enneti, S. Pasebani, S. Badwe, J. Stitzel, R. Malhotra, S.V. Atre, Effects of powder attributes and laser powder bed fusion (L-PBF) process conditions on the densification and mechanical properties of 17-4 PH stainless steel,, JOM, 68, 860–868, (2016).

DOI: 10.1007/s11837-015-1770-4

[7] J. Brnic, G. Turkalj, M. Canadija, D. Lanc, S. Krscanski, "Martensitic stainless steel AISI 420—mechanical properties, creep and fracture toughness, Mech. TimeDependent Mater. 15 (4), 341–352, (2011).

DOI: 10.1007/s11043-011-9137-x

[8] J.R. Berretta, W.D. Rossi, M.D.M.D. Neves, I.A.D. Almeida, N.D.V. Junior, Pulsed Nd: YAG laser welding of AISI 304 to AISI 420 stainless steels,, Opt. Lasers Eng. 45 (9), 960–966, (2007).

DOI: 10.1016/j.optlaseng.2007.02.001

[9] Z. Nishiyama, Martensitic Transformation,, Elsevier, (2012).

[10] H. Nakagawa, T. Miyazaki, Effect of retained austenite on the microstructure and mechanical properties of martensitic precipitation hardening stainless steel,, J. Mater. Sci. 34, 3901–3908, (1999).

[11] J.A. Muñiz-Lerma, Y. Tian, X. Wang. et al. Microstructure evolution of Inconel 738 fabricated by pulsed laser powder bed fusion,. Prog Addit Manuf., 4, 97–107, (2019).

DOI: 10.1007/s40964-018-0062-2

[12] Y. Tian, J.A. Muñiz-Lerma, & M. Brochu. Nickel-based superalloy microstructure obtained by pulsed laser powder bed fusion,, Materials Characterization, 131, 306–315, (2017).

DOI: 10.1016/j.matchar.2017.07.024

[13] S.D. Nath, H. Irrinki, G. Gupta, M. Kearns, O. Gulsoy, & S. Atre. Microstructure-property relationships of 420 stainless steel fabricated by laser-powder bed fusion,. Powder Technology, 343, 738–746, (2019).

DOI: 10.1016/j.powtec.2018.11.075

[14] K. Saeidi, D.L. Zapata, F. Lofaj, F. Kvetkova, J. Olsen, Z. Shen, & F. Akhtar. Ultra-high strength martensitic 420 stainless steel with high ductility,. Additive Manufacturing, 100803, (2019).

DOI: 10.1016/j.addma.2019.100803

[15] M.K. Alam, M. Mehdi, R.J. Urbanic, A. Edrisy, Mechanical behavior of additive manufactured AISI 420 martensitic stainless steel,, Materials Science and Engineering: A. 773, 138815, (2020).

DOI: 10.1016/j.msea.2019.138815

[16] S. Da Sun, D. Fabijanic, C. Barr, Q. Liu, K. Walker, N. Matthews, et al., In-situ quench and tempering for microstructure control and Enhanced mechanical properties of Laser Cladded AISI 420 stainless steel powder on 300M steel substrates, Surface and Coatings Technology. 333 (2018) 210–219.

DOI: 10.1016/j.surfcoat.2017.10.080

[17] A.B. Spierings, T.L. Starr, K. Wegener, Fatigue performance of additive manufactured metallic parts,, Rapid Prototyping Journal. 19, 88–94, (2013).

DOI: 10.1108/13552541311302932

[18] H.K. Rafi, T.L. Starr, B.E. Stucker, A comparison of the tensile, fatigue, and fracture behavior of Ti–6al–4v and 15-5 Ph stainless steel parts made by selective laser melting,, The International Journal of Advanced Manufacturing Technology. 69, 1299–1309, (2013).

DOI: 10.1007/s00170-013-5106-7

[19] T. LeBrun, T. Nakamoto, K. Horikawa, H. Kobayashi, Effect of retained austenite on subsequent thermal processing and resultant mechanical properties of selective laser melted 17–4 ph stainless steel,, Materials & Design. 81, 44–53, (2015).

DOI: 10.1016/j.matdes.2015.05.026

[20] H.K. Rafi, D. Pal, N. Patil, T.L. Starr, B.E. Stucker, Microstructure and mechanical behavior of 17-4 Precipitation Hardenable steel processed by selective laser melting,, Journal of Materials Engineering and Performance. 23, 4421–4428, (2014).

DOI: 10.1007/s11665-014-1226-y

[21] X. Wang, Y. Liu, T. Shi, Y. Wang, Strain rate dependence of mechanical property in a selective laser melted 17–4 PH stainless steel with different states,, Materials Science and Engineering: A. 792, 139776, (2020).

DOI: 10.1016/j.msea.2020.139776

[22] M. Mahmoudi, A. Elwany, A. Yadollahi, S.M. Thompson, L. Bian, & N. Shamsaei. Mechanical properties and microstructural characterization of selective laser melted 17-4 PH stainless steel,, Rapid Prototyping Journal, 23(2), 280–294, (2017).

DOI: 10.1108/rpj-12-2015-0192

[23] A. Yadollahi, N. Shamsaei, S.M. Thompson, A. Elwany, L. Bian, Mechanical and MICROSTRUCTURAL properties of selective LASER melted 17-4 PH stainless steel,, Volume 2A: Advanced Manufacturing, (2015).

DOI: 10.1115/imece2015-52362

[24] A.K. 420 Stainless Steel Data Sheet, (2015).

[25] S.-Y. Lu, K.-F. Yao, Y.-B. Chen, M.-H. Wang, N. Chen, X.-Y. Ge, Effect of quenching and partitioning on the microstructure evolution and electrochemical properties of a martensitic stainless steel,, Corrosion Sci. 103, 95–104, (2016).

DOI: 10.1016/j.corsci.2015.11.010

[26] D.W. Heard, R. Gauvin, M. Brochu, Non-equilibrium solute partitioning in a laser re-melted Al-Li-Cu alloy,, Acta Mater. 61 (19), 7432–7436, (2013).

DOI: 10.1016/j.actamat.2013.08.050

[27] K. Chadha, Y. Tian, J.G. Spray, C. Aranas, Effect of annealing heat treatment on the microstructural evolution and mechanical properties of hot isostatic pressed 316L stainless steel fabricated by laser powder bed fusion,, Metals, 10 (6). (2020).

DOI: 10.3390/met10060753

[28] K. Saeidi, Stainless Steels Fabricated by Laser Melting Scaled-down Structural Hierarchies and Microstructural Heterogeneities,, Stockholm University, Department of materials and environmental chemistry, Stockholm, Sweden, (2016).

[29] Y. Tian, N. Chekir, X. Wang, A. Nommeots-Nomm, R. Gauvin, M. Brochu, Microstructure characterization and grain morphology of alloy 625 with 0.4 wt% boron modification manufactured by laser wire deposition,, Additive Manufacturing 24, 137–144, (2018).

DOI: 10.1016/j.addma.2018.09.015
