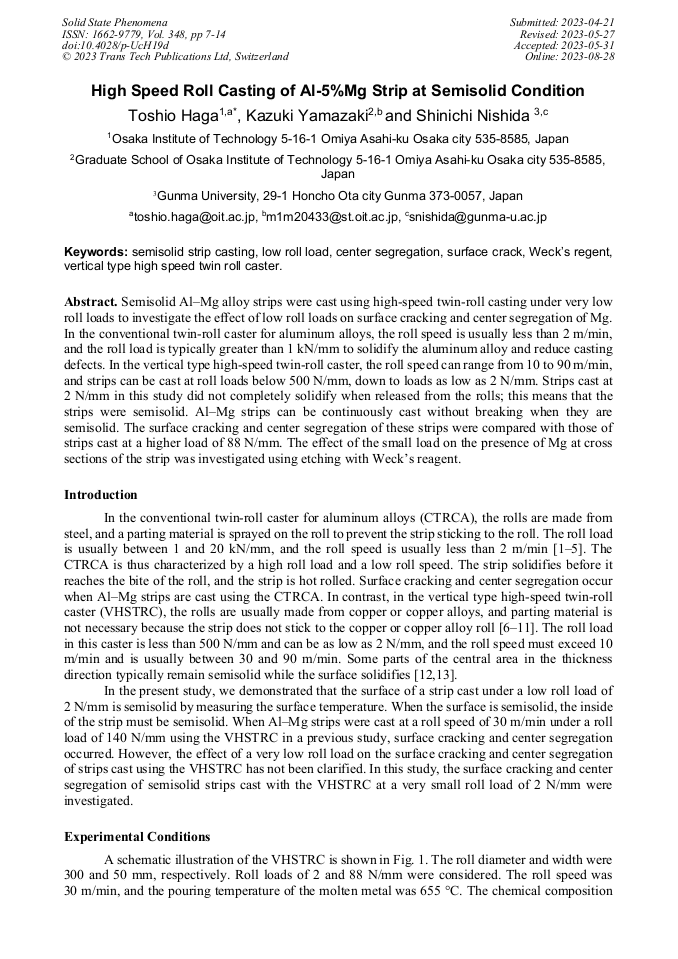

High Speed Roll Casting of Al-5%Mg Strip at Semisolid Condition

Abstract:

Semisolid Al–Mg alloy strips were cast using high-speed twin-roll casting under very low roll loads to investigate the effect of low roll loads on surface cracking and center segregation of Mg. In the conventional twin-roll caster for aluminum alloys, the roll speed is usually less than 2 m/min, and the roll load is typically greater than 1 kN/mm to solidify the aluminum alloy and reduce casting defects. In the vertical type high-speed twin-roll caster, the roll speed can range from 10 to 90 m/min, and strips can be cast at roll loads below 500 N/mm, down to loads as low as 2 N/mm. Strips cast at 2 N/mm in this study did not completely solidify when released from the rolls; this means that the strips were semisolid. Al–Mg strips can be continuously cast without breaking when they are semisolid. The surface cracking and center segregation of these strips were compared with those of strips cast at a higher load of 88 N/mm. The effect of the small load on the presence of Mg at cross sections of the strip was investigated using etching with Weck’s reagent.

• Periodical: Solid State Phenomena (Volume 348)
• Pages: 7-14
• DOI: https://doi.org/10.4028/p-UcH19d
• Online since: August 2023
• Authors: Toshio Haga*, Kazuki Yamazaki, Shinichi Nishida
• Keywords: Center Segregation, Low Roll Load, Semisolid Strip Casting, Surface Crack, Vertical Type High Speed Twin Roll Caster, Weck’s Regent

References

[1] Y. Li, C. He, J. Li, Z. Wang, D. Wu, G. Xu: A novel approach to improve the microstructure and mechanical properties of Al-Mg-Si aluminum alloys during twin-roll casting, Metals 13, 1713(2020).

DOI: 10.3390/ma13071713

[2] R. Cook, P. G. Groock, P. M. Thomas, D. V. Edmonds, J. D. Hunt: Development of the twin-roll casting process, J. Mater. Process. Technol. 55(2) (1995) 76-84.

DOI: 10.1016/0924-0136(95)01788-7

[3] S.Hamers, D.Smith, C.Romanowski, G.Yildizbayrak, B.Taraglio, Twin roll casting of aluminum at 2.5mm gauge. Production experience and process improvement, Light Met. (1999)931-937.

[4] P.Y. Menet, R.Cayol, J.Moriceau, Pechiney Jumbo 3CM 'TM' start-up of the Neu-Brisach thin strip caster, Light Met. (1997) 753-756.

[5] O.Daland, A.B. Espedal, M.L. Nedreberg, I.Alvestad, Thin gage twin-roll casting, process capabilities and product quality, Light Met. (1997) 745-752.Giuseppe E. Marcantoni, FROM MOLTEN METAL TO 3.2 mm WIRE FOR MECHANICAL APPLICATIONS, Light Metals 2012 Edited by: Carlos E. Suarez TMS (2012).

DOI: 10.1007/978-3-319-48228-6_125

[6] T. Haga, K. Takahashi, M. Ikawa: A vertical type twin roll caster for aluminum alloy strip, J. Mater. Process Technol. 140 (2003) 610-615

DOI: 10.1016/s0924-0136(03)00835-5

[7] T. Haga, Development of a twin roll caster for light metals, J. Achiev. Mater. Manuf. Eng. 43(2010) 393-402.

[8] T.Haga, M.Ikawa, H.Watari, K.Suzuki, S.Kumai, High-speed twin roll casting of thin aluminum alloy strips containing Fe impurities, Materials Transactions Vol.46(2005) 2596-2601.

DOI: 10.2320/matertrans.46.2596

[9] K.Suzuki, S.Kumai, Y.Saito, T.Haga, High-speed twin-roll strip casting of Al-Mg-Si alloys with high iron content, Materials Transactions Vol.46(2005)2602-2608.

DOI: 10.2320/matertrans.46.2602

[10] T.Haga, M.Ikawa, H.Watari, K.Suzuki, S.Kumai, 6111 aluminum alloy strip casting using an unequal diameter twin roll caster, Journal of Materials Processing and Technology, Vol.172 (2006) 271-276.

DOI: 10.1016/j.jmatprotec.2005.10.007

[11] T.Haga，K.Komeda，K.Matsuoka，S.Kumai，H.Watari, Roll casting of recycled AA5182, Applied Mechanics and Materials, Vol.121-126(2012)4667-4670.

DOI: 10.4028/www.scientific.net/amm.121-126.4667

[12] T.Haga, Y.Kurahashi, Casting Process at Roll Bite in Strip Cast Using Vertical-Type High-Speed Twin-Roll Caste, Metals 2022, 12(7), 1169;.

DOI: 10.3390/met12071169

[13] T.Haga, Y.Kurahashi, Effect of Roll Material on Strip Solidification between the Rolls of a Vertical-Type High-Speed Twin-Roll Caste, Metals 2022, 12(10), 1699; https://doi.org/

DOI: 10.3390/met12101699

[14] T.H. Nguyen, R.Song, Y.Harada, S.Kumai, Color Metallography of Characteristic Microstructure in High-Speed Twin-Roll Cast Al-Mn-Si Alloy Strip Using Weck's Reagent. Mater. Trans. 61(2020), 2252-2262.

DOI: 10.2320/matertrans.l-m2020856

[15] Y.Harada, N.Jiang, S.Kumai, Mechanical Properties of Cold-Rolled and Annealed Al-12%Mg alloy Sheet with High Mg Solid Solubility Fabricated from Vertical-Type High-Speed Twin Roll Cast Strip. Mater. Trans. 60(2019), 2435–2441.

DOI: 10.2320/matertrans.f-m2019850
