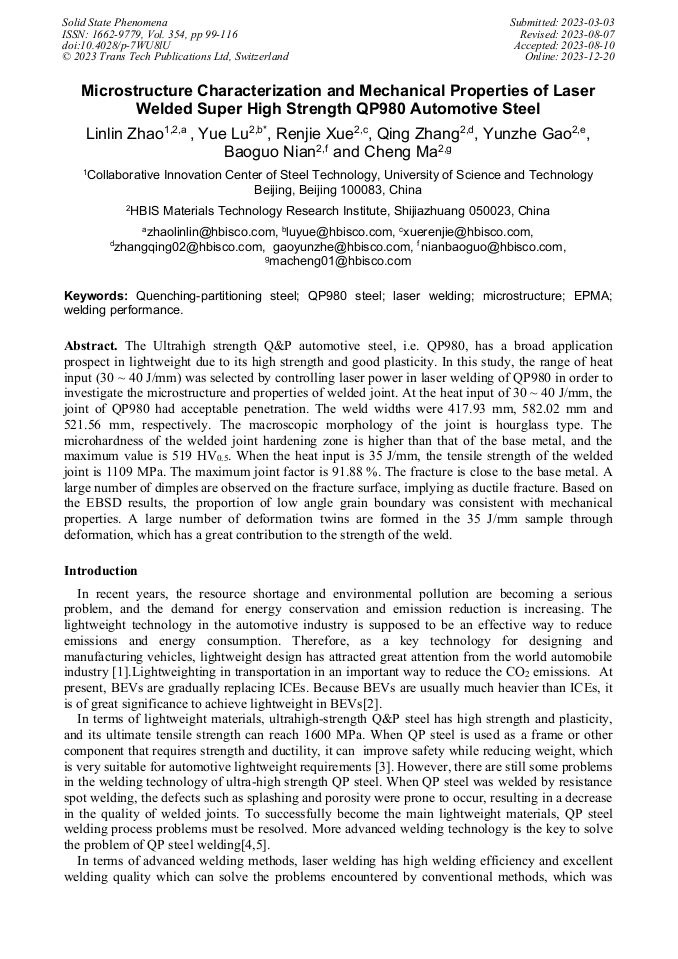

Microstructure Characterization and Mechanical Properties of Laser Welded Super High Strength QP980 Automotive Steel

Abstract:

The Ultrahigh strength Q&P automotive steel, i.e. QP980, has a broad application prospect in lightweight due to its high strength and good plasticity. In this study, the range of heat input (30 ~ 40 J/mm) was selected by controlling laser power in laser welding of QP980 in order to investigate the microstructure and properties of welded joint. At the heat input of 30 ~ 40 J/mm, the joint of QP980 had acceptable penetration. The weld widths were 417.93 mm, 582.02 mm and 521.56 mm, respectively. The macroscopic morphology of the joint is hourglass type. The microhardness of the welded joint hardening zone is higher than that of the base metal, and the maximum value is 519 HV_0.5. When the heat input is 35 J/mm, the tensile strength of the welded joint is 1109 MPa. The maximum joint factor is 91.88 %. The fracture is close to the base metal. A large number of dimples are observed on the fracture surface, implying as ductile fracture. Based on the EBSD results, the proportion of low angle grain boundary was consistent with mechanical properties. A large number of deformation twins are formed in the 35 J/mm sample through deformation, which has a great contribution to the strength of the weld.

• Periodical: Solid State Phenomena (Volume 354)
• Pages: 99-116
• DOI: https://doi.org/10.4028/p-7WU8lU
• Online since: December 2023
• Authors: Lin Lin Zhao, Yue Lu*, Ren Jie Xue, Qing Zhang, Yun Zhe Gao, Bao Guo Nian, Cheng Ma
• Keywords: EPMA, Laser Welding, Microstructure, QP980 Steel, Quenching-Partitioning Steel, Welding Performance

References

[1] H. Liu, Y. Shen, S. Yang, A comprehensive solution to miniaturized tensile testing: Specimen geometry optimization and extraction of constitutive behaviors using inverse FEM procedure, J. Fusion Engineering and Design.121, (2017) 188-197.

DOI: 10.1016/j.fusengdes.2017.07.016

[2] Z. Wenbin, C.C. J., D.C. F., Cost, range anxiety and future electricity supply: A review of how today's technology trends may influence the future uptake of BEVs, J. Renewable and Sustainable Energy Reviews.173, (2023).

DOI: 10.1016/j.rser.2022.113074

[3] B. Mohammed, T. Park, H. Kim, The forming limit curve for multiphase advanced high strength steels based on crystal plasticity finite element modeling, J. Materials Science and Engineering: a.725, (2018) 250-266.

DOI: 10.1016/j.msea.2018.04.029

[4] H. Xie, X. Dong, Q. Wang, Investigation on transient electrically-assisted stress relaxation of QP980 advanced high strength steel, J. Mechanics of Materials.93, (2016) 238-245.

DOI: 10.1016/j.mechmat.2015.11.007

[5] X. Hu, X. Sun, L. Hector, Individual phase constitutive properties of a TRIP-assisted QP980 steel from a combined synchrotron X-ray diffraction and crystal plasticity approach, J. Acta Materialia.132, (2017) 230-244.

DOI: 10.1016/j.actamat.2017.04.028

[6] Y. Hou, J. Min, N. Guo, Evolving asymmetric yield surfaces of quenching and partitioning steels: Characterization and modeling, J. Journal of Materials Processing Technology.290, (2021) 116979.

DOI: 10.1016/j.jmatprotec.2020.116979

[7] A. Ivanchenko, I. Tochilin A.V. Zhdanov, Thermal State Simulation of Welded Steel Plates under Laser Welding Conditions, J. Solid State Phenomena.316, (2021) 396-401.

DOI: 10.4028/www.scientific.net/ssp.316.396

[8] A. Bernatskyi, O.M. Berdnikova, O. Kushnarova, Laser Spot Welding a Three-Layered Panel in Different Spatial Positions, J. Solid State Phenomena.331, (2022) 3-9.

DOI: 10.4028/p-x8bytl

[9] H. Zhao, R. Huang, Y. Sun, Microstructure and mechanical properties of fiber laser welded QP980/press-hardened 22MnB5 steel joint, J. Journal of Materials Research and Technology. 9(5), (2020) 10079-10090.

DOI: 10.1016/j.jmrt.2020.07.011

[10] W. Guo, Z. Wan, Q. Jia, Laser weldability of TWIP980 with DP980/B1500HS/QP980 steels: Microstructure and mechanical properties, J. Optics & Laser Technology.124, (2020) 105961.

DOI: 10.1016/j.optlastec.2019.105961

[11] F. Dittrich, J. Kaars, B. Masek, HAZ characterization of welded 42SiCr steel treated by quenching and partitioning, J. Journal of Materials Processing Technology.268, (2019) 37-46.

DOI: 10.1016/j.jmatprotec.2018.12.035

[12] E. Öztürk,H. Arıkan, Investigation of mechanical properties of laser welded dual-phase steels at macro and micro levels, J. Optics & Laser Technology.157, (2023) 108713.

DOI: 10.1016/j.optlastec.2022.108713

[13] Z. Wang, Z. Luo, M. Huang, Revealing hydrogen-induced delayed fracture in ferrite-containing quenching and partitioning steels, J. Materialia.4, (2018) 260-267.

DOI: 10.1016/j.mtla.2018.09.022

[14] J. He, G. Han, S. Li, To correlate the phase transformation and mechanical behavior of QP steel sheets, J. International Journal of Mechanical Sciences.152, (2019) 198-210.

DOI: 10.1016/j.ijmecsci.2019.01.003

[15] ASTM. Standard Guide for Preparation of Metallographic Specimens: 03.01. [S]: Astm, 2017: 1-12.

[16] Astm. Standard Test Methods for Tension Testing of Metallic Materials: ASTM E8/E8M-22. [S], 2022: 1-31.

[17] W. Li, L. Ma, P. Peng, Microstructural evolution and deformation behavior of fiber laser welded QP980 steel joint, J. Materials Science and Engineering: a.717, (2018) 124-133.

DOI: 10.1016/j.msea.2018.01.050

[18] Y. Xu, Y. Gong, H. Du, A newly-designed hot stamping plus non-isothermal Q&P process to improve mechanical properties of commercial QP980 steel, J. International Journal of Lightweight Materials and Manufacture.3(1), (2020) 26-35.

DOI: 10.1016/j.ijlmm.2019.11.003

[19] J. He, G. Han,Y. Feng, Phase transformation and plastic behavior of QP steel sheets: Transformation kinetics-informed modeling and forming limit prediction, J. Thin-walled Structures.173, (2022) 108977.

DOI: 10.1016/j.tws.2022.108977

[20] X. Chen, C. Niu, C. Lian, The Evaluation of Formability of the 3rd Generation Advanced High Strength Steels QP980 based on Digital Image Correlation Method, J. Procedia Engineering.207, (2017) 556-561.

DOI: 10.1016/j.proeng.2017.10.1020

[21] Q. Jia, W. Guo, Z. Wan, Microstructure and mechanical properties of laser welded dissimilar joints between QP and boron alloyed martensitic steels, J. Journal of Materials Processing Technology.259, (2018) 58-67.

DOI: 10.1016/j.jmatprotec.2018.04.020

[22] J. Min, L.G. Hector Jr., L. Zhang, Plastic instability at elevated temperatures in a TRIP-assisted steel, J. Materials & Design.95, (2016) 370-386.

DOI: 10.1016/j.matdes.2016.01.113

[23] C.B. Finfrock, B. Ellyson, S.R.J. Likith, Elucidating the temperature dependence of TRIP in Q&P steels using synchrotron X-Ray diffraction, constituent phase properties, and strain-based kinetics models, J. Acta Materialia.237, (2022) 118126.

DOI: 10.1016/j.actamat.2022.118126

[24] D. Wang, Y. Dong, L. Liu, Effect of pulsed laser and laser-arc hybrid on aluminum/steel riveting-welding hybrid bonding technology, J. Journal of Materials Research and Technology.17, (2022) 1043-1053.

DOI: 10.1016/j.jmrt.2022.01.064

[25] W. Dong, H. Pan, M. Lei, Zn penetration and its coupled interaction with the grain boundary during the resistance spot welding of the QP980 steel, J. Scripta Materialia.218, (2022) 114832.

DOI: 10.1016/j.scriptamat.2022.114832

[26] Z. Chen, Y. Wang,Y. Lou, User-friendly anisotropic hardening function with non-associated flow rule under the proportional loadings for BCC and FCC metals, J. Mechanics of Materials.165, (2022) 104190.

DOI: 10.1016/j.mechmat.2021.104190

[27] Y. Lou, S. Zhang J.W. Yoon, Strength modeling of sheet metals from shear to plane strain tension, J. International Journal of Plasticity.134, (2020) 102813.

DOI: 10.1016/j.ijplas.2020.102813

[28] A. Bernatskyi, O.M. Berdnikova, V. Sydorets, Laser Welding of Stainless Steel 321 in Different Welding Positions, J. Solid State Phenomena.313, (2021) 106-117.

DOI: 10.4028/www.scientific.net/ssp.313.106

[29] A. Gots, A. Lyukhter, D.A. Kochuev, Influence of Laser Power and Scanning Speed on the Formation of Single Tracks Formed by Laser Cladding, J. Solid State Phenomena.313, (2021) 15-21.

DOI: 10.4028/www.scientific.net/ssp.313.15

[30] W. Guo, Z. Wan, P. Peng, Microstructure and mechanical properties of fiber laser welded QP980 steel, J. Journal of Materials Processing Technology.256, (2018) 229-238.

DOI: 10.1016/j.jmatprotec.2018.02.015

[31] Y. Hou, J. Min, T.B. Stoughton, A non-quadratic pressure-sensitive constitutive model under non-associated flow rule with anisotropic hardening: Modeling and validation, J. International Journal of Plasticity.135, (2020) 102808.

DOI: 10.1016/j.ijplas.2020.102808

[32] J. Xue, W. Guo, Y. Zhang, Local microstructure and mechanical characteristics of HAZ and tensile behavior of laser welded QP980 joints, J. Materials Science and Engineering: a.854, (2022) 143862.

DOI: 10.1016/j.msea.2022.143862

[33] M. Zhou, Y. Li, Q. Hu, Investigations on edge quality and its effect on tensile property and fracture patterns of QP980, J. Journal of Manufacturing Processes.37, (2019) 509-518.

DOI: 10.1016/j.jmapro.2018.12.028

[34] Y. Hou, M. Lee, J. Lin, Experimental characterization and modeling of complex anisotropic hardening in quenching and partitioning (Q&P) steel subject to biaxial non-proportional loadings, J. International Journal of Plasticity.156, (2022) 103347.

DOI: 10.1016/j.ijplas.2022.103347

[35] P. Horník, H. Šebestová, J. Novotný, Laser beam oscillation strategy for weld geometry variation, J. Journal of Manufacturing Processes.84, (2022) 216-222.

DOI: 10.1016/j.jmapro.2022.10.016

[36] K. Hao, Z. Gao, J. Huang, Comparisons of laser and laser-arc hybrid welded carbon steel with beam oscillation, J. Optics & Laser Technology.157, (2023) 108787.

DOI: 10.1016/j.optlastec.2022.108787

[37] U. Reisgen, S. Olschok, T. Twiehaus, Schlieren methodology for laser beam welding under vacuum, J. Vacuum.206, (2022) 111508.

DOI: 10.1016/j.vacuum.2022.111508

[38] M. Wu, Z. Luo, Y. Li, Effect of heat source parameters on weld formation and defects of oscillating laser-TIG hybrid welding in horizontal position, J. Journal of Manufacturing Processes.83, (2022) 512-521.

DOI: 10.1016/j.jmapro.2022.09.030

[39] Z. Liu, X. Jin, J. Li, Numerical simulation and experimental analysis on the deformation and residual stress in trailing ultrasonic vibration assisted laser welding, J. Advances in Engineering Software.172, (2022) 103200.

DOI: 10.1016/j.advengsoft.2022.103200

[40] M. Wu, Z. Luo, Y. Li, Effect of oscillation modes on weld formation and pores of laser welding in the horizontal position, J. Optics & Laser Technology.158, (2023) 108801.

DOI: 10.1016/j.optlastec.2022.108801
