HomeSolid State PhenomenaSolid State Phenomena Vol. 357Effects of Sn on Corrosion Resistance of...

Effects of Sn on Corrosion Resistance of Rare-Earth-Free Mg-2Zn Alloy

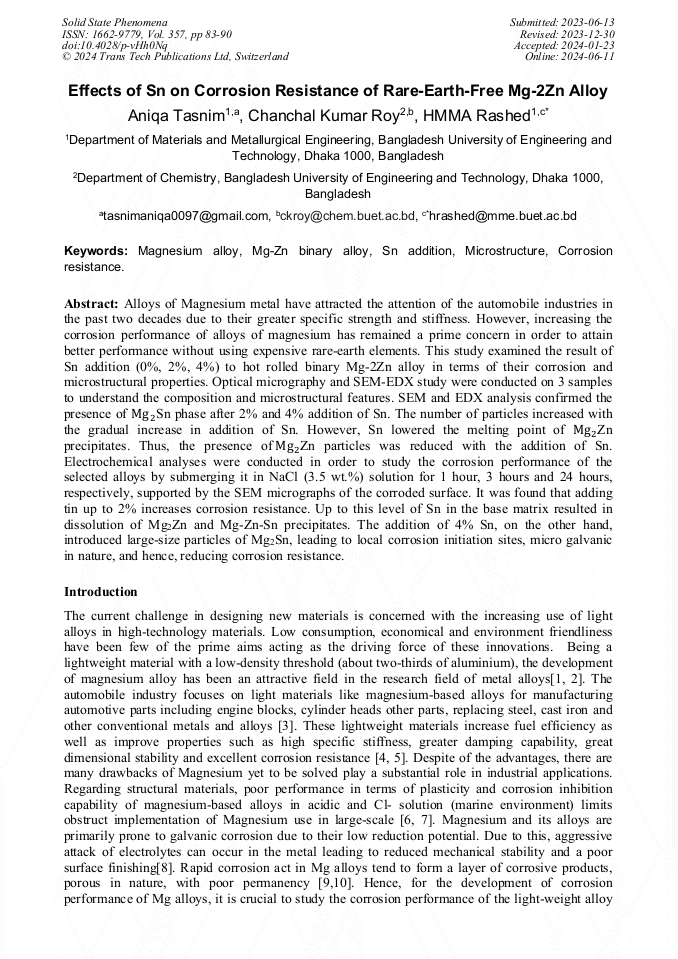

Article Preview

Abstract:

Alloys of Magnesium metal have attracted the attention of the automobile industries in the past two decades due to their greater specific strength as well as stiffness. However, increasing the corrosion performance of alloys of magnesium has remained a prime concern in order to attain better performance without using expensive rare-earth elements. In this study, the result of Sn addition (0%, 2%, 4%) to hot rolled binary Mg-2Zn alloy was examined in terms of their corrosion and microstructural properties. To understand microstructural features, optical micrography, and SEM-EDX study were conducted. SEM and EDX analysis confirmed the presence of Sn phase after 2% and 4% addition of Sn. The number of particles increased with the gradual increase in the addition of Sn. However, Sn lowered the melting point of Zn precipitates. Thus, the presence of Zn particles was reduced with the addition of Sn. Electrochemical analyses were conducted in order to study the corrosion performance of the selected alloys by submerging it in NaCl (3.5 wt.%) solution, supported by the SEM micrographs of the corroded surface. It was found that adding tin up to 2% increases corrosion resistance. The addition of 4% Sn, on the other hand, introduced large-size particles of Mg₂Sn, leading to local corrosion initiation sites, micro galvanic in nature, and hence, reducing corrosion resistance.

You might also be interested in these eBooks

The 3rd International Conference on Advances in Materials Science (ICAMS)

Advanced Materials Research and Corrosion Protection

Info:

Periodical:

Solid State Phenomena (Volume 357)

Pages:

83-90

DOI:

https://doi.org/10.4028/p-vHh0Nq

Citation:

Cite this paper

Online since:

June 2024

Authors:

Aniqa Tasnim, Chanchal Kumar Roy, H.M. Mamun Al Rashed*

Keywords:

Corrosion Resistance, Magnesium Alloy, Mg-Zn Binary Alloy, Microstructure, Sn Addition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2024 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] W. Zhang and J. Xu, "Advanced lightweight materials for Automobiles: A review," Materials and Design, vol. 221. Elsevier Ltd, Sep. 01, 2022.

DOI: 10.1016/j.matdes.2022.110994

[2] B. R. Powell, P. E. Krajewski, and A. A. Luo, "Magnesium alloys for lightweight powertrains and automotive structures," in Materials, Design and Manufacturing for Lightweight Vehicles, Elsevier, 2020, p.125–186.

DOI: 10.1016/B978-0-12-818712-8.00004-5

[3] M. K. Kulekci, "Magnesium and its alloys applications in automotive industry," International Journal of Advanced Manufacturing Technology, vol. 39, no. 9–10, p.851–865, Nov. 2008.

DOI: 10.1007/s00170-007-1279-2

[4] A. A. Luo and A. K. Sachdev, "Applications of magnesium alloys in automotive engineering," in Advances in Wrought Magnesium Alloys, Elsevier, 2012, p.393–426.

DOI: 10.1533/9780857093844.3.393

[5] J. Hirsch and T. Al-Samman, "Superior light metals by texture engineering: Optimized aluminum and magnesium alloys for automotive applications," Acta Mater, vol. 61, no. 3, p.818–843, Feb. 2013.

DOI: 10.1016/j.actamat.2012.10.044

[6] N. Birbilis, M. A. Easton, A. D. Sudholz, S. M. Zhu, and M. A. Gibson, "On the corrosion of binary magnesium-rare earth alloys," Corros Sci, vol. 51, no. 3, p.683–689, Mar. 2009.

DOI: 10.1016/j.corsci.2008.12.012

[7] G. L. Song, "Corrosion behavior of magnesium alloys and protection techniques," in Surface Engineering of Light Alloys: Aluminium, Magnesium and Titanium Alloys, Elsevier Inc., 2010, p.3–39.

DOI: 10.1533/9781845699451.1.3

[8] M. R. Islam, M. A. Al Mamun, and M. A. Hossain, "Improving Corrosion Resistance in Magnesium and its alloys," IARJSET, vol. 8, no. 2, Feb. 2021.

DOI: 10.17148/iarjset.2021.8218

[9] Z. Qiao, Z. Shi, N. Hort, N. I. Zainal Abidin, and A. Atrens, "Corrosion behaviour of a nominally high purity Mg ingot produced by permanent mould direct chill casting," Corros Sci, vol. 61, p.185–207, Aug. 2012.

DOI: 10.1016/j.corsci.2012.04.030

[10] Y. Chen, T. Ying, Y. Yang, J. Wang, and X. Zeng, "Regulating corrosion resistance of Mg alloys via promoting precipitation with trace Zr alloying," Corrosion Science, vol. 216, p.111106–111106, May 2023.

DOI: 10.1016/j.corsci.2023.111106

[11] Z. Rong-chang et al., "Science Review of studies on corrosion of magnesium alloys," 2006. [Online]. Available: www.sciencedirect.comwww.csu.edu.cn/ysxb/

[12] Z. Qiao, Z. Shi, N. Hort, N. I. Zainal Abidin, and A. Atrens, "Corrosion behaviour of a nominally high purity Mg ingot produced by permanent mould direct chill casting," Corros Sci, vol. 61, p.185–207, Aug. 2012.

DOI: 10.1016/j.corsci.2012.04.030

[13] S. K. Sharma et al., "Significance of Alloying Elements on the Mechanical Characteristics of Mg-Based Materials for Biomedical Applications," Crystals, vol. 12, no. 8. MDPI, Aug. 01, 2022.

DOI: 10.3390/cryst12081138

[14] G. L. Song, "Effect of tin modification on corrosion of AM70 magnesium alloy," Corros Sci, vol. 51, no. 9, p.2063–2070, Sep. 2009.

DOI: 10.1016/j.corsci.2009.05.031

[15] W. Jiang and W. Yu, "In Vitro Degradation Behavior, Mechanical Properties, and Cytocompatibility of Biodegradable Mg-1Zn-xSn Alloys," Crystals (Basel), vol. 12, no. 9, Sep. 2022.

DOI: 10.3390/cryst12091219

[16] X. Gu, Y. Zheng, Y. Cheng, S. Zhong, and T. Xi, "In vitro corrosion and biocompatibility of binary magnesium alloys," Biomaterials, vol. 30, no. 4, p.484–498, Feb. 2009.

DOI: 10.1016/j.biomaterials.2008.10.021

[17] P. Metalnikov, G. Ben-Hamu, D. Eliezer, and K. S. Shin, "Role of Sn in microstructure and corrosion behavior of new wrought Mg-5Al alloy," J Alloys Compd, vol. 777, p.835–849, Mar. 2019.

DOI: 10.1016/j.jallcom.2018.11.003

[18] S. H. Kim, J. U. Lee, Y. J. Kim, J. G. Jung, and S. H. Park, "Controlling the microstructure and improving the tensile properties of extruded Mg-Sn-Zn alloy through Al addition," J Alloys Compd, vol. 751, p.1–11, Jun. 2018.

DOI: 10.1016/j.jallcom.2018.04.063

[19] Q. Zhang, Q. Li, X. Chen, J. Bao, and Z. Chen, "Effect of Sn addition on the deformation behavior and microstructural evolution of Mg-Gd-Y-Zr alloy during hot compression," Materials Science and Engineering A, vol. 826, Oct. 2021.

DOI: 10.1016/j.msea.2021.142026

[20] Z. Yu et al., "Effect of Sn content on the mechanical properties and corrosion behavior of Mg-3Al-xSn alloys," Mater Res Express, vol. 7, no. 7, Jul. 2020.

DOI: 10.1088/2053-1591/aba149

[21] W. Jiang, J. Wang, W. Zhao, Q. Liu, D. Jiang, and S. Guo, "Effect of Sn addition on the mechanical properties and bio-corrosion behavior of cytocompatible Mg–4Zn based alloys," Journal of Magnesium and Alloys, vol. 7, no. 1, p.15–26, Mar. 2019.

DOI: 10.1016/j.jma.2019.02.002
