The Influence of Energy-Force Parameters on the Condition of Surface Structure and Properties of Steel during Frictional Thermomechanical Processing

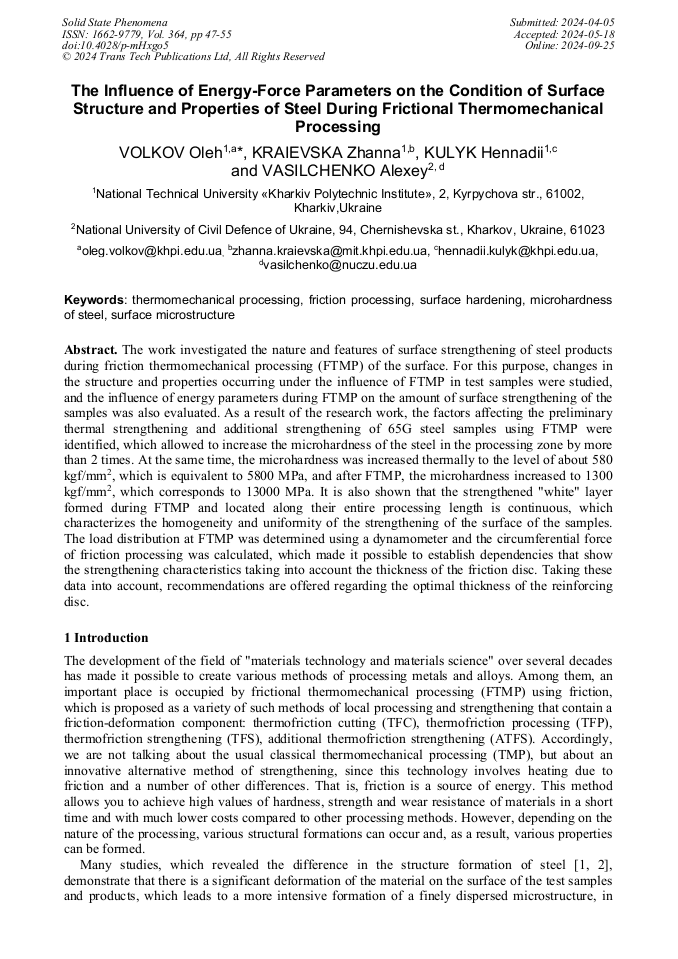

Article Preview

Abstract:

The work investigated the nature and features of surface strengthening of steel products during friction thermomechanical processing (FTMP) of the surface. For this purpose, changes in the structure and properties occurring under the influence of FTMP in test samples were studied, and the influence of energy parameters during FTMP on the amount of surface strengthening of the samples was also evaluated. As a result of the research work, the factors affecting the preliminary thermal strengthening and additional strengthening of 65G steel samples using FTMP were identified, which allowed to increase the microhardness of the steel in the processing zone by more than 2 times. At the same time, the microhardness was increased thermally to the level of about 580 kgf/mm2, which is equivalent to 5800 MPa, and after FTMP, the microhardness increased to 1300 kgf/mm2, which corresponds to 13000 MPa. It is also shown that the strengthened "white" layer formed during FTMP and located along their entire processing length is continuous, which characterizes the homogeneity and uniformity of the strengthening of the surface of the samples. The load distribution at FTMP was determined using a dynamometer and the circumferential force of friction processing was calculated, which made it possible to establish dependencies that show the strengthening characteristics taking into account the thickness of the friction disc. Taking these data into account, recommendations are offered regarding the optimal thickness of the reinforcing disc.

You might also be interested in these eBooks
International Scientific Applied Conference "Problems of Emergency Situations" (PES 2024) View Preview
Surfaces, Coatings and Advanced Materials View Preview

Info:

Periodical:

Solid State Phenomena (Volume 364)

Pages:

47-55

DOI:

https://doi.org/10.4028/p-mHxgo5

Citation:

Cite this paper

Online since:

September 2024

Authors:

Oleg Volkov*, Zhanna Kraevska, Hennadii Kulyk, Alexey Vasilchenko

Keywords:

Friction Processing, Microhardness of Steel, Surface Hardening, Surface Microstructure, Thermomechanical Processing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2024 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] O.O. Volkov, Increasing the operational stability of parts and tools by the method of thermofriction strengthening: dissertation for obtaining a scientific degree candidate of technical sciences: specialty 05.02.01 Materials science, 13 Mechanical engineering: protected 06.10.2020/science. manager M.A. Pogribnyi; National technical Kharkiv University. polytechnic institute"; Kharkiv. national technical University of Villages farm named after P. Vasylenko. - Kharkiv: [b. v.], 2020.

DOI: 10.36486/np.2020.1(47).27

Google Scholar

[2] О.А. Volkov, Study of heat deformation influence in surface strain hardening of steel by thermofriction processing, Eastern-European journal of enterprise technologies. 25 (80) (2016) 38–44.

DOI: 10.15587/1729-4061.2016.65458

Google Scholar

[3] V.M. Holubetsʹ, Tekhnolohichni metody poverkhnevoho zmitsnennya metalichnykh konstruktsiynykh materialiv, Navch. posibnyk. Lʹviv : VTF "Drukservis", 2000.

Google Scholar

[4] A.K. Lakshminarayanan, V. Balasubramanian, Understanding the parameters controlling friction stir welding of AISI 409M ferritic stainless steel, Metals and materials international. 17(6) (2011) 969–981.

DOI: 10.1007/s12540-011-6016-6

Google Scholar

[5] I. Galvao, R.M. Leal, A. Loureiro, Influence of tool shoulder geometry on properties of friction stir welds thin copper sheets, Journal of materials processing technology. 213(2) (2013) 129–135.

DOI: 10.1016/j.jmatprotec.2012.09.016

Google Scholar

[6] N. Rajamanickam, V. Balusamy, G. Magudeeswaran, K. Natarajan, Effect of process parameters on thermal history and mechanical properties of friction stir welds, Materials & Design. 30(7) (2009) 2726–2731.

DOI: 10.1016/j.matdes.2008.09.035

Google Scholar

[7] A. Momeni, H. Arabi, A. Rezaei, H. Badri, S.M. Abbasi, Hot deformation behavior of austenite in HSLA-100 microalloyed steel, Materials Science and Engineering: A. 528 (4–5) (2011) 2158–2163.

DOI: 10.1016/j.msea.2010.11.062

Google Scholar

[8] H. Sidhom, F. Ghanem, T. Amadou, G. Gonzalez, C. Braham, Effect of electro discharge machining (EDM) on the AISI316L SS white layer microstructure and corrosion resistance, The international journal of advanced manufacturing technology. 65 (1–4) (2013) 141–153.

DOI: 10.1007/s00170-012-4156-6

Google Scholar

[9] K. Sipos, M. Lopez, M. Trucco, Surface martensite white layer produced by adhesive sliding wear friction in AISI 1065 steel, Revista latinoamericana de metalurgia y materiales. 28 (1) (2008) 46–50.

Google Scholar

[10] V.M. Holubetsʹ, M.D. Kiryk, Yu.R. Kapralʹ, A.Ye. Rudʹ, Fizyko-mekhanichni kharakterystyky zmitsnenoho vysokoshvydkisnym tertyam nanostrukturnoho sharu na stali 45, Naukovyy visnyk Natsionalʹnoho lisotekhnichnoho universytetu Ukrayiny : zb. nauk.-tekhn. pr. Lʹviv : RVV NLTU Ukrayiny. 22 (13) (2012) 114–117.

Google Scholar

[11] M. Kiryk, V. Holubetsʹ, YU. Kapralʹ, A. Rudʹ, Vstanovlennya rezhymiv zmitsnennya vysokoshvydkisnym tertyam nozhiv z konstruktsiynykh staley dlya rizannya derevyny, Mashynoznavstvo. 3–4 (2013) 28–31.

Google Scholar

[12] O.V. Manʹko, YU.B. Stetsʹko, M.L. Bilyavsʹkyy, Utvorennya biloho sharu pry fryktsiyno-zmitsnyuyuchiy obrobtsi tonkykh plastyn, Protsesy mekhanichnoyi obrobky v mashynobuduvanni.1 (2005) 146–157.

Google Scholar

[13] O. Volkov, S. Knyazev, A. Vasilchenko, E. Doronin, Alternative strengthening of jewelry tools using chemical-thermal and local surface treatments , Materials science forum. 1038 (2021) 68–76.

DOI: 10.4028/www.scientific.net/msf.1038.68

Google Scholar

[14] A. Levterov, J. Nechitaylo, T. Plugina, O. Volkov, Application of thermo-frictional and chemical-thermal methods treatments for surface strengthening of materials, Materials science forum. 1038 (2021) Р. 93–99.

DOI: 10.4028/www.scientific.net/msf.1038.93

Google Scholar

[15] E. Sevidova, Y. Gutsalenko, C. Iancu, V. Subbotina, O. Volkov, Dielectric protection of aluminum alloys of diamond wheel frameworks by plasma-electrolytic coatings with forming in galvanostatic mode, Source: Fiability & Durability Fiabilitate si Durabilitate . 28 (2) (2021) 16-21.

Google Scholar

[16] O. Volkov, N. Pogrebnoy, V. Subbotinа, M. Rucki, A. Shelkovoy, M. Nakonechny, N. Zubkova, Y. Gutsalenko, Investigation of the transformation of the structure and properties of heredity of thermofrictional hardening of steel under conditions of elevated temperatures, 30 th Anniversary International Conference on Metallurgy and Materials, METAL 2021, Conference proceedings, Brno, Czech Republic, EU. (May 26 - 28, 2021) 846-851.

DOI: 10.37904/metal.2021.4207

Google Scholar

[17] O. Volkov, S. Knyazev, V. Subbotinа, C. Iancu, Yu. Gutsalenko, O. Shelkovyi, R. Strelchuk, Construction of surface layers with special properties in the hardening of steels, IManEE 2021 – Innovative Manufacturing Engineering & Energy International Conference. (2022) 1235

DOI: 10.1088/1757-899x/1235/1/012031

Google Scholar

[18] R. Strelchuk, O. Shelkovyi, Y. Gutsalenko, C. Iancu, V. Subbotinа, S. Knyazev, O. Volkov, Research of the dependence of geometric parameters of holes on electroerosive grinding modes with a changing polarity of electrodes, IManEE 2021 – Innovative Manufacturing Engineering & Energy International Conference. (2022) 1235

DOI: 10.1088/1757-899x/1235/1/012023

Google Scholar

[19] O. Volkov, Z. Kraevska, A. Vasilchenko, T. Hannichenko, Additional strengthening of "screper" jewelry tool using friction, Solid state phenomena. 334 (2022) 100–106.

DOI: 10.4028/p-w6bzqu

Google Scholar

[20] O. Volkov, V. Subbotinа, O. Subbotin, A. Vasilchenko, M. Shyogoleva, Methods of structural engineering of surface in solving the problems of multifactorial increase of the level of operational characteristics of materials, Solid state phenomena. 350 (2023) 3–12.

DOI: 10.4028/p-pbmxh4

Google Scholar

[21] O. Volkov, V. Subbotinа, Z. Kraievska, A. Vasilchenko, Selection and application of the optimal surface engineering method to restore the properties of rolling equipment elements that have been reduced due to violations of surface grinding technology, Solid state phenomena. 350 (2023) 13–19.

DOI: 10.4028/p-5ctyhi

Google Scholar

[22] V.I. Buzylo, V.P. Serdyuk, A.V. Yavorsʹkyy, O.A. Hayday, Materialoznavstvo : navch. posib. M-vo osvity i nauky Ukrayiny, Nats. tekhn. un-t «Dniprovsʹka politekhnika» – Dnipro : NTU «DP», 2021.

Google Scholar

[23] YU.A. Syzyi, N.A. Pohrebnoy, O.A. Volkov, Temperaturnoe pole na vkhode y vykhode s poverkhnosty uprochnyaemoy trenyem, Visnyk Kharkivsʹkoho derzhavnoho tekhnichnoho universytetu silʹsʹkoho hospodarstva «Pidvyshchennya nadiynosti vidnovlyuyemykh detaley mashyn». Kharkiv. 18 (2003) 84–93.

Google Scholar
