In Situ EBSD Characterisation of Anisotropic Creep Behaviour in a Thick AA2139 Part during In-Forming Artificial Ageing

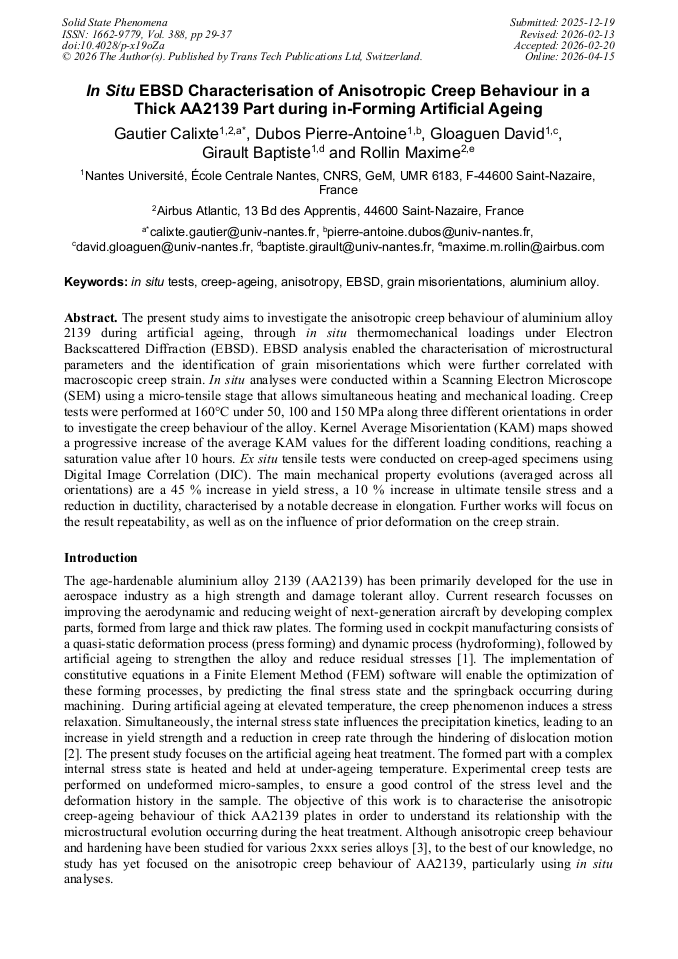

Article Preview
View Pdf By email

Abstract:

The present study aims to investigate the anisotropic creep behaviour of aluminium alloy 2139 during artificial ageing, through in situ thermomechanical loadings under Electron Backscattered Diffraction (EBSD). EBSD analysis enabled the characterisation of microstructural parameters and the identification of grain misorientations which were further correlated with macroscopic creep strain. In situ analyses were conducted within a Scanning Electron Microscope (SEM) using a micro‑tensile stage that allows simultaneous heating and mechanical loading. Creep tests were performed at 160°C under 50, 100 and 150 MPa along three different orientations in order to investigate the creep behaviour of the alloy. Kernel Average Misorientation (KAM) maps showed a progressive increase of the average KAM values for the different loading conditions, reaching a saturation value after 10 hours. Ex situ tensile tests were conducted on creep‑aged specimens using Digital Image Correlation (DIC). The main mechanical property evolutions (averaged across all orientations) are a 45 % increase in yield stress, a 10 % increase in ultimate tensile stress and a reduction in ductility, characterised by a notable decrease in elongation. Further works will focus on the result repeatability, as well as on the influence of prior deformation on the creep strain.

You have full access to the following eBook
Formability of Metallic Materials Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 388)

Pages:

29-37

DOI:

https://doi.org/10.4028/p-x19oZa

Citation:

Cite this paper

Online since:

April 2026

Authors:

Calixte Gautier*, Pierre Antoine Dubos, David Gloaguen, Baptiste Girault, Maxime Rollin

Keywords:

Aluminum Alloy, Anisotropy, Creep-Ageing, EBSD, Grain Misorientations, In Situ Tests

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] A.D. Smith, D. Lunt, M. Taylor, A. Davis, R. Thomas, F. Martinez, A. Candeias, A. Gholinia, M. Preuss, J.M. Donoghue, A new approach to SEM in-situ thermomechanical experiments through automation, Ultramicroscopy. 280 (2026).

DOI: 10.1016/j.ultramic.2025.114244

Google Scholar

[2] K. C. Ho, J. Lin and T. A. Dean, Constitutive modelling of primary creep for age forming an aluminium alloy, J. Mater. Process. Technol. 153-154 (2004) 122-127.

DOI: 10.1016/j.jmatprotec.2004.04.304

Google Scholar

[3] X. Wang, Z. Shi, J. Lin, A generalised framework for modelling anisotropic creep-ageing deformation and strength evolution of 2xxx aluminium alloys, Int. J. Plast. 182 (2024).

DOI: 10.1016/j.ijplas.2024.104114

Google Scholar

[4] D. Bakavos, P.B. Prangnell, B. Bes, F. Eberl, The effect of silver on microstructural evolution in two 2xxx series Al-alloys with a high Cu:Mg ratio during ageing to a T8 temper, Mater. Sci. Eng. A. 491 (2008) 214-223.

DOI: 10.1016/j.msea.2008.03.014

Google Scholar

[5] J. Rethore (2018). UFreckles (v.2.0). Zenodo.

Google Scholar

[6] D. P. Field, Recent advances in the application or orientation imaging, Ultramicroscopy. 67 (1997) 1-9.

Google Scholar

[7] H. So, S.J. Won, J. Park, S.J. Oh, L. Kang, K.H. Kim, Mechanical properties and microstructural evolution in Al-Cu-Mg-Ag alloy with a CuxMgx/10 content, Mater. Sci. Eng. A. 824 (2021).

DOI: 10.1016/j.msea.2021.141573

Google Scholar

[8] J. Fan, B. Yang, Y. Wang, M. Gao, R. Guan, Enhancing the tensile strength and heat resistance induced by high-density Ω phases in an Al-Cu-Mg-Ag alloy, JMR&T. 18 (2022) 3347-3357.

DOI: 10.1016/j.jmrt.2022.04.015

Google Scholar

[9] X.Y. Liu, Q.L. Pan, X.L. Zhang, S.X. Liang, L.Y. Zheng, F. Gao, H.L. Xie, Effect of stress-ageing on the microstructure and properties of an aging forming Al-Cu-Mg-Ag alloy, Mater. Des. 58 (2014) 247-251.

DOI: 10.1016/j.matdes.2014.01.048

Google Scholar

[10] Y. Xu, L. Zhan, W. Li, Effect of pre-strain on creep ageing behavior of 2524 aluminum alloy, J. Alloys Compd. 619 (2017) 564-571.

DOI: 10.1016/j.jallcom.2016.08.291

Google Scholar

[11] Y. Yang, L. Zhan, R. Shen, X. Yin, X. Li, W. Li, M. Huang, D. He, Effect of pre-deformation on creep age forming of 2219 aluminum alloy: Experimental and constitutive modelling, Mater. Sci. Eng. A. 683 (2017) 227-235.

DOI: 10.1016/j.msea.2016.12.024

Google Scholar

[12] S. Cui, C. Zhang, M. Liu, L. Chen, G. Zhao, Precipitation behavior of an Al-Cu-Li-X alloy and competing relationship among precipitates at different ageing temperatures, Mater. Sci. Eng. A. 814 (2021).

DOI: 10.1016/j.msea.2021.141125

Google Scholar
