Paper Titles
Thickness Scaling of Forming Limit Curves
p.1
Work Hardening of Dual Phase Steel in Subsequent Tensile Testing with Post-Necking Large Pre-Strain
p.11
Crystal Plasticity Finite-Element Simulations of Cup Drawing of a ZX10 Magnesium Alloy Sheet
p.21
In Situ EBSD Characterisation of Anisotropic Creep Behaviour in a Thick AA2139 Part during In-Forming Artificial Ageing
p.29
Microstructural Modification and Bendability Improvement in 1300 MPa Steel via Induction Surface Heat Treatment
p.39
The Interaction of n- and r-Values and Total Elongation in Forming Limit Curves’ Theories
p.47
Theoretical and Experimental Forming Limit Evaluation of High-Strength Steels up to 1500 MPa
p.57
Evaluation and Comparison of a few Methods for the Strain-Path Correction of FLCs
p.67
Investigating the Formability of Aluminium Alloy Tubes by Rubber Bulge Testing
p.73

Microstructural Modification and Bendability Improvement in 1300 MPa Steel via Induction Surface Heat Treatment

Article Preview
View Pdf By email

Abstract:

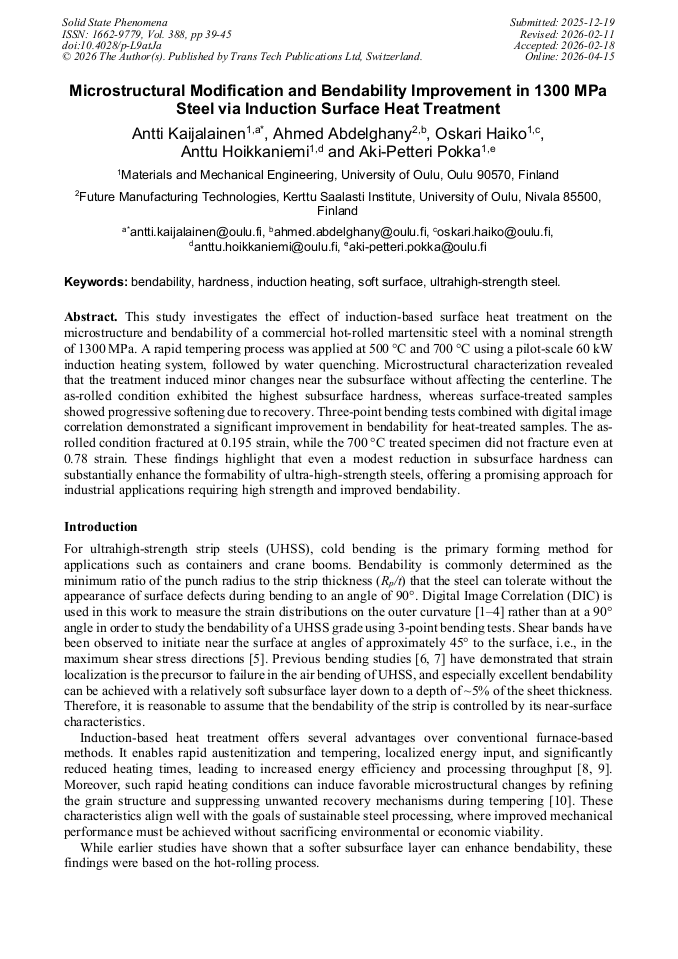

This study investigates the effect of induction-based surface heat treatment on the microstructure and bendability of a commercial hot-rolled martensitic steel with a nominal strength of 1300 MPa. A rapid tempering process was applied at 500 °C and 700 °C using a pilot-scale 60 kW induction heating system, followed by water quenching. Microstructural characterization revealed that the treatment induced minor changes near the subsurface without affecting the centerline. The as-rolled condition exhibited the highest subsurface hardness, whereas surface-treated samples showed progressive softening due to recovery. Three-point bending tests combined with digital image correlation demonstrated a significant improvement in bendability for heat-treated samples. The as-rolled condition fractured at 0.195 strain, while the 700 °C treated specimen did not fracture even at 0.78 strain. These findings highlight that even a modest reduction in subsurface hardness can substantially enhance the formability of ultra-high-strength steels, offering a promising approach for industrial applications requiring high strength and improved bendability.

You have full access to the following eBook
Formability of Metallic Materials Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 388)

Pages:

39-45

DOI:

https://doi.org/10.4028/p-L9atJa

Citation:

Cite this paper

Online since:

April 2026

Authors:

Antti Kaijalainen*, Ahmed Abdelghany, Oskari Haiko, Anttu Jouni Topias Hoikkaniemi, Aki Petteri Pokka

Keywords:

Bendability, Hardness, Induction Heating, Soft Surface, Ultrahigh-Strength Steel

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] A.-P. Pokka, A.-M. Arola, A. Kaijalainen, V. Kesti, J. Larkiola, Strain distribution during air bending of ultra-high strength steels, Proc. ESAFORM 2021 (2021).

DOI: 10.25518/esaform21.2509

Google Scholar

[2] A.-M. Arola, A. Kaijalainen, V. Kesti V, A.-P. Pokka, J. Larkiola, Digital image correlation and optical strain measuring in bendability assessment of ultra-high strength structural steels, Procedia Manuf. 29 (2019) 398–405.

DOI: 10.1016/j.promfg.2019.02.154

Google Scholar

[3] M. Kaupper, M. Merklein, Bendability of advanced high strength steels-A new evaluation procedure, CIRP Ann. Manuf. Technol. 62 (2013) 247–250.

DOI: 10.1016/j.cirp.2013.03.049

Google Scholar

[4] K. Cheong, C. Butcher, J. Dykeman, The influence of the through-thickness strain gradients on the fracture characterization of advanced high-strength steels, SAE Int. J. Mater. Manuf. 11 (2018) 541–552.

DOI: 10.4271/2018-01-0627

Google Scholar

[5] D. Rèche, T. Sturel, O. Bouaziz O, A. Col, A.F. Gourgues-Lorenzon, Damage development in low alloy TRIP-aided steels during air-bending, Mater. Sci. Eng. A 528 (2011) 5241–5250.

DOI: 10.1016/j.msea.2011.03.042

Google Scholar

[6] A. Kaijalainen, P. Suikkanen, L. Karjalainen, D. Porter, Influence of subsurface microstructure on the bendability of ultrahigh-strength strip steel, Mater. Sci. Eng. A 654 (2016) 151–160.

DOI: 10.1016/j.msea.2015.12.030

Google Scholar

[7] A. Kaijalainen, M. Liimatainen, V. Kesti, J. Heikkala, T. Liimatainen, D. Porter, Influence of composition and hot rolling on the subsurface microstructure and bendability of ultrahigh-strength strip, Metall. Mater. Trans. A 47 (2016) 4175–4188.

DOI: 10.1007/s11661-016-3574-8

Google Scholar

[8] N.S. Kim, G.G. Kang, An investigation of flow characteristics considering the effect of viscosity variation in the thixoforming process, J. Mater. Process. Technol. 103 (2000) 237–246.

DOI: 10.1016/s0924-0136(99)00441-0

Google Scholar

[9] H.K. Jung, The induction heating process of semi-solid aluminium alloys for thixoforming and their microstructure evaluation, J. Mater. Process. Technol. 105 (2000) 176–190.

DOI: 10.1016/s0924-0136(00)00567-7

Google Scholar

[10] A. Kaijalainen, O. Haiko, S. Sadeghpour, V. Javaheri, J. Kömi, The influence of rapid tempering on the mechanical and microstructural characteristics of 51CrV4 steel, Metals 14 (2024) 60.

DOI: 10.3390/met14010060

Google Scholar

[11] A. Kaijalainen, A.-P. Pokka, M. Jaskari, J. Kömi, Effect of surface roughness on strain distribution during bending, IOP Conf. Ser. Mater. Sci. Eng. 1270 (2022) 012080.

DOI: 10.1088/1757-899x/1270/1/012080

Google Scholar

[12] A.-P. Pokka, V. Kesti, A. Kaijalainen, Local formability and bendability of UHSS: Correlations between bending and tensile fracture strains. Int. J. Solids Struct. 320 (2025) 113524.a.

DOI: 10.2139/ssrn.5149491

Google Scholar
