Investigating the Formability of Aluminium Alloy Tubes by Rubber Bulge Testing

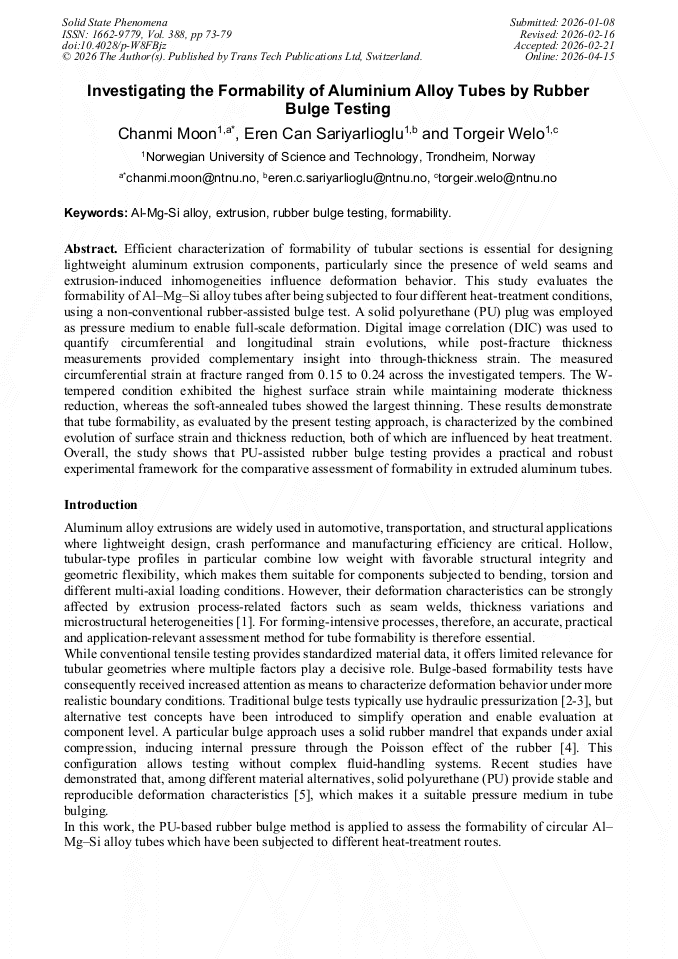

Article Preview
View Pdf By email

Abstract:

Efficient characterization of formability of tubal sections is essential for designing lightweight aluminum extrusion components, particularly since the presence of weld seams and extrusion-induced inhomogeneities influence deformation behavior. This study evaluates the formability of Al–Mg–Si alloy tubes after being subjected to four different heat-treatment conditions, using a non-conventional rubber-assisted bulge test. A solid polyurethane (PU) plug was employed as pressure medium to enable full-scale deformation. Digital image correlation (DIC) was used to quantify circumferential and longitudinal strain evolutions, while post-fracture thickness measurements provided complementary insight into through-thickness strain.The measured circumferential strain at fracture ranged from 0.15 to 0.24 across the investigated tempers. The W-tempered condition exhibited the highest surface strain while maintaining moderate thickness reduction, whereas the soft-annealed tubes showed the largest thinning. The as-received and naturally aged conditions displayed similar deformation responses. These results demonstrate that tube formability, as evaluated by the present testing approach, is characterized by the combined evolution of surface strain and thickness reduction, both of which are influenced by heat treatment. Overall, the study shows that PU-assisted rubber bulge testing provides a practical and robust experimental framework for the comparative assessment of formability in extruded aluminum tubes.

You have full access to the following eBook
Formability of Metallic Materials Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 388)

Pages:

73-79

DOI:

https://doi.org/10.4028/p-W8FBjz

Citation:

Cite this paper

Online since:

April 2026

Authors:

Chanmi Moon*, Eren Can Sariyarlioglu, Togeir Welo

Keywords:

Al-Mg-Si Alloy, Extrusion, Formability, Rubber Bulge Testing

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Reggiani, B., Segatori, A., Donati, L., Tomesani, L., Terenzi, A., & Salice, A. (2014). Comparison of bulge test vs. conical expansion test for hollow extruded profile characterization. Key Engineering Materials, 585, 111-119.

DOI: 10.4028/www.scientific.net/kem.585.111

Google Scholar

[2] Thiruvarudchelvan, S., Seet, G. L., & Ang, H. E. (1996). Computer-monitored hydraulic bulging of tubes. Journal of materials processing technology, 57(1-2), 182-188.

DOI: 10.1016/0924-0136(95)02059-4

Google Scholar

[3] Sokolowski, T., Gerke, K., Ahmetoglu, M., & Altan, T. (2000). Evaluation of tube formability and material characteristics: hydraulic bulge testing of tubes. Journal of Materials Processing Technology, 98(1), 34-40.

DOI: 10.1016/s0924-0136(99)00303-9

Google Scholar

[4] Reggiani, B., & Donati, L. (2020). Comparison of experimental methods to evaluate seam welds quality in extruded profiles. Transactions of Nonferrous Metals Society of China, 30(3), 619-634.

DOI: 10.1016/s1003-6326(20)65241-4

Google Scholar

[5] Yang, J., Li, H., Huang, D., Li, G., & Yuan, S. (2020). Forming of thin-walled AA6061-T4 tubular joint by elastomeric bulging: experiment and computation. The International Journal of Advanced Manufacturing Technology, 107(1), 25-38.

DOI: 10.1007/s00170-020-05006-5

Google Scholar

[6] Chu, E., & Xu, Y. (2004). Hydroforming of aluminum extrusion tubes for automotive applications. Part I: buckling, wrinkling and bursting analyses of aluminum tubes. International journal of mechanical sciences, 46(2), 263-283.

DOI: 10.1016/j.ijmecsci.2004.02.014

Google Scholar

[7] Li, Y., Wang, Q. P., Gao, G. J., Li, J. D., Wang, Z. D., & Xu, G. M. (2019). Texture evolution and mechanical properties of Al–Mg–Si alloys at different intermediate annealing temperatures. Rare Metals, 38(10), 937-945.

DOI: 10.1007/s12598-019-01315-1

Google Scholar

[8] Zhang, R., Wang, W., & Jiang, J. (2025). Precipitation hardening: Unravelling mechanisms of trade-off between strength and ductility/formability of Al-Mg-Si alloys. Journal of Alloys and Compounds, 1012, 178443.

DOI: 10.1016/j.jallcom.2025.178443

Google Scholar

[9] Zheng, K., Zhu, L., Lin, J., Dean, T. A., & Li, N. (2019). An experimental investigation of the drawability of AA6082 sheet under different elevated temperature forming processes. Journal of Materials Processing Technology, 273, 116225.

DOI: 10.1016/j.jmatprotec.2019.05.006

Google Scholar

[10] Moon, C., Thuillier, S., Lee, J., & Lee, M. G. (2021). Mechanical properties of solution heat treated Al-Zn-Mg-Cu (7075) alloy under different cooling conditions: Analysis with full field measurement and finite element modeling. Journal of Alloys and Compounds, 856, 158180.

DOI: 10.1016/j.jallcom.2020.158180

Google Scholar

[11] Chen, L., Yuan, S., Kong, D., Zhao, G., He, Y., & Zhang, C. (2019). Influence of aging treatment on the microstructure, mechanical properties and anisotropy of hot extruded Al-Mg-Si plate. Materials & Design, 182, 107999.

DOI: 10.1016/j.matdes.2019.107999

Google Scholar
