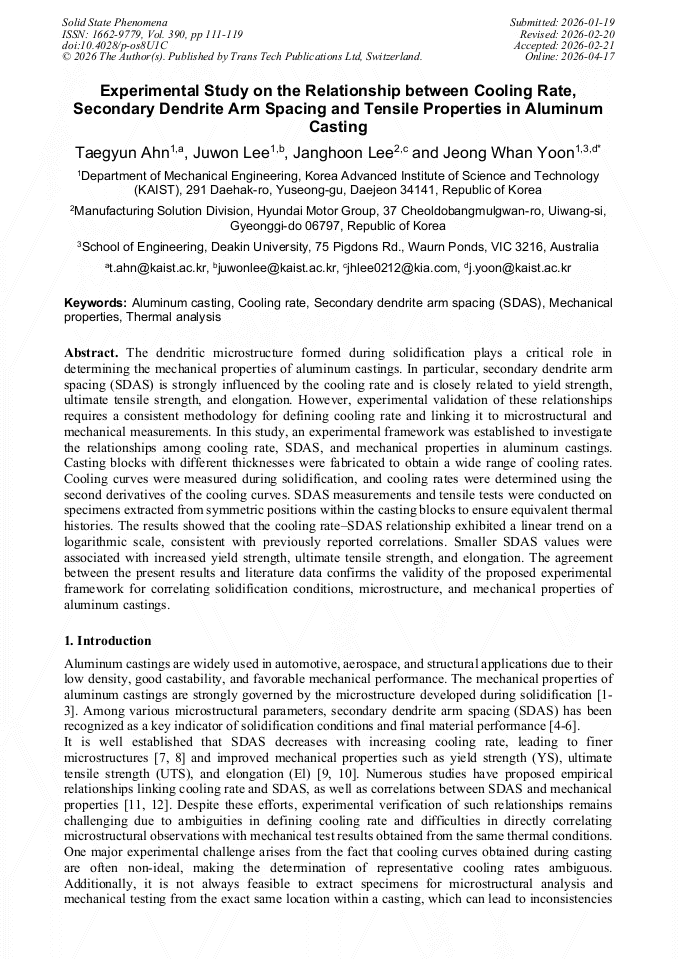

Experimental Study on the Relationship between Cooling Rate, Secondary Dendrite Arm Spacing and Tensile Properties in Aluminum Casting

Abstract:

The dendritic microstructure formed during solidification plays a critical role in determining the mechanical properties of aluminum castings. In particular, secondary dendrite arm spacing (SDAS) is strongly influenced by the cooling rate and is closely related to yield strength, ultimate tensile strength, and elongation. However, experimental validation of these relationships requires a consistent methodology for defining cooling rate and linking it to microstructural and mechanical measurements. In this study, an experimental framework was established to investigate the relationships among cooling rate, SDAS, and mechanical properties in aluminum castings. Casting blocks with different thicknesses were fabricated to obtain a wide range of cooling rates. Cooling curves were measured during solidification, and cooling rates were determined using the second derivatives of the cooling curves. SDAS measurements and tensile tests were conducted on specimens extracted from symmetric positions within the casting blocks to ensure equivalent thermal histories. The results showed that the cooling rate–SDAS relationship exhibited a linear trend on a logarithmic scale, consistent with previously reported correlations. Smaller SDAS values were associated with increased yield strength, ultimate tensile strength, and elongation. The agreement between the present results and literature data confirms the validity of the proposed experimental framework for correlating solidification conditions, microstructure, and mechanical properties of aluminum castings.

• Periodical: Solid State Phenomena (Volume 390)
• Pages: 111-119
• DOI: https://doi.org/10.4028/p-os8U1C
• Online since: April 2026
• Authors: Taegyun Ahn*, Juwon Lee, Janghoon Lee, Jeong Whan Yoon
• Keywords: Aluminum Casting, Cooling Rate, Mechanical Properties, Secondary Dendrite Arm Spacing (SDAS), Thermal Analysis

References

[1] C.D. Lee, K.S Shin, Effects of precipitate and dendrite arm spacing on tensile properties and fracture behavior of as-cast magnesium-aluminum alloys, Met. Mater. Int. 9 (2003) 21–27.

DOI: 10.1007/bf03027225

[2] H. Cao, M. Wessén, Effect of microstructure on mechanical properties of as-cast Mg-Al alloys, Metall. Mater. Trans. A-Phys. Metall. Mater. Sci. 35 (2004) 309–319.

DOI: 10.1007/s11661-004-0132-6

[3] M. Okayasu, K. Ota, S. Takeuchi, H. Ohfuji, T. Shiraishi, Influence of microstructural characteristics on mechanical properties of ADC12 aluminum alloy, Mater. Sci. Eng. A-Struct. Mater. Prop. Microstruct. Process. 592 (2014) 189-200.

DOI: 10.1016/j.msea.2013.10.098

[4] M. Wierzbińska, J. Sieniawski, Effect of dendrite arm spacing on cleavage fracture toughness of Al–5Si–1Cu alloy, Int. J. Cast. Metals Res. 17.5 (2004) 267-270.

DOI: 10.1179/136404604225020632

[5] M.Ş. Turhal, T. Savaşkan, Relationships between secondary dendrite arm spacing and mechanical properties of Zn-40Al-Cu alloys, J. Mater. Sci. 38 (2003) 2639–2646.

DOI: 10.1023/a:1024434602540

[6] G.A. Santos, C. de Moura Neto, W.R. Osório, A. Garcia, Design of mechanical properties of a Zn27Al alloy based on microstructure dendritic array spacing, Mater. Des. 28.9 (2007) 2425-2430.

DOI: 10.1016/j.matdes.2006.09.009

[7] M.C. Flemings, Solidification Processing, McGraw-Hill, 1974, Chapter 5.

[8] R. Chen, Y. Shi, Q. Xu, B. Liu, Effect of cooling rate on solidification parameters and microstructure of Al-7Si-0.3Mg-0.15Fe alloy, Transactions of Nonferroues Metals Society of China 24.6 (2014) 1645-1652.

DOI: 10.1016/s1003-6326(14)63236-2

[9] Y. Ding, J.A. Muñiz-Lerma, M. Trask, S. Chou, A. Walker, M. Brochu, Microstructure and mechanical property considerations in additive manufacturing of aluminum alloys, MRS Bull. 41 (2016), 745-751.

DOI: 10.1557/mrs.2016.214

[10] M.O. Shabani, A. Mazahery, Prediction of mechanical properties of cast A356 alloy as a function of microstructure and cooling rate. Arch. Metall. Mater. 56.3 (2011) 671-675.

DOI: 10.2478/v10172-011-0073-1

[11] H. Tang, Q. Wang, C. Lei, B. Ye, K. Wang, H. Jiang, W. Ding, X. Zhang, Z. Lin, J. Zhang, Effect of cooling rate on microstructure and mechanical properties of an Al-5.0 Mg-3.0 Zn-1.0 Cu cast alloy. J. Alloy. Compd. 801 (2019) 596-608.

DOI: 10.1016/j.jallcom.2019.06.002

[12] M. J. Behnam, P. Davami, N. Varahram, Effect of cooling rate on microstructure and mechanical properties of gray cast iron. Mater. Sci. Eng. A-Struct. Mater. Prop. Microstruct. Process. 528.2 (2010) 583-588.

DOI: 10.1016/j.msea.2010.09.087

[13] D.M. Stefanescu, Thermal analysis—theory and applications in metalcasting. Int. J. Met. 9:1 (2015) 7-22.

[14] G. Alonso, P. Larrañaga, J. Sertucha, R. Suárez, Gray cast iron with high austenite-to-eutectic ratio part I – calculation and experimental evaluation of the fraction of primary austenite in cast iron, Trans. AFS, 120 (2012) 329-335.

[15] G.A. Chadwick, Metallography of phase transformations, Butterworth, 1974, 107-147.

[16] L.E. Ramirez-Vidaurri, M. Castro-Roman, M. Herrera-Trejo, K.L. Fraga-Chavez, Secondary dendritic arm spacing and cooling rate relationship for an ASTM F75 alloy, J. Mater. Res. Technol-JMRT 19 (2022) 5049-5065.

DOI: 10.1016/j.jmrt.2022.06.146

[17] P.R. Goulart, J.E. Spinelli, W.R. Osório, A. Garcia, Mechanical properties as a function of microstructure and solidification thermal variables of Al–Si castings, Mater. Sci. Eng. A-Struct. Mater. Prop. Microstruct. Process. 421.1-2 (2006) 245-253.

DOI: 10.1016/j.msea.2006.01.050

[18] G. Sigworth, Fundamentals of solidification in aluminum castings. Int. J. Metalcast. 8.1 (2014) 7–20.

[19] S. Liu, G. Huang, M. Gupta, B. Jiang, F. Pan, Microstructures, mechanical properties and deformation mechanism of heterogeneous metal materials: A review, J. Mater. Sci. Technol. 248 (2026) 1-46.

DOI: 10.1016/j.jmst.2025.03.109
