Modeling Transient Temperature-Driven Microstructure Evolution in Inconel 718 during Hot Forming

Article Preview

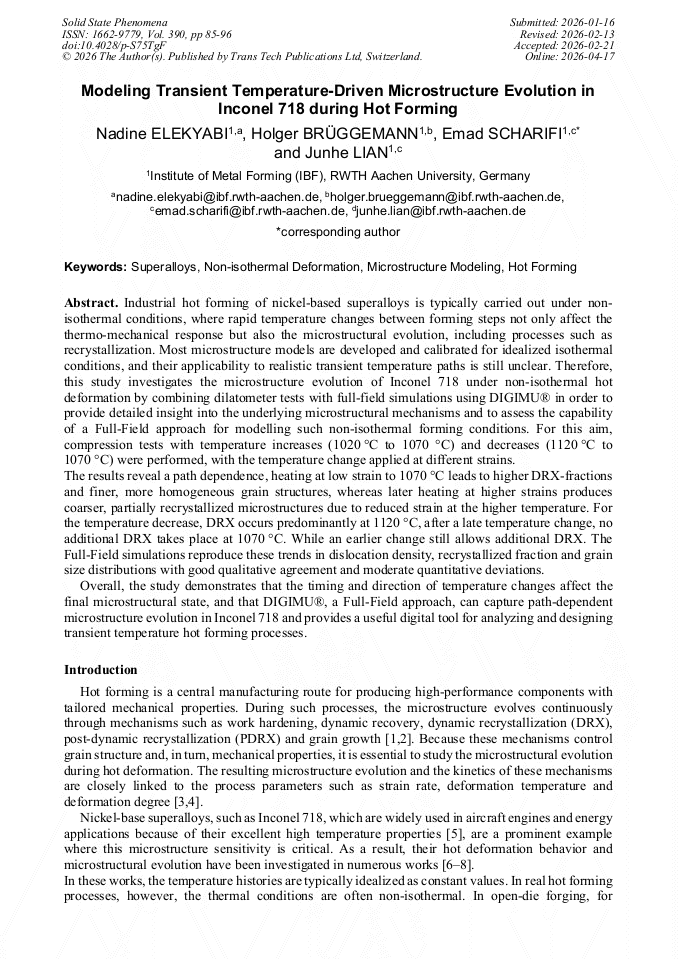

Abstract:

Industrial hot forming of nickel-based superalloys is typically carried out under non-isothermal conditions, where rapid temperature changes between forming steps not only affect the thermo-mechanical response but also the microstructural evolution, including processes such as recrystallization. Most microstructure models are developed and calibrated for idealized isothermal conditions, and their applicability to realistic transient temperature paths is still unclear. Therefore, this study investigates the microstructure evolution of Inconel 718 under non-isothermal hot deformation by combining dilatometer tests with full-field simulations using DIGIMU® in order to provide detailed insight into the underlying microstructural mechanisms and to assess the capability of a Full-Field approach for modelling such non-isothermal forming conditions. For this aim, compression tests with temperature increases (1020 °C to 1070 °C) and decreases (1120 °C to 1070 °C) were performed, with the temperature change applied at different strains. The results reveal a path dependence, heating at low strain to 1070 °C leads to higher DRX-fractions and finer, more homogeneous grain structures, whereas later heating at higher strains produces coarser, partially recrystallized microstructures due to reduced strain at the higher temperature. For the temperature decrease, DRX occurs predominantly at 1120 °C, after a late temperature change, no additional DRX takes place at 1070 °C. While an earlier change still allows additional DRX. The Full-Field simulations reproduce these trends in dislocation density, recrystallized fraction and grain size distributions with good qualitative agreement and moderate quantitative deviations. Overall, the study demonstrates that the timing and direction of temperature changes affect the final microstructural state, and that DIGIMU®, a Full-Field approach, can capture path-dependent microstructure evolution in Inconel 718 and provides a useful digital tool for analyzing and designing transient temperature hot forming processes.

You have full access to the following eBook

Info:

Periodical:

Solid State Phenomena (Volume 390)

Pages:

85-96

Citation:

Online since:

April 2026

Funder:

The publication of this article was funded by the RWTH Aachen University 10.13039/501100007210

Export:

Share:

Citation:

* - Corresponding Author

[1] R. Bobbili, V. Madhu, An investigation into hot deformation characteristics and processing maps of high-strength armor steel, Journal of Materials Engineering and Performance 24 (2015) 4728–4735.

DOI: 10.1007/s11665-015-1796-3

Google Scholar

[2] S. Spigarelli, A. Jäger, M. El Mehtedi, V. Gärtnerová, Microstructural and constitutive analysis in process modeling of hot working: The case of a Mg-Zn-Mn alloy, Materials Science and Engineering: A 661 (2016) 40–50.

DOI: 10.1016/j.msea.2016.03.008

Google Scholar

[3] M. Hasan Nasab, S. Serajzadeh, Thermal stresses and kinetics of phase transformation on the run-out table after hot strip rolling of low-carbon steels, The International Journal of Advanced Manufacturing Technology 83 (2016) 1725–1736.

DOI: 10.1007/s00170-015-7604-2

Google Scholar

[4] F. Qin, Y. Li, H. Qi, X. Wei, Microstructure and mechanical properties of as-cast 42CrMo ring blank during hot rolling and subsequent quenching and tempering, Journal of Materials Engineering and Performance 26 (2017) 1300–1310.

DOI: 10.1007/s11665-016-2497-2

Google Scholar

[5] H. Zhang, C. Li, Y. Liu, Q. Guo, H. Li, Precipitation behavior during high-temperature isothermal compressive deformation of Inconel 718 alloy, Materials Science and Engineering: A 677 (2016) 515–521.

DOI: 10.1016/j.msea.2016.09.088

Google Scholar

[6] Y.C. Lin, F.-Q. Nong, X.-M. Chen, D.-D. Chen, M.-S. Chen, Microstructural evolution and constitutive models to predict hot deformation behaviors of a nickel-based superalloy, Vacuum 137 (2017) 104–114.

DOI: 10.1016/j.vacuum.2016.12.022

Google Scholar

[7] P. Zhang, C. Yi, G. Chen, H. Qin, C. Wang, Constitutive model based on dynamic recrystallization behavior during thermal deformation of a nickel-based superalloy, Metals 6 (2016) 161.

DOI: 10.3390/met6070161

Google Scholar

[8] S.S. Satheesh Kumar, T. Raghu, P.P. Bhattacharjee, G. Appa Rao, U. Borah, Constitutive modeling for predicting peak stress characteristics during hot deformation of hot isostatically processed nickel-base superalloy, Journal of Materials Science 50 (2015) 6444–6456.

DOI: 10.1007/s10853-015-9200-0

Google Scholar

[9] N.V. Jagtap, N. Reinisch, R. Abdusalamov, D. Bailly, M. Itskov, Modeling of equivalent strain in 2D cross-sections of open die forged components using neural networks, Advances in Industrial and Manufacturing Engineering 9 (2024) 100152.

DOI: 10.1016/j.aime.2024.100152

Google Scholar

[10] Y.C. Lin, F. Wu, Q.-W. Wang, D.-D. Chen, S.K. Singh, Microstructural evolution of a Ni-Fe-Cr-base superalloy during non-isothermal two-stage hot deformation, Vacuum 151 (2018) 283–293.

DOI: 10.1016/j.vacuum.2018.02.034

Google Scholar

[11] B. Scholtes, M. Shakoor, A. Settefrati, P.-O. Bouchard, N. Bozzolo, M. Bernacki, New finite element developments for the full field modeling of microstructural evolutions using the level-set method, Computational Materials Science 109 (2015) 388–398.

DOI: 10.1016/j.commatsci.2015.07.042

Google Scholar

[12] P.O. de Micheli, L. Maire, D. Cardinaux, C. Moussa, N. Bozzolo, M. Bernacki, DIGIMU®: Full field recrystallization simulations for optimization of multi-pass processes, in: PROCEEDINGS OF THE 22ND INTERNATIONAL ESAFORM CONFERENCE ON MATERIAL FORMING: ESAFORM 2019, AIP Publishing, 2019, p.40014.

DOI: 10.1063/1.5112548

Google Scholar

[13] B. Flipon, N. Bozzolo, M. Bernacki, A simplified intragranular description of dislocation density heterogeneities to improve dynamically recrystallized grain size predictions, Materialia 26 (2022) 101585.

DOI: 10.1016/j.mtla.2022.101585

Google Scholar

[14] A. Yoshie, H. Morikawa, Y. Onoe, K. Itoh, Formulation of static recrystallization of austenite in hot rolling process of steel plate, Transactions of the Iron and Steel Institute of Japan 27 (1987) 425–431.

DOI: 10.2355/isijinternational1966.27.425

Google Scholar

[15] DIN EN ISO 643: 2013-05, Stahl - Mikrophotographische Bestimmung der erkennbaren Korngröße (ISO_643:2012): Deutsche Fassung.

DOI: 10.31030/1941325

Google Scholar

[16] H. Brüggemann, A. Quadfasel, J.A. Nietsch, M. Teller, P. de Micheli, B. Flipon, M. Bernacki, Korngrößenvorhersage beim Freiformschmieden von Inconel 718 mit DIGIMU®, massivUMFORMUNG 2021 (2021) 50–54.

Google Scholar

[17] J. Agirre, D. Bernal, B. Flipon, M. Bernacki, H. Brüggemann, D. Bailly, M. Merklein, H. Hagenah, J.H. Risse, Ł. Madej, K. Muszka, K. Cichocki, Ł. Poloczek, O. Bylya, A. Reshetov, P. de Micheli, J. Barlier, A. Stark, U.F.H. Suhuddin, P. Staron, B. Klusemann, L. Galdos, The ESAFORM benchmark 2023: interlaboratory comparison benchmark for the characterization of microstructural grain growth and dynamic recrystallization kinetics of a single-phase Ni-base superalloy, Int J Mater Form 18 (2025).

DOI: 10.1007/s12289-025-01893-9

Google Scholar
