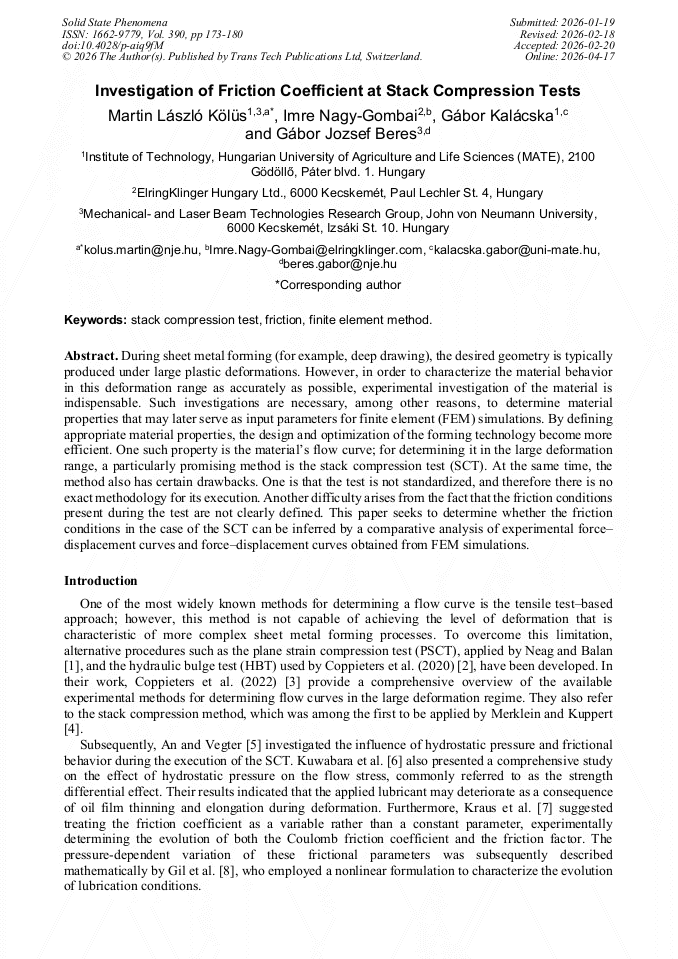

Investigation of Friction Coefficient at Stack Compression Tests

Abstract:

During sheet metal forming (for example, deep drawing), the desired geometry is typically produced under large plastic deformations. However, in order to characterize the material behavior in this deformation range as accurately as possible, experimental investigation of the material is indispensable. Such investigations are necessary, among other reasons, to determine material properties that may later serve as input parameters for finite element (FEM) simulations. By defining appropriate material properties, the design and optimization of the forming technology become more efficient. One such property is the material’s flow curve; for determining it in the large deformation range, a particularly promising method is the stack compression test (SCT). At the same time, the method also has certain drawbacks. One is that the test is not standardized, and therefore there is no exact methodology for its execution. Another difficulty arises from the fact that the friction conditions present during the test are not clearly defined. In this paper, we seek to determine whether the friction conditions in the case of the SCT can be inferred by a comparative analysis of experimental force–displacement curves and force–displacement curves obtained from FEM simulations.

• Periodical: Solid State Phenomena (Volume 390)
• Pages: 173-180
• DOI: https://doi.org/10.4028/p-aiq9fM
• Online since: April 2026
• Authors: Martin László Kölüs*, Imre Nagy-Gombai, Gábor Kalácska, Gábor Jozsef Beres
• Keywords: Finite Element Method, Friction, Stack Compression Test

References

[1] Neag A, Balan T. Verification of flow curve determination from plane strain compression tests. CIRP J Manuf Sci Technol 2025;63:554–65.

DOI: 10.1016/j.cirpj.2025.11.005

[2] Coppieters S, Jackel M, Kraus C, Kuwabara T, Barlat F. Influence of a Hydrostatic Pressure Shift on the Flow Stress in Sheet Metal. Procedia Manuf 2020;47:1245–9.

DOI: 10.1016/J.PROMFG.2020.04.196

[3] Coppieters S, Traphöner H, Stiebert F, Balan T, Kuwabara T, Tekkaya AE. Large strain flow curve identification for sheet metal. J Mater Process Technol 2022;308:117725.

DOI: 10.1016/J.JMATPROTEC.2022.117725

[4] Merklein M, Kuppert A. A method for the layer compression test considering the anisotropic material behavior. International Journal of Material Forming 2009;2:483–6.

DOI: 10.1007/s12289-009-0592-8

[5] An YG, Vegter H. Analytical and experimental study of frictional behavior in through-thickness compression test. J Mater Process Technol 2005;160:148–55.

DOI: 10.1016/j.jmatprotec.2004.05.026

[6] Kuwabara T, Tachibana R, Takada Y, Koizumi T, Coppieters S, Barlat F. Effect of hydrostatic stress on the strength differential effect in low-carbon steel sheet. International Journal of Material Forming 2022;15:13.

DOI: 10.1007/s12289-022-01650-2

[7] Kraus M, Lenzen M, Merklein M. Contact pressure-dependent friction characterization by using a single sheet metal compression test. Wear 2021;476:203679.

DOI: 10.1016/j.wear.2021.203679

[8] Gil I, Mendiguren J, Galdos L, Mugarra E, Saenz de Argandoña E. Influence of the pressure dependent coefficient of friction on deep drawing springback predictions. Tribol Int 2016;103:266–73.

DOI: 10.1016/J.TRIBOINT.2016.07.004

[9] LU R, LIU Y, LI M, YAN M, SUN J, HUANG H. A pathway to refined stress and strain distributions in aerospace-grade Ti/Al bi-metal sheets: Synergizing theoretical insights and FEM simulations. Chinese Journal of Aeronautics 2024;37:493–516.

DOI: 10.1016/j.cja.2024.07.025

[10] Wang C, Daniel WJT, Lu H, Liu S, Meehan PA. FEM Investigation of Ductile Fracture Prediction in Two-Point Incremental Sheet Metal Forming process. Procedia Eng 2017;207:836–41.

DOI: 10.1016/j.proeng.2017.10.838

[11] KÖLÜS ML, BORBÉLY Richárd, BÉRES Gábor J. The effect of friction compensation on the slope of flow curves obtained by stack compression tests, 2024, p.1182–9.

DOI: 10.21741/9781644903131-131
