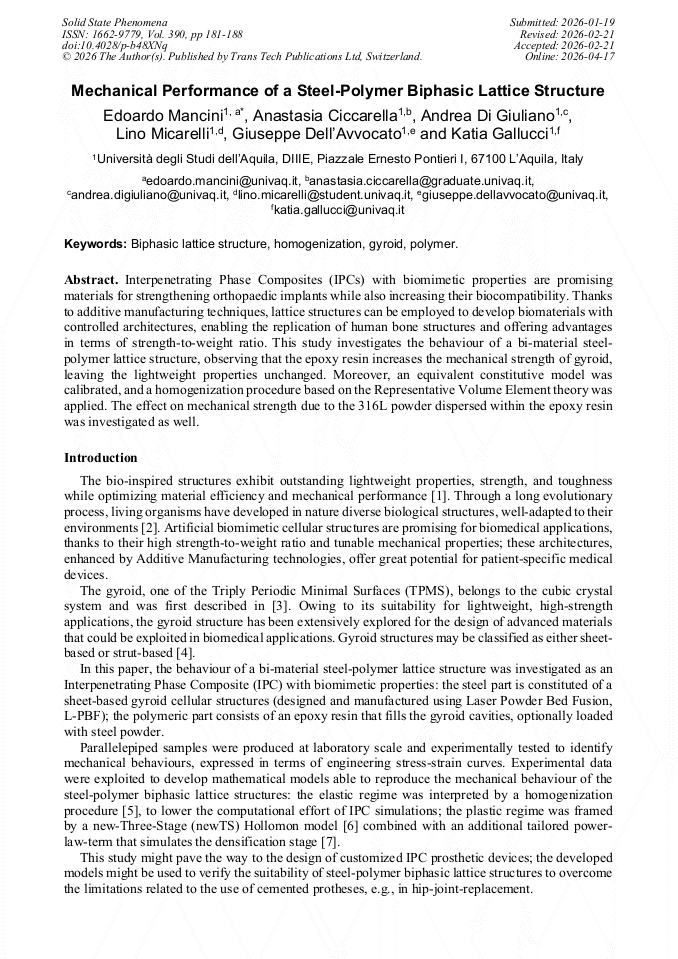

Mechanical Performance of a Steel-Polymer Biphasic Lattice Structure

Interpenetrating Phase Composites (IPCs) with biomimetic properties are promising materials for strengthening orthopaedic implants while also increasing their biocompatibility. Thanks to additive manufacturing techniques, lattice structures can be employed to develop biomaterials with controlled architectures, enabling the replication of human bone structures and offering advantages in terms of strength-to-weight ratio. This study investigates the behaviour of a bi-material steel-polymer lattice structure, observing that the epoxy resin increases the mechanical strength of gyroid, leaving the lightweight properties unchanged. Moreover, an equivalent constitutive model was calibrated, and a homogenization procedure based on the Representative Volume Element theory was applied. The effect on mechanical strength due to the 316L powder dispersed within the epoxy resin was investigated as well.

You have full access to the following eBook

Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 390)

Pages:

181-188

DOI:

https://doi.org/10.4028/p-b48XNq

Citation:

Cite this paper

Online since:

April 2026

Authors:

Edoardo Mancini*, Anastasia Ciccarella, Andrea Di Giuliano, Lino Micarelli, Giuseppe Dell'Avvocato, Katia Gallucci

Keywords:

Biphasic Lattice Structure, Gyroid, Homogenization, Polymer

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] L. Guo et al., Integrated biomimetic biphasic structures for high-strain-rate resistance and thermal insulation: Design, fabrication and performance characterization, Eng. Sci. Technol. Int. J. 67 (2025).

DOI: 10.1016/j.jestch.2025.102088

Google Scholar

[2] D. Ramakrishna, G. Bala Murali, Bio-inspired 3D-printed lattice structures for energy absorption applications: A review, Proc. Inst. Mech. Eng., Part L: J. Mater. Design Appl. 237 (3) (2022) 503–542.

DOI: 10.1177/14644207221121948

Google Scholar

[3] H. Shoen, Alan, Infinite Periodic Minimal Surface without Intersections, NASA. (1970).

Google Scholar

[4] D. Li, W. Liao, N. Dai, Y.M. Xie, Absorption of Sheet-Based and Strut-Based Gyroid, Materials (Basel). (2019).

Google Scholar

[5] E. Mancini, M. Utzeri, E. Farotti, A. Lattanzi, and M. Sasso, "DLP printed 3D gyroid structure: Mechanical response at meso and macro scale," Mechanics of Materials, vol. 192, May 2024.

DOI: 10.1016/j.mechmat.2024.104970

Google Scholar

[6] M. Utzeri et al., Quasi-Static and Dynamic Behavior of Inconel 625 Obtained by Laser Metal Deposition: Experimental Characterization and Constitutive Modeling, J. Eng. Mater. Technol. 143 (2021).

DOI: 10.1115/1.4051087

Google Scholar

[7] E. Mancini et al. Definition of a unified material model for cellular materials with high morphological and topological dispersion: Application to an AA7075-T6 aluminium foam, Materials Science & Engineering A, 833 (2022).

DOI: 10.1016/j.msea.2021.142346

Google Scholar

[8] Ciccarella, A., Dell'Avvocato, G., Cortis, G., & Mancini, E. (2025). Meso-and macroscale modelling strategies for biomimetic structures produced using L-PBF technology. Material Forming: ESAFORM 2025, 313.

DOI: 10.21741/9781644903599-34

Google Scholar

[9] C.M. Zener, S. Siegel, Elasticity and Anelasticity of Metals, J. Phys. Colloid Chem. 53 (1949) 1468–1468.

DOI: 10.1021/j150474a017

Google Scholar
