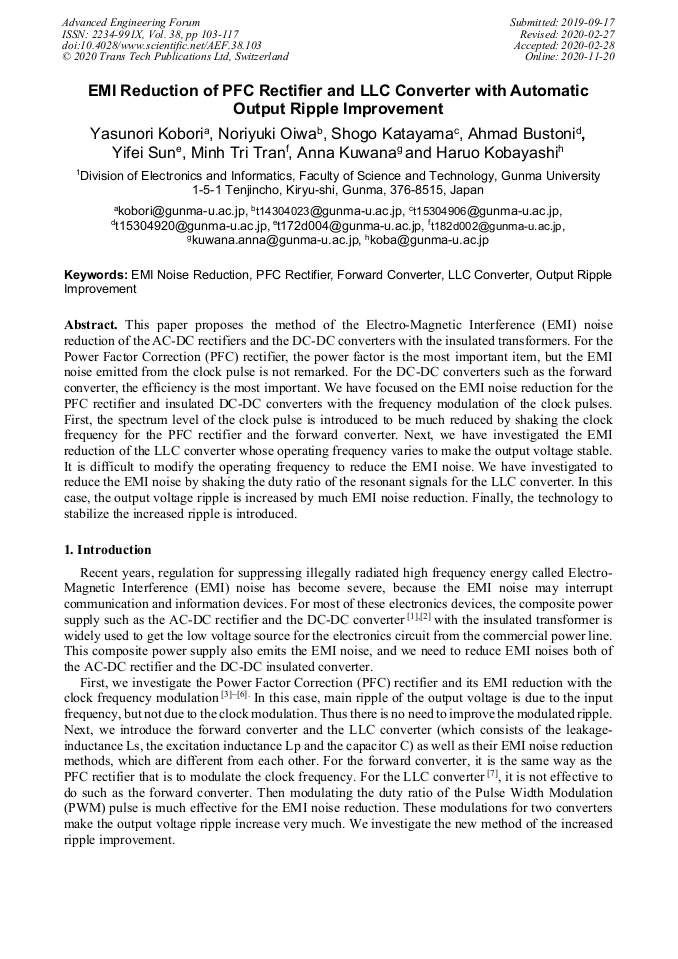

EMI Reduction of PFC Rectifier and LLC Converter with Automatic Output Ripple Improvement

Abstract:

This paper proposes the method of the Electro-Magnetic Interference (EMI) noise reduction of the AC-DC rectifiers and the DC-DC converters with the insulated transformers. For the Power Factor Correction (PFC) rectifier, the power factor is the most important item, but the EMI noise emitted from the clock pulse is not remarked. For the DC-DC converters such as the forward converter, the efficiency is the most important. We have focused on the EMI noise reduction for the PFC rectifier and insulated DC-DC converters with the frequency modulation of the clock pulses. First, the spectrum level of the clock pulse is introduced to be much reduced by shaking the clock frequency for the PFC rectifier and the forward converter. Next, we have investigated the EMI reduction of the LLC converter whose operating frequency varies to make the output voltage stable. It is difficult to modify the operating frequency to reduce the EMI noise. We have investigated to reduce the EMI noise by shaking the duty ratio of the resonant signals for the LLC converter. In this case, the output voltage ripple is increased by much EMI noise reduction. Finally, the technology to stabilize the increased ripple is introduced.

• Periodical: Advanced Engineering Forum (Volume 38)
• Pages: 103-117
• DOI: https://doi.org/10.4028/www.scientific.net/AEF.38.103
• Online since: November 2020
• Authors: Yasunori Kobori*, Noriyuki Oiwa, Shogo Katayama, Ahmad Bustoni, Yi Fei Sun, Minh Tri Tran, Anna Kuwana, Haruo Kobayashi
• Keywords: EMI Noise Reduction, Forward Converter, LLC Converter, Output Ripple Improvement, PFC Rectifier

References

[1] R. W. Erickson, D. Maksimovic, Principles of Steady-State Converter Analysis, in Fundamentals of Power Electronics, Kluwer Academic Publishers, Netherlands, (2004).

[2] T. Sato, Control Schemes of Switching Converters, in Handbook of Power Management Circuits, (editors: H. Kobayashi, T Nabeshima), Pan Stanford Publishers, USA, (2016).

[3] N. Oiwa, S. Sakurai, Y. Sun, T. M. Tri, J. Li, Y. Kobori, H. Kobayashi, EMI Noise Reduction for PFC Converter,, IEEE 14th International Conference on Solid-State and Integrated Circuit Technology (ICSICT), Qingdao, China (Nov. 2018).

DOI: 10.1109/icsict.2018.8564954

[4] A. Bustoni, N. Oiwa, S. Sakurai, Y. Sun, Y. Kobori, H. Kobayashi, Bridge-less Power Factor Correction Converter with Adaptive Switching Pulse Enabling Control,, International Conference on Mechanical, Electrical and Medical Intelligent System 2018 (ICMEMS), Kiryu, Japan (Nov. 2018).

[5] N. Oiwa, S. Katayama, Y. Kobori, A. Kuwana, H. Kobayashi, High-Efficiency Full-Bridgeless PFC Power Supply Circuit,, The 5th Taiwan and Japan Conference on Circuits and Systems (TJCAS 2019), Nikko, Japan (Aug. 2019).

[6] N. Oiwa, S. Katayama, N. Tsukiji, Y. Kobori, H. Kobayashi, A Study on EMI Noise Reduction in Boost-Type PFC Circuit,, International Conference on Technology and Social Science 2018 (ICTSS), Kiryu, Japan (Apr. 2018).

[7] S. Katayama, N. Oiwa, Y. Kobori, A. Kuwana, H. Kobayashi, Output Voltage Ripple Reduction with Nosie Spread Spectrum for Dual-Phase LLC Resonant Converter,, IEEE 13th International Conference on ASIC (ASICON), Chongqing, China (Oct. 2019).

DOI: 10.1109/asicon47005.2019.8983563
