Thermo-Hydraulic Performance of Natural Convection in a Triangular Enclosure with a Vertically Displaced Heat Source

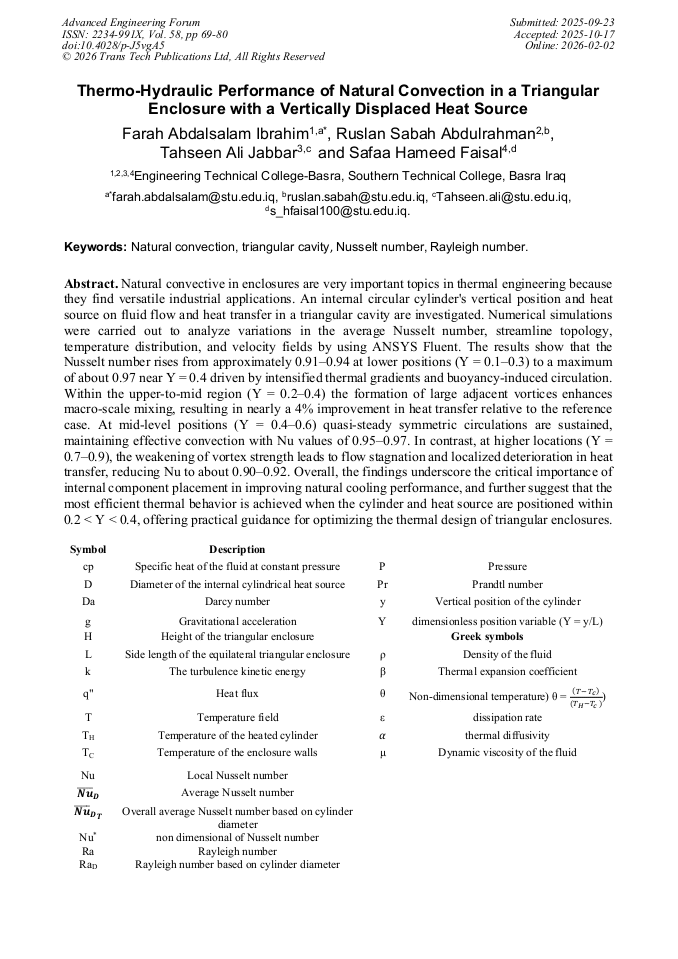

Abstract:

Natural convective in enclosures are very important topics in thermal engineering because they find versatile industrial applications. An internal circular cylinder's vertical position and heat source on fluid flow and heat transfer in a triangular cavity are investigated. Numerical simulations were carried out to analyze variations in the average Nusselt number, streamline topology, temperature distribution, and velocity fields by using ANSYS Fluent. The results show that the Nusselt number rises from approximately 0.91–0.94 at lower positions (Y = 0.1–0.3) to a maximum of about 0.97 near Y = 0.4 driven by intensified thermal gradients and buoyancy-induced circulation. Within the upper-to-mid region (Y = 0.2–0.4) the formation of large adjacent vortices enhances macro-scale mixing, resulting in nearly a 4% improvement in heat transfer relative to the reference case. At mid-level positions (Y = 0.4–0.6) quasi-steady symmetric circulations are sustained, maintaining effective convection with Nu values of 0.95–0.97. In contrast, at higher locations (Y = 0.7–0.9), the weakening of vortex strength leads to flow stagnation and localized deterioration in heat transfer, reducing Nu to about 0.90–0.92. Overall, the findings underscore the critical importance of internal component placement in improving natural cooling performance, and further suggest that the most efficient thermal behavior is achieved when the cylinder and heat source are positioned within 0.2 < Y < 0.4, offering practical guidance for optimizing the thermal design of triangular enclosures.

• Periodical: Advanced Engineering Forum (Volume 58)
• Pages: 69-80
• DOI: https://doi.org/10.4028/p-J5vgA5
• Online since: February 2026
• Authors: Farah Ibrahim Abdalsalam*, Ruslan Sabah Abdulrahman, Tahseen A. Jabbar, Safaa Hameed Faisal
• Keywords: Natural Convection, Nusselt Number, Rayleigh Number, Triangular Cavity

References

[1] H. Laouira, F. Mebarek‐Oudina, A.K. Hussein, L. Kolsi, A. Merah, O. Younis, Heat transfer inside a horizontal channel with an open trapezoidal enclosure subjected to a heat source of different lengths, Heat Transfer—Asian Research 49 (2020) 406–423.

DOI: 10.1002/htj.21618

[2] S. Unger, M. Beyer, H. Pietruske, L. Szalinski, U. Hampel, Natural convection heat transfer performance of additively manufactured tube bundle heat exchangers with novel fin design, Heat Mass Transfer 57 (2021) 1193–1203.

DOI: 10.1007/s00231-020-03014-5

[3] R. Azzouz, M.B.B. Hamida, Thermal analysis of a double-wall trapezoidal enclosure filled with nanofluid: effects of the hot wall position and nanoparticles volume fraction, Processes 11 (2023) 2444.

[4] H. Laidoudi, Numerical study of natural convection inside an inclined triangular enclosure with localized heating from below, Acta Mechanica Malaysia 3 (2020) 24–28.

[5] J.S. Yang, J.K. Min, C. Yang, K. Jung, Conjugate heat transfer analysis in a trapezoidal enclosure with a horizontal heat source using an immersed boundary-lattice Boltzmann method, Case Studies in Thermal Engineering 45 (2023) 102971.

[6] G. Nammi, D.K. Deka, S. Pati, L. Baranyi, Combined effects of enclosure inclination and heater location on mixed convection in a trapezoidal enclosure with heat generation using nanofluid, Case Studies in Thermal Engineering 30 (2022) 101733.

DOI: 10.1016/j.csite.2021.101733

[7] A.A. Mohammed, A.A. Mohammed, S.V. Channapattanac, Natural convection heat transfer inside trapezoidal enclosure using Cu-water nanofluid with heat source at various positions, Al-Nahrain Journal for Engineering Sciences 26 (2023) 175–185.

DOI: 10.29194/njes.26030175

[8] K.B. Sahu, R.K. Singh, Analysis of heat transfer and flow due to natural convection in air around heated triangular cylinders of different sizes inside a square enclosure, Procedia Eng. 90 (2014) 550.

DOI: 10.1016/j.proeng.2014.11.771

[9] M.S. Aghighi, H. Masoumi, A. Farsi, Numerical simulation of heat transfer and entropy generation in a trapezoidal enclosure with sinusoidal temperature wall using nanofluid, Applications in Engineering Science 19 (2024) 100186.

DOI: 10.1016/j.apples.2024.100186

[10] R.M. Qasim, T.A. Jabbar, S.H. Faisal, Numerical simulation of natural convection in a trapezoidal enclosure with inner rotating cylinder and magnetic field, Scientific Review Engineering and Environmental Sciences 32 (2023) 135–154.

[11] R.M. Qasim, T.A. Jabbar, Natural convection in a trapezoidal enclosure with different heater positions and inclination angles using Al₂O₃-water nanofluid, INCAS Bulletin 13 (2021) 123–139.

[12] R.S. Abdulrahman, F.A. Ibrahim, S.H. Faisel, Numerical analysis of natural convection heat transfer in a trapezoidal enclosure using water-based nanofluid, International Journal of Heat and Technology 38 (2020) 925–932.

DOI: 10.18280/ijht.380419

[13] G.W. Lee, H.J. Kim, D.K. Kim, Natural convection in a trapezoidal enclosure heated from the bottom using a nanofluid, Energies 11 (2018) 836.

[14] R.A. Mahmood, A.K. Ibrahim, A.G.M. Kamilxy, R.I. Saeed, Numerical investigation of heat transfer in a trapezoidal enclosure using water-based nanofluid with different heat source positions, AIP Conference Proceedings 2830 (2023) 070018.

[15] J.T. Cieśliński, S. Smolen, D. Sawicka, Natural convection in trapezoidal enclosures filled with nanofluid: experimental and numerical study, Energies 14 (2021) 559.

[16] T.L. Bergman, A.S. Lavine, F.P. Incropera, D.P. DeWitt, Introduction to Heat Transfer, sixth ed., John Wiley & Sons, Hoboken, 2011.
