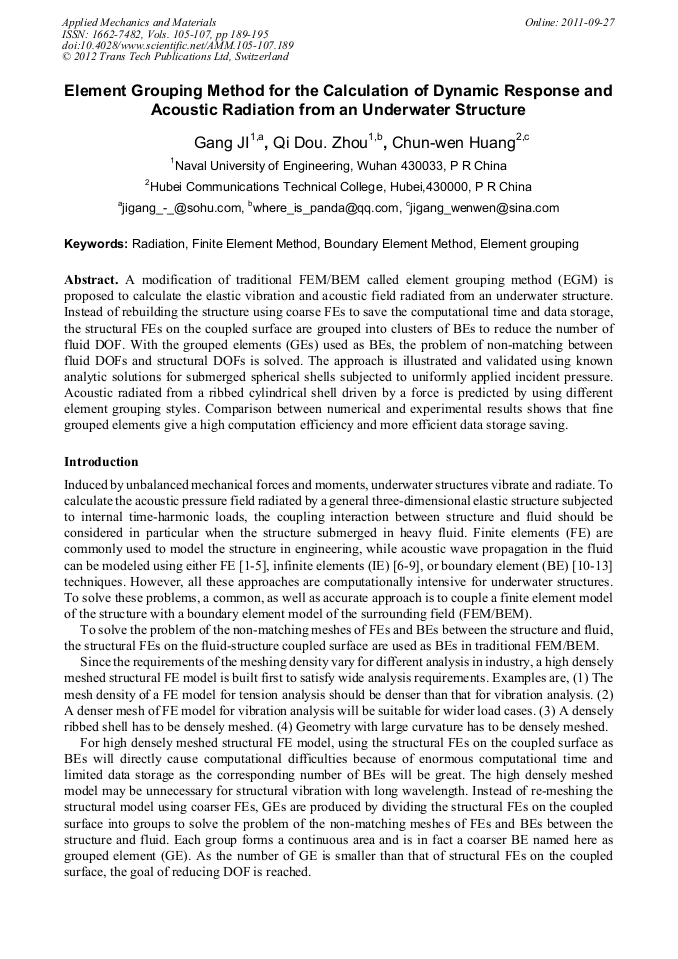

Element Grouping Method for the Calculation of Dynamic Response and Acoustic Radiation from an Underwater Structure

Abstract:

A modification of traditional FEM/BEM called element grouping method (EGM) is proposed to calculate the elastic vibration and acoustic field radiated from an underwater structure. Instead of rebuilding the structure using coarse FEs to save the computational time and data storage, the structural FEs on the coupled surface are grouped into clusters of BEs to reduce the number of fluid DOF. With the grouped elements (GEs) used as BEs, the problem of non-matching between fluid DOFs and structural DOFs is solved. The approach is illustrated and validated using known analytic solutions for submerged spherical shells subjected to uniformly applied incident pressure. Acoustic radiated from a ribbed cylindrical shell driven by a force is predicted by using different element grouping styles. Comparison between numerical and experimental results shows that fine grouped elements give a high computation efficiency and more efficient data storage saving.

• Periodical: Applied Mechanics and Materials (Volumes 105-107)
• Pages: 189-195
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.105-107.189
• Online since: September 2011
• Authors: Gang Ji, Qi Dou Zhou, Chun Wen Huang
• Keywords: Boundary Element Method (BEM), Element Grouping, Finite Element Method (FEM), Radiation

References

[1] L. Kiefling and G. C. Feng: AIAA Journal, 14 (1976), p.199.

[2] O. C. Zienkiewicz and P. Bettess: International Journal for Numerical Methods in Engineering, 13 (1978), p.1.

[3] H. C. Chen and R. L. Taylor: International Journal for Numerical Methods in Engineering, 29 (1981), p.683.

[4] G. C. Everstine: Journal of Sound Vibration, 79 (1981), p.157.

[5] G. C. Everstine: Int. J. Num. Meth. Eng, 17 (1981), p.471.

[6] P. Bettess: International Journal for Numercial Methods in Engineering, 11 (1977), p.53.

[7] O. C. Zienkiewicz, K. Bando, P. Bettess and T. C. Chiam: International Journal for Numerical Methods in Engineering, 21 (1985), p.1229.

[8] E. T. Moyer Jr.: Communications in Applied Numerical Methods, 8 (1992), p.27.

[9] R. J. Astley: International Journal for Numerical Methods in Engineering, 49 (2000), p.951.

[10] L. H. Chen and D. G. Schweikert: Journal of the Acoustical Society of America, 35 (1963), p.1626.

[11] Q. Zhou and P. F. Joseph: Journal of Sound and Vibration, 283 (2005), p.853

[12] G. C. Everstine and F. M. Henderson: Journal of the Acoustical Society of America, 87 (1990), p.1938.

[13] G. C. Everstine: Fifteenth NASTRAN Users' Colloquium (Washington, DC., 1988), NASA CP-2505, p.138.
