Research of Aerodynamic Performance of HP-Turbine with Coolant Injections for Variable Cycle Engine

Abstract:

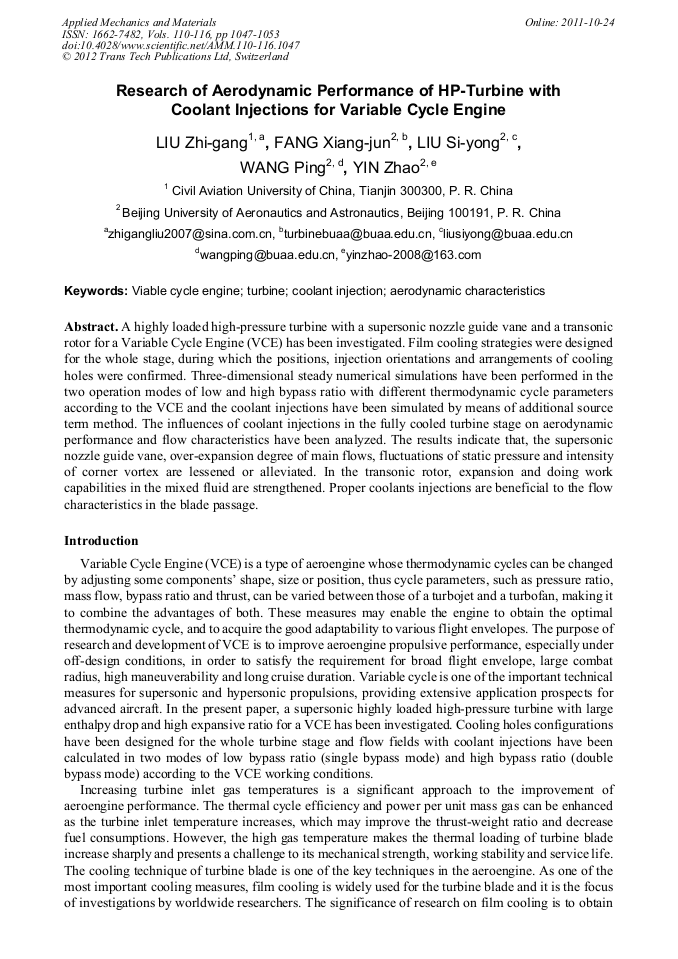

Article Preview

A highly loaded high-pressure turbine with a supersonic nozzle guide vane and a transonic rotor for a Variable Cycle Engine (VCE) has been investigated. Film cooling strategies were designed for the whole stage, during which the positions, injection orientations and arrangements of cooling holes were confirmed. Three-dimensional steady numerical simulations have been performed in the two operation modes of low and high bypass ratio with different thermodynamic cycle parameters according to the VCE and the coolant injections have been simulated by means of additional source term method. The influences of coolant injections in the fully cooled turbine stage on aerodynamic performance and flow characteristics have been analyzed. The results indicate that, the supersonic nozzle guide vane, over-expansion degree of main flows, fluctuations of static pressure and intensity of corner vortex are lessened or alleviated. In the transonic rotor, expansion and doing work capabilities in the mixed fluid are strengthened. Proper coolants injections are beneficial to the flow characteristics in the blade passage.

Info:

Periodical:

Edited by:

Wu Fan

Pages:

1047-1053

DOI:

10.4028/www.scientific.net/AMM.110-116.1047

Citation:

Z. G. Liu et al., "Research of Aerodynamic Performance of HP-Turbine with Coolant Injections for Variable Cycle Engine", Applied Mechanics and Materials, Vols. 110-116, pp. 1047-1053, 2012

Online since:

October 2011

Export:

Price:

$35.00

[1] James Edward Johnson, Hamilton. Variable cycle gas turbine engines [P]. Appl. No. 583056.

[2] Goldstein R.J. Film cooling [J]. Advances in Heat transfer. 1971. Vol 7: 321-379.

[3] Christian Saumweber, Achmed Schulz. Free-stream turbulence effects on film cooling with shaped holes [J]. ASME. 2002-GT-30170.

DOI: 10.1115/gt2002-30170

[4] N. Sundaram. Film-cooling flow fields with trenched holes on an endwall [J]. ASME-04-1007.

[5] Neil W. Foster, Desmond Lampard. Effects of density and velocity ratio on discrete hole film Cooling [J]. AIAA Journal. 1975. Vol. 13: 1112-1114.

DOI: 10.2514/3.6960

[6] J D Heidmann, D L Rigby. A three-dimensional coupled internal/external simulation of a film-cooled turbine vane [J]. ASME. 99-GT-186.

DOI: 10.1115/1.555450

[7] ZHANG Man, Qiao Wei-yang. Numerical simulation of the aerodynamics performance of turbine with coolant injection [J]. Acta Aeronautica et Astronautica Sinica. 2006. 27(6): 998-1004.

[8] Damerow W P, Murtaugh J C. Experiments and analytical investigation of the coolant flow characteristics in cooled turbine airfoils [R]. NASA CR-1992-120883.

[9] Sellers JP. Gaseous film cooling with multiple injection stations [J]. AIAA Journal. 1963. 1(9): 2154-2156.

DOI: 10.2514/3.2014

[10] Scott D. Hunter. Source term modeling of end wall cavity flow effects on gas path aerodynamics in an axial flow turbine [D]. University of Cincinnati. (1998).

[11] Scott D. Hunter. End wall cavity flow effects on gas path aerodynamics in an axial flow turbine: Part II - source term model development [J]. ASME. 2000-GT-0513.

DOI: 10.1115/2000-gt-0513

[12] Hildebrandt. Unsteady 3D Navier-Stokes calculation of a film-cooled turbine stage: Part 1-cooling flow modeling via source term approach [J].

[13] Hildebrandt. Unsteady 3D Navier-Stokes calculation of a film-cooled turbine stage: Part 2-cooling flow modeling via discrete cooling holes [J].

DOI: 10.1007/1-4020-4605-7_39

[14] Spalart, Allmaras. A one-equation turbulence model for aerodynamic flows. AIAA-92-0439.

[15] LIU Zhi-gang, FANG Xiang-jun. Design and analysis of HP-turbine for variable cycle engine [J]. ASME. GT2010-22449.

[16] G. Wilfert, L. Fottner. The aerodynamic mixing effect of discrete cooling jets with mainstream flow on a highly loaded turbine blade [J]. ASME. 94-GT-235.

DOI: 10.1115/94-gt-235
