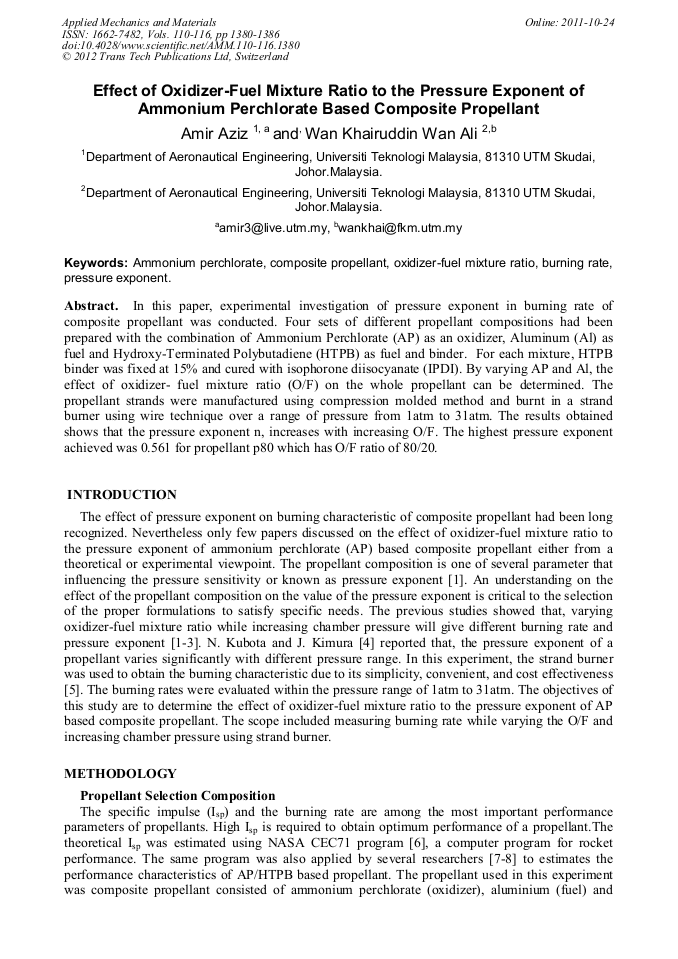

Effect of Oxidizer-Fuel Mixture Ratio to the Pressure Exponent of Ammonium Perchlorate Based Composite Propellant

Abstract:

In this paper, experimental investigation of pressure exponent in burning rate of composite propellant was conducted. Four sets of different propellant compositions had been prepared with the combination of Ammonium Perchlorate (AP) as an oxidizer, Aluminum (Al) as fuel and Hydroxy-Terminated Polybutadiene (HTPB) as fuel and binder. For each mixture, HTPB binder was fixed at 15% and cured with isophorone diisocyanate (IPDI). By varying AP and Al, the effect of oxidizer-fuel mixture ratio (O/F) on the whole propellant can be determined. The propellant strands were manufactured using compression molded method and burnt in a strand burner using wire technique over a range of pressure from 1atm to 31atm. The results obtained shows that the pressure exponent n, increases with increasing O/F. The highest pressure exponent achieved was 0.561 for propellant p80 which has O/F ratio of 80/20.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 1380-1386
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.1380
• Online since: October 2011
• Authors: Amir Aziz, Wan Khairuddin bin Wan Ali
• Keywords: Ammonium Perchlorate, Burning Rate, Composite Propellant, Oxidizer-Fuel Mixture Ratio, Pressure Exponent

References

[1] M. Milos, and V. Bozic, Small Motor Measurement Method for Determining Burning Rate of Solid Rocket Propellants, 34th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, July 1998, AIAA-98-3390.

DOI: 10.2514/6.1998-3390

[2] George P. Sutton, Rocket Propulsion Element, 6th ed., John Willy & Sons, MIT, (1992).

[3] Rizalman Mamat, Ciri-Ciri Propelan Berasaskan Kalium, Msc Thesis, Universiti Teknologi Malaysia, (2002).

[4] N. Kubota and J . Kimura, Oscillatory Burning of High Pressure Exponent Double-Base Propellants, AIAA/SAE 12th Propulsion Conference, July 1976, AIAA-76-668.

DOI: 10.2514/6.1976-668

[5] Stephen Bluestone, Stephen D. Heister, Steven F. Son, and Benjamin L. Austin, Jr., Development of Composite Solid Propellants Based on Dicyclopentadiene Binder, 46th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, July 2010, AIAA 2010-6589.

DOI: 10.2514/6.2010-6589

[6] Gordon, S., and McBride, B. J., Computer Program for Calculation of Complex Chemical Equilibrium Compositions, Rocket Performance, Incident and Reflected Shocks, and Chapman-Jouguet Detonations, NASA SP-273, (1971).

[7] S. Krishnan and Rajesh, K. K., Erosive Burning of Ammonium Perchlorate/Hydroxyl-Terminated Polybutadiene Propellants under Supersonic Crossflows, 37th AIAA/ASME/SAE/ASEE Joint Propulsion Committee Conference and Exhibit, July 2001, AIAA 2001-3580.

DOI: 10.2514/6.2001-3580

[8] S. Hayakawa, M. Tanaka and C. Nakao, An Effect of Oxidizer Particle Size on Combustion Stability in Composite Propellants, 36th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, July 2000, AIAA 2000-3700.

DOI: 10.2514/6.2000-3700

[9] T. Godai and M. Shimizu, Pressure Exponent of Controllable Solid Rocket Propellants, AIAA/SAE 8th Joint Propulsion Specialist Conference, Dec. 1972, AIAA-72-1135.

DOI: 10.2514/6.1972-1135

[10] M. Stephens, T. Sammet, R. Carro, A. LePage, D. Reid, S. Seal, and E. Petersen, New Additives for Modifying the Burn Rate of Composite Solid Propellants, 42nd AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, July 2006, AIAA 2006-4948.

DOI: 10.2514/6.2006-4948

[11] Rodolphe Carro, Matthew Stephens, Jason Arvanetes, Andreiev Powell, and Eric Petersen, High-Pressure Testing of Composite Solid Propellant Mixtures: Burner Facility Characterization, 41st AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, July 2005, AIAA 2005-3617.

DOI: 10.2514/6.2005-3617

[12] J. A. Steinz, P. L. Stang, and M. Surmerfield, The Burning Mechanism Of Ammonium Perchlorate-Based Composite Solid Propellants, Princeton University Department of Aerospace and Mechanical Sciences, (1969).

[13] Fry, Ronald S., Solid Propellant Test Motor Scaling, CPTR 73, (2001).

[14] K. Jayaraman, K.V. Anand, S.R. Chakravarthy and R. Sarathi, Effect of nano-aluminium in plateau-burning and catalyzed composite solid propellant combustion, Combustion and Flame, vol. 156, May 2009, pp.1662-1673.

DOI: 10.1016/j.combustflame.2009.03.014

[15] Makoto Kohga and Hirotatsu Tsuzuki, Burning Characteristics of Composite Propellant Using Ammonium Perchlorate Modified by Ethylene Glycol, 45th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, August 2009, AIAA 2009-4893.

DOI: 10.2514/6.2009-4893
